Ozgul LW4 EU FIX

不含增值稅價格

1635775

48,000 EUR
Compnay LOGO
Images33

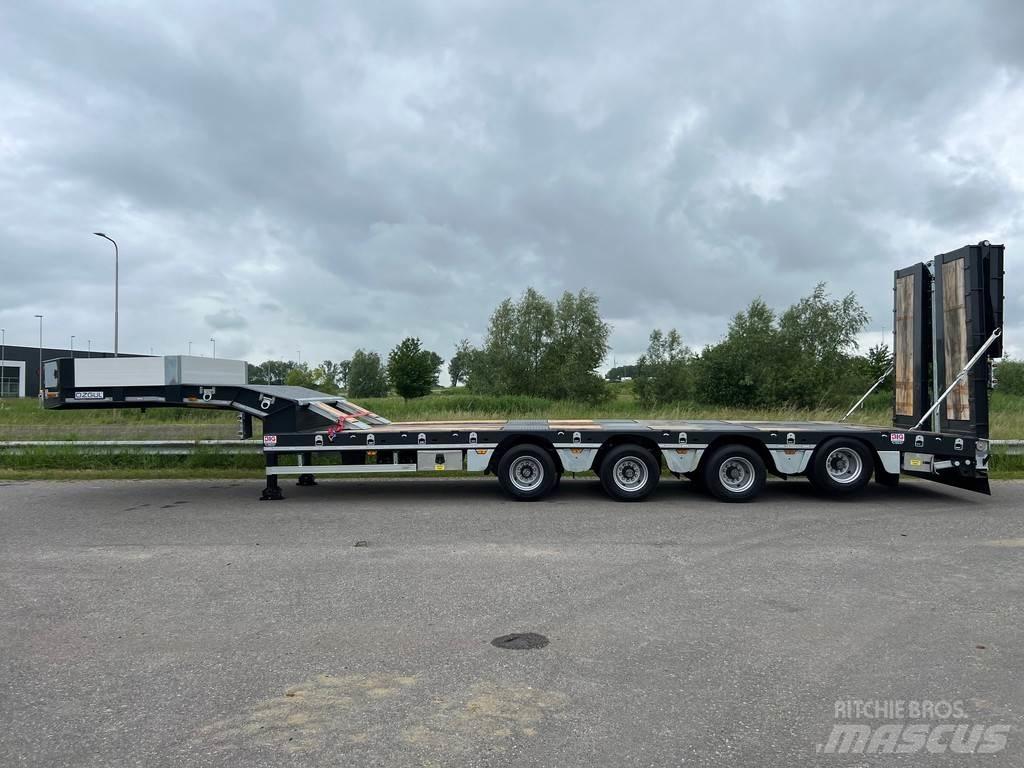

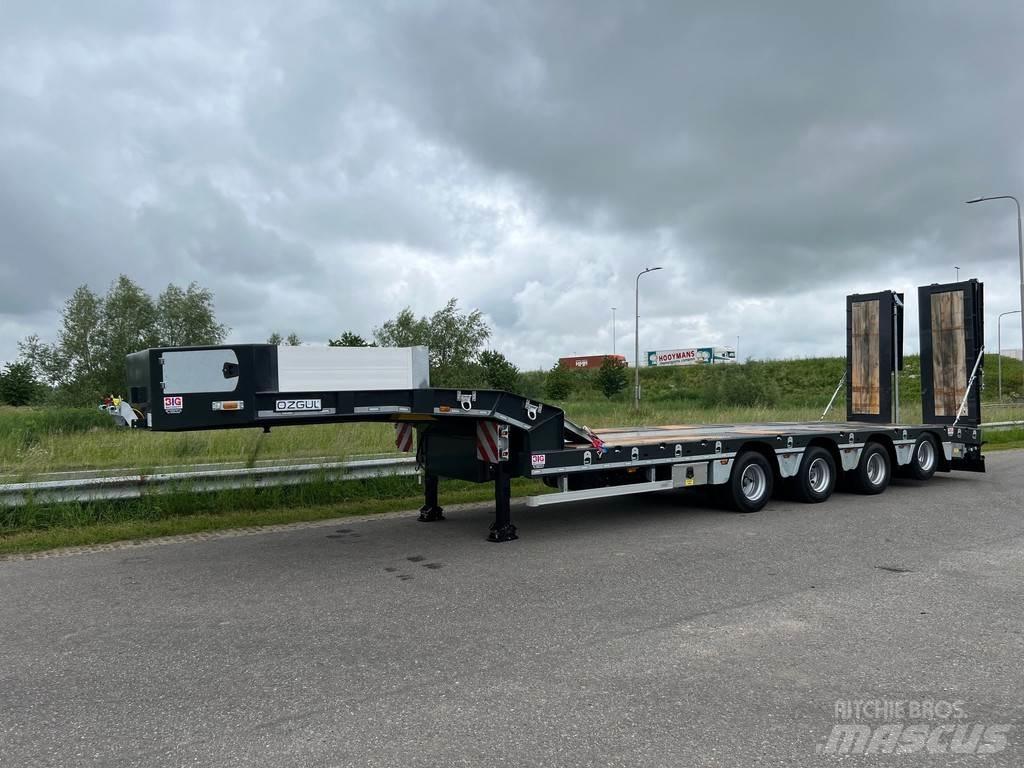

Ozgul LW4 EU FIX 地架式半拖車
Ozgul LW4 EU FIX 地架式半拖車
Ozgul LW4 EU FIX 地架式半拖車
Favorite我的最愛
share分享
Save search儲存搜尋
列印

INFO

產品類別
地架式半拖車
品牌/ 型號
Ozgul LW4 EU FIX
出廠年份
2024
額外選項
全新/未使用過
機械所在位置（請填城市名，例如台北..等）
BIG 1 BIG Machinery B.V. (Schiemerik 1)
國家
荷蘭
Mascus產品ID碼
CE404814

定價

幣別選擇
TWD
不含增值稅價格
1635775

詳細資料

註冊年份
2024
內部庫存號
00032307
製造商/車體
OZGUL
生產國
土耳其
附屬裝置
EN: ABS, EBS, Lifting axle, Spare tyre NL: ABS, EBS, Liftas, Reserveband
其他資料
TECHNICAL SPECIFICATIONS MASSES & DIMENSIONS -Gross Vehicle Weight (kg) : 70.000 -Loading Platform Length (mm) : 9.000 -Weight of Axle Group (kg) : 48.000 -Total Lenght (mm) : 13.550 -Kingpin Capacity (kg) :22.000 -Total Width (mm) : 2.550 -Curb Weight (kg) : 13.000 -Loading Platform Height (mm) : 920 -Pay Load (kg) : 57.000 -Height of 5.th Wheel (mm) : 1.310 CONSTRUCTIONS -Base Chassis -Heavy duty and extra durability designed BOX type chassis All welded S355 steel chassis -Outer frame is UPE 240 profile -Welding (Chassis) : Automatic ARC submerged -Welding (Superstructure) : Automatic robot welding -Axle (Type) : Özkoç Trax or Osman Koç Turkish Brand -Drum brakes 4 x 12 Ton axles -Axle Lifting : 1st axle automatic 4th axle manuel lifting -Suspension (Type) : Air Suspension -Steering Axles : - -King pin (Type) : 1 position with 1x coupling-pen 2” -Tires : 16+1 Units, 245 / 70 R 17.5 -Rims : 16+1 Units, 6.75 x 17.5 steel rims -Landing Gear : Mechanical operated by one side, two speed -Brake System : Wabco EBS (4S/3M) with RSS according to EC Directive with ADR Adaptation -Brake Chamber -2 axles with 4 units emergency brake chambers. -2 axle with 4 units service brake chambers. Electric System -24V, 2x7 + 1x15 pin sockets, according to SAE standard with ADR Adaptation SABA Brand -2 x Rear Stop Lights. - 4 x Side LED Lights -2 x White LED Lights - 2 x Front LED Lights -2 x Registration Plate Lights - 2 x rotating Lights Floor -Above tyres and edges of platform are covered chequered sheet and hard wood -The middle surface is covered by flat sheet steel Rear Loading Ramps -Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic function with cable -push – button for remote control -Folding type rear ramps length 2500 mm +1500 mm width 900 mm -Rear ramps are sliding internal and external hydraulic -Short steel ramps behind of neck. Paint Application -Sand Blasting, Chemical cleaning, HYZINC covering, Epoxy covering and 2 coats of acrylic paint TECHNICAL SPECIFICATIONS ACCESSORIES -2 x 8 pcs of heavy duty lashing rings mounted on the outer frame mushroom type -4 x Certificated Expray mud flaps. -1 x Plastic water tank -2 x Wheel chocks and holders -2 x 8 Galvanized sides extensions brackets 250 mm + 250 mm -2 x Side Protections, Aluminium -1 x Tool box. -1 x spare Wheel carrier with 1 tire(on the gooseneck) -2 x Manual support Legs at the rear. -2 x Reflective tape and reflector sign at the rear and sides. -2 x Side extensions reflector -Steel front panel(height:400mm) -Aluminum side panels on gooseneck section(height:400mm) -1 plaque places on rear ramps or bumper = More information = Empty weight: 13.000 kg CE mark: yes COC available: Yes顯示更多
