CRS NI Trommel 1620

不含增值稅價格

Compnay LOGO
Images11
CRS NI Trommel 1620 廢棄物選別設備
CRS NI Trommel 1620 廢棄物選別設備
CRS NI Trommel 1620 廢棄物選別設備
Favorite我的最愛
share分享
Save search儲存搜尋
列印

INFO

產品類別
廢棄物選別設備
品牌/ 型號
CRS NI Trommel 1620
出廠年份
2019
使用時數
3100 h
機械所在位置（請填城市名，例如台北..等）
Llangyfelach
國家
英國
Mascus產品ID碼
F535BDF0

定價

幣別選擇

詳細資料

內部庫存號
SH2023/06
文件
SH2023-06-CRS-NI-Static-Trommel-Line-Recycling-Plant-Machinery-Ltd.pdf
其他資料

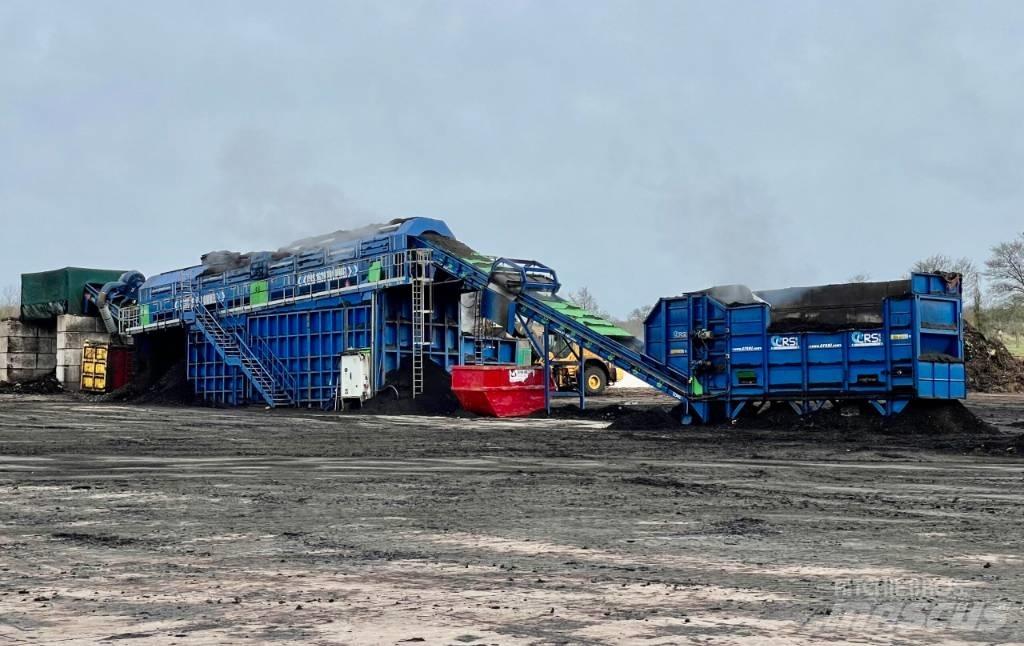

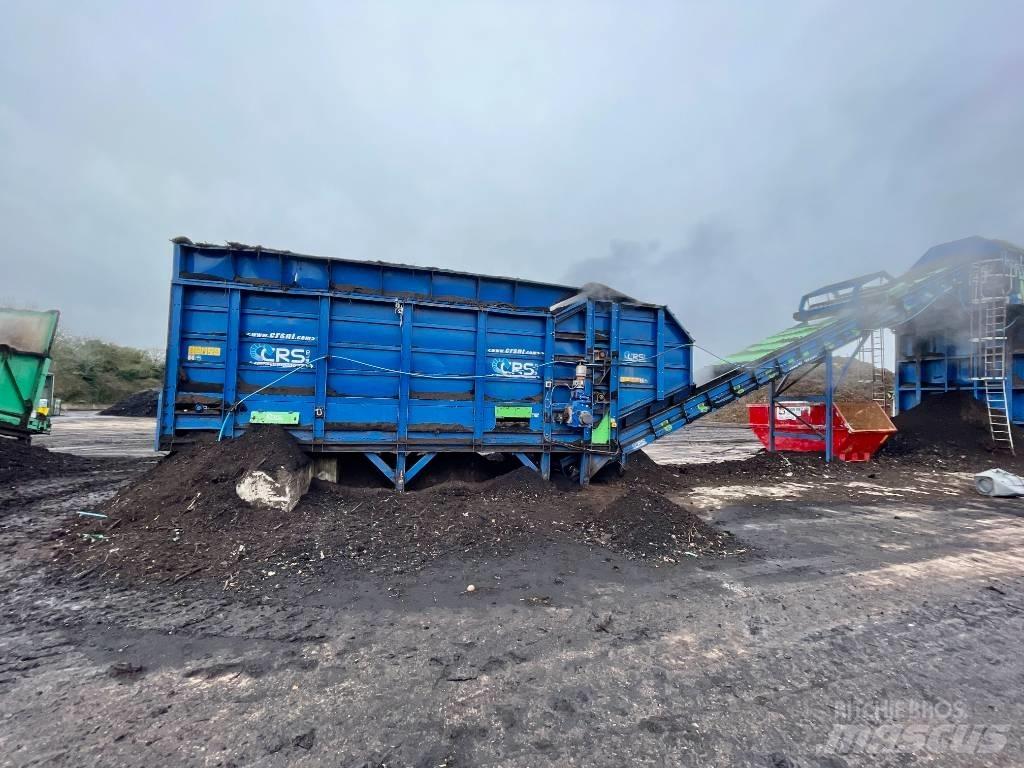

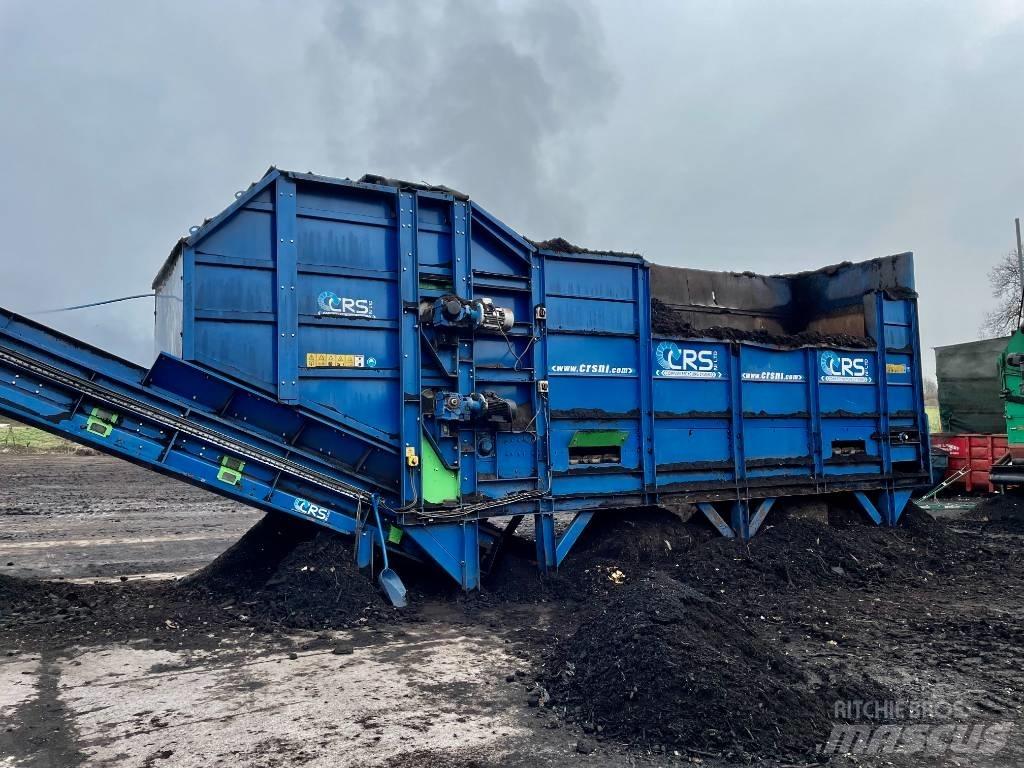

Comprising of following: Feed Hopper 1400 mm wide steel slatted conveyor with Nord 3 kw Electric motor drive. Twin dosing drums 5.5kw Electric motor drive each. Dimensions: 11 m long x 3 m wide x 4.5 m high. Trommel Feed Conveyor 15.5 m long x 1200 mm wide belt. Nord 7.5 kw Electric motor drive. Conveyor Tek 1200 mm wide Overband Magnet with 1.5Kw Electric motor drive. Trommel Screen 1620 Comprising of two drums linked together total length of 19.4 m, diameter 2 m. Drum No1: Fitted with 15 mm square punch plates. Driven by all 4 wheels 5.5kw Electric motor drive each. Drum No2: Fitted with 15 mm & 25 mm square punch plates. Driven by 2 wheels on discharge end only 5.5kw Electric motor drive each. Mounted on supporting structure complete with including access platform & stairs. Dimensions: 2.7 m wide x 2.9 m high. Reject Out feed Conveyor. 8.5 m long x 1200 mm wide belt. Nord 5.5 kw Electric motor drive. Air Vacuum system over conveyor belt with 18.5 kw Electric motor drive fan unit. Electrical control panel The system is still currently operating price excludes dismantling and removal from site顯示更多

Recycling Plant & Machinery

Bryntywood SA5 7LP Llangyfelach Swansea 英國
