BIK HL 58T

起重機, 側門, 立體音響裝置, 定速控制, 冷氣設備, 安全氣囊

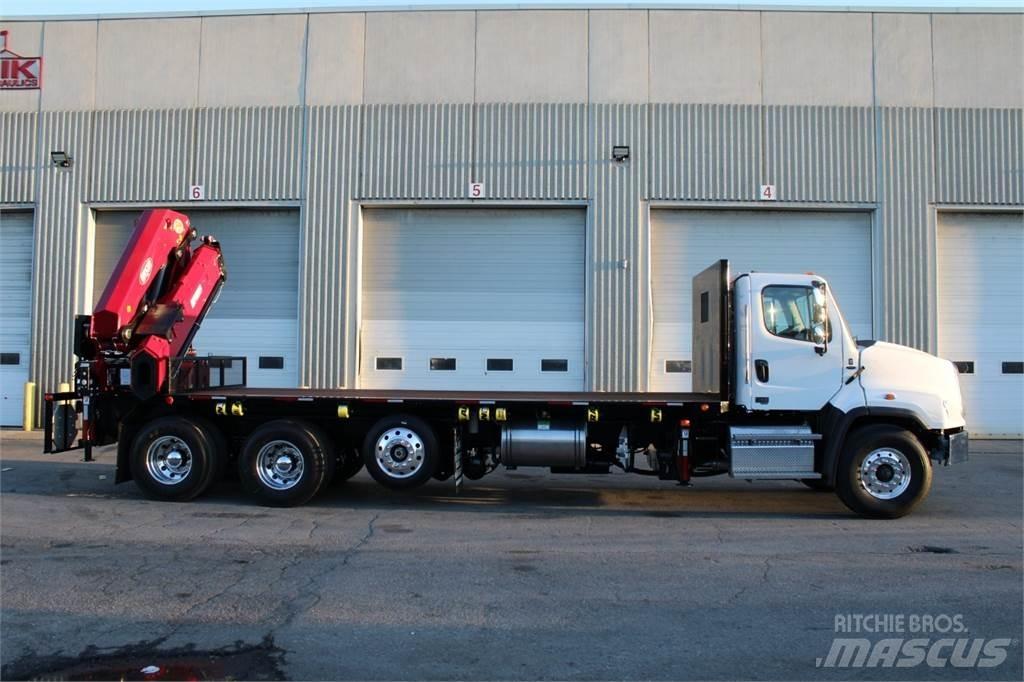

Boom Details New – BIK “Heavy Lift” Series HL 58T PM 58 ton/m – Folding Hydraulic Knuckle Boom – 3 hyd extensions to 32’ Horizontal reach Horizontal Capacity 28,200 lbs ... 14′ 20,000 lbs ... 20′ 15,200 lbs ...25′ 12,100 lbs ... 32′ 3-Independent Extensions, PM connecting rods at First Boom and Knuckle, Continuous Rotation and Dual Planetary Gear  Rotation Double pilot operated on slewing and pilot operated check valves on all cylinders Hydraulic Extra Wide Main outriggers  at pedestal – 28’ – 7” span Hydraulic Oil Cooler, high pressure return filter and min. 92-gallon oil tank for boom DANFOSS  Proportional Control Valve & SCANRECO  Proportional Radio Remote Control Simplified Hydraulic Overload System allowing maximized uptime crane and easy maintenance Scanreco Radio Remote  Control includes: 2-batteries, in-cab charger, back-up cord, Crane Painted PM Blue, load chart in FT. & LBS. Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components Load Tested & Installed at end of frame, with integral sub-frame to meet or exceed all CMVSS Standards Deck Details New – 21.5′ Long x 102″ Hardwood Deck Installed on Truck, with 54” of main sill overhang for Sub-Frame of Knuckle Boom Hardwood Deck surface 66” Headboard Reverse Rail sliding track on passenger side 8 winches and straps (30’) with required Conspicuity and Reflectors. All steel painted Gloss Black. Truck Details New – 2024 Freightliner 114SD 4- Axle Diesel Truck 70,000 lb GVWR Truck Cab White Colour Diesel 470 hp,  Automated  trans 20,000lb fronts with 425/65R22.5 Front Floatation tires on   Alum rims 46,000lb Rears on Tuftrac Susp with 11R22.5 tires on Aluminum rims Double frame chassis, 54” spread at tandems Truck  Features Include: Two Stage Engine Brake, Air Cond., AM/FM  stereo, cruise, tilt/tele steer column, power windows/locks, chrome bumper and grill,  power and heated mirrors, engine block heater, painted ext visor, trailer air tow package, rear wheel lock ups, 80 gal alum fuel tank, trailer air tow package, etc. Also Included : (2) pcs – PVC stabilizer pads with holders at rear Program radio remote control for engine stop/start and truck shut off (1) pc – 48” aluminum Storage Boxes installed 36” aluminum storage box installed Options at Extra Cost : 1” drawplate installed at rear with heavy duty pintle hook and trailer hook ups Front Auxilary Stabilizers – Hyd out & Down Type – 21’ Span, Install under frame back of cab Kenworth T-880 instead of Freightliner add
