BIK HL 100T
不含增值稅價格
請向賣家詢價
6
我的最愛
分享
儲存搜尋列印
INFO
產品類別
其他貨車
品牌/ 型號
BIK HL 100T
出廠年份
2025
額外選項
全新/未使用過
機械所在位置（請填城市名，例如台北..等）
Milford, Massachusetts
國家
美國
一般級別
1
2
3
4
5
Mascus產品ID碼
F8EBB198
詳細資料
動力類型
柴油
引擎/發動機 輸出功率
416 kW 千瓦 (565 hp 馬力)
發動機制造商
CUMMINS
變速箱
Eaton Ultrashift Plus Automated 18 spd
其他資料
Boom Details

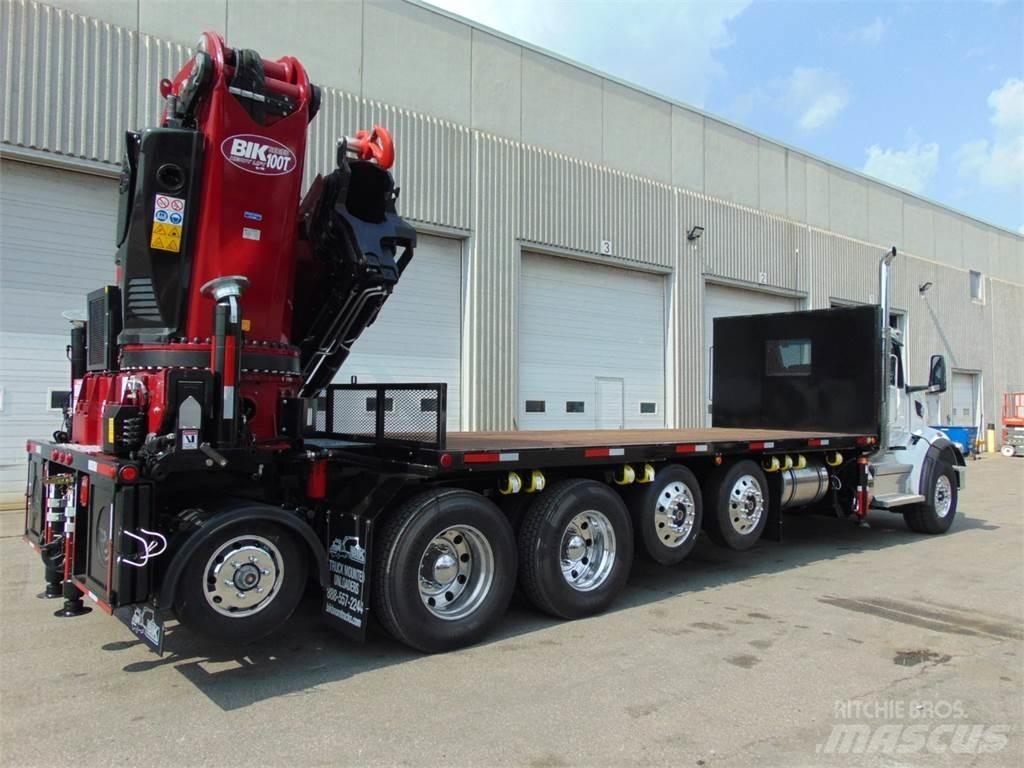

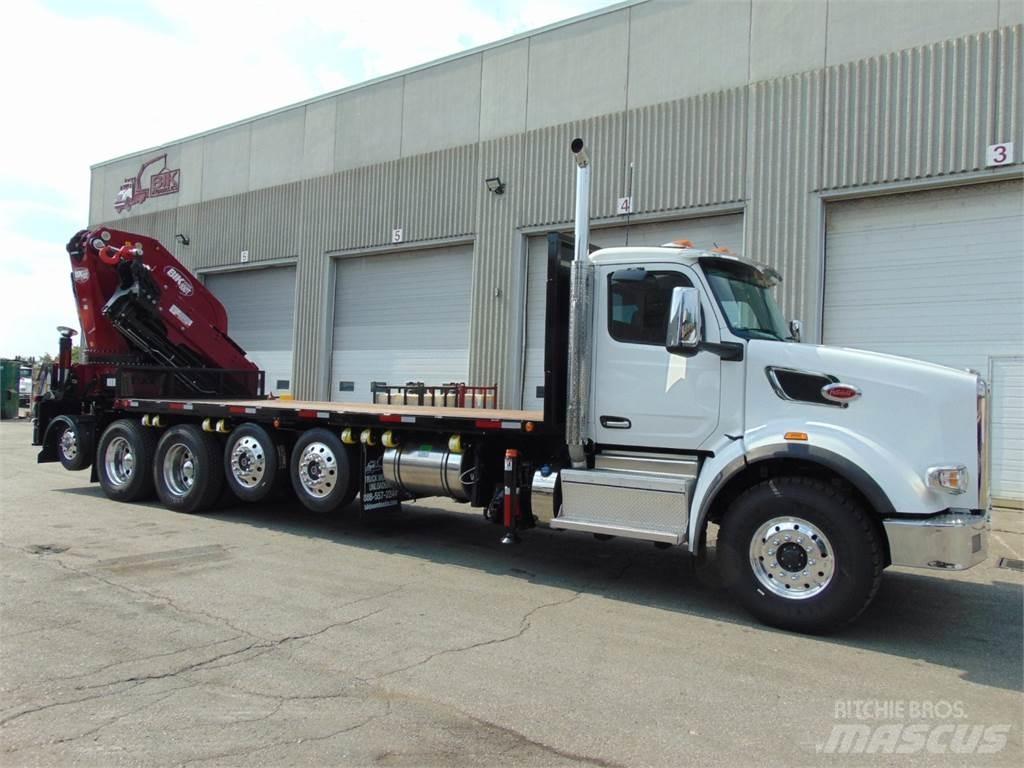

New – BIK “Heavy Lift” Series HL 100T
PM 100024S Knuckle Boom: 4 Hydraulic extentions to 37’ 5’ horizontal reach (49’ vertical)
Horizontal Capacity
42,400 lbs ... 14′
32,100 lbs ... 19′
24,010 lbs ...25’3″
20,600 lbs ... 30’60”
16,250 lbs ... 37’5″
PM Power-Link connections at Main, Knuckle & Jib Cylinders, Dual Planetary Gear Motors & Continuous Boom Rotation
Double pilot operated on slewing and pilot operated check valves on all cylinders
180 degree flip-up Hydraulic Extra Wide Main outriggers at pedestal – 28’ – 7” span
– 360 degree full load chart stability
Hydraulic Oil Cooler, high pressure return filter and min. 100 –gallon
hyd aluminum oil tank with gate valves mounted at front under deck
DANFOSS
Proportional Control Valve on Boom Column & SCANRECO
Proportional Radio Remote Control with back up cord
Radio Remote includes
: 2-batteries, in-cab charger, and back-up cord – 5 level turtle (micro) slow down mode
Simplified Hydraulic Overload System
allowing maximized uptime and ease of maintenance
Crane Painted PM Blue – Certified Painting Quality System – Load Tested and certified
Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components by PM – 24/7 Crane-Tech Support by BIK
Installed END OF FRAME, with integral sub-frame, 3/8” front and centre -½” sheer plating at crane for maximized torsion strength.
Deck Details
New – 22′ Long x 102″ Deck with Wooden Surface
Installed on Truck with 70” of main sill overhang at front for Sub-Frame of Knuckle Boom
Apitong wood surface
60” Headboard ½ smooth steel and ½ expanded metal
Rub rail both sides with pockets with 8-winches and straps
Conspicuity Tape and Reflectors
Headboard and all other steel surfaces primed and painted Gloss black, etc.
Truck Details

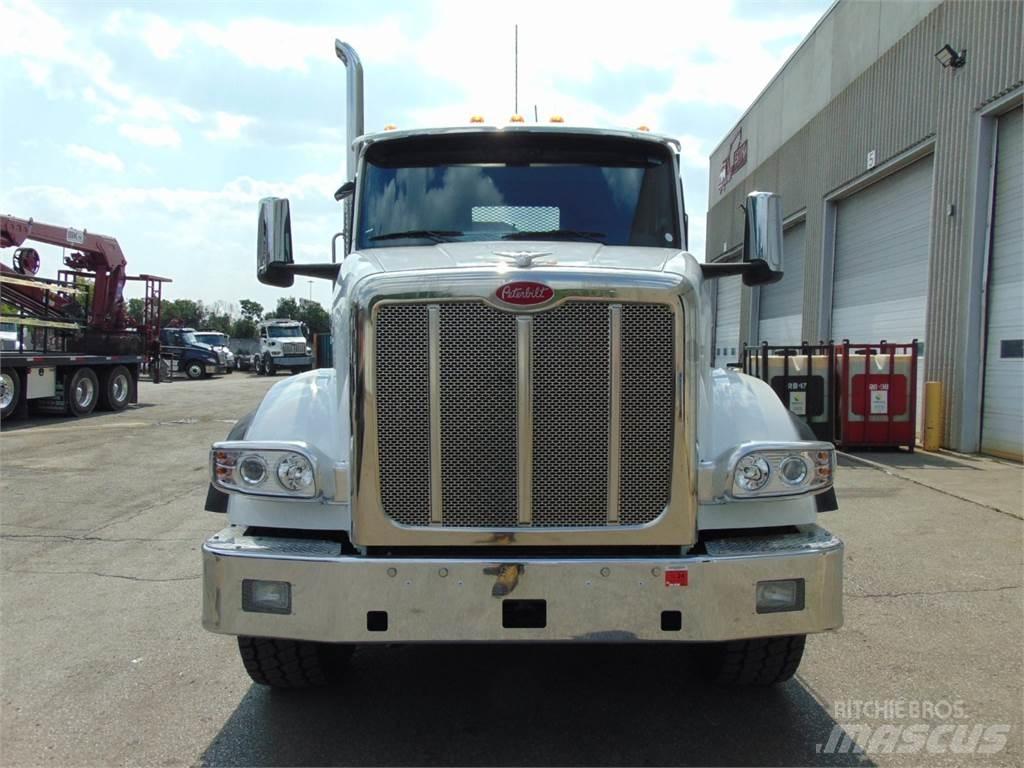

New 2024 Peterbilt 567 6-Axle Truck :
88,000 lb GVWR
Cummins 15L Diesel – 565 HP
Truck cab white, Eaton Ultrashift Plus
Automated 18 spd trans
22,000 LB fronts with 425 / 65R22.5 tires on Aluminum Rims
46,000 LB Rears oon Hendrickson Primax Air- Ride Suspension
(2) x 13,000 lb self steer lift axle installed ahead tandem with Low Profile 22” tires on alum rims
(1) – 9,000 lb tag axle (under boom) with low profile 17: tires/alum rims
Double Frame, Polished ALCOA Aluminium Wheels front and rear, Chrome Exhaust pipe vertical, Chromed Grille & Bumper
Single 100 gallon alum fuel tank.
Loaded with Options including:
A/C, Tilt/Telescopic steering, Top Level Interior, AM/FM/CD player , Jake Brake, air driver’s seat, fixed pass seat, cruise, heated mirrors, exterior S/S sun visor, All-way inter-axle and differential lock-ups, power windows & locks, power mirrors, Air ride cab, full diff locks, trailer air package, etc.
Options Included
:
Auxiliary Extra-Wide hydraulic outriggers 24’ spread front mounted for 360 degree stability at front
1” draw plate at rear of truck frame with Pintle Hook and dual rear up/down stabilizers for 100% rearward stability
Aluminum storage box
Stabilizer pads with holders at rear bumper and at front sides
Options at Extra Cost
:
(2) additional hydraulic extensions to have 6 total hyd extensions to 53’ reach, Handling 9,300 lb ... 53’顯示更多
