Elliott M87R
不含增值稅價格
請向賣家詢價
16
我的最愛
分享
儲存搜尋列印
INFO
產品類別
起重機卡車
品牌/ 型號
Elliott M87R
出廠年份
2025
額外選項
全新/未使用過
機械所在位置（請填城市名，例如台北..等）
Milford, Massachusetts
國家
美國
一般級別
1
2
3
4
5
Mascus產品ID碼
9D88F993
詳細資料
其他資料
Boom Details

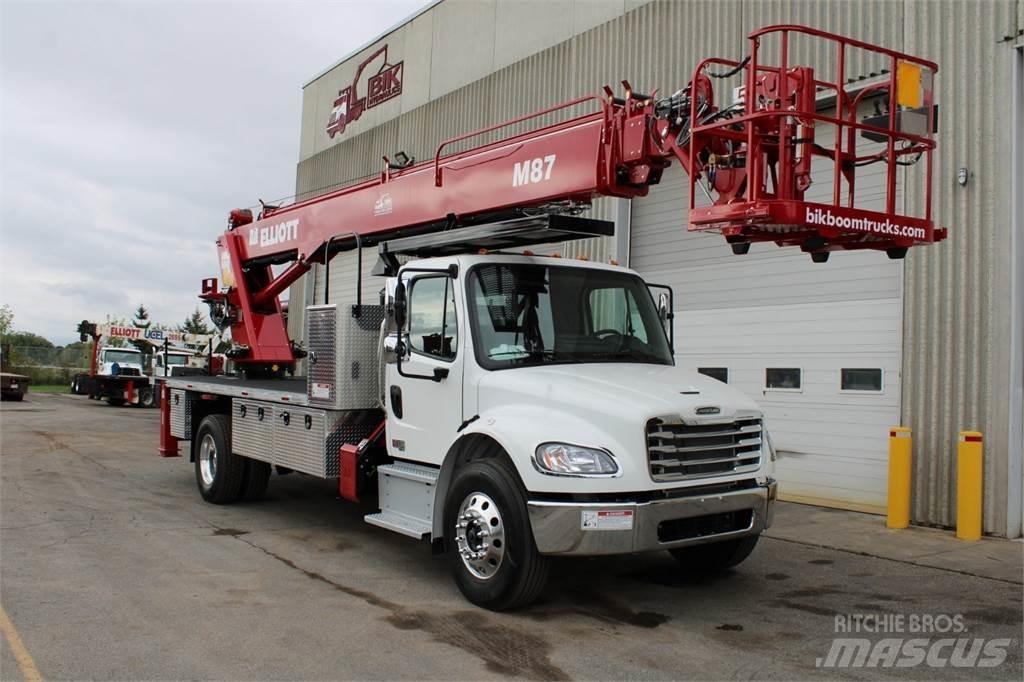

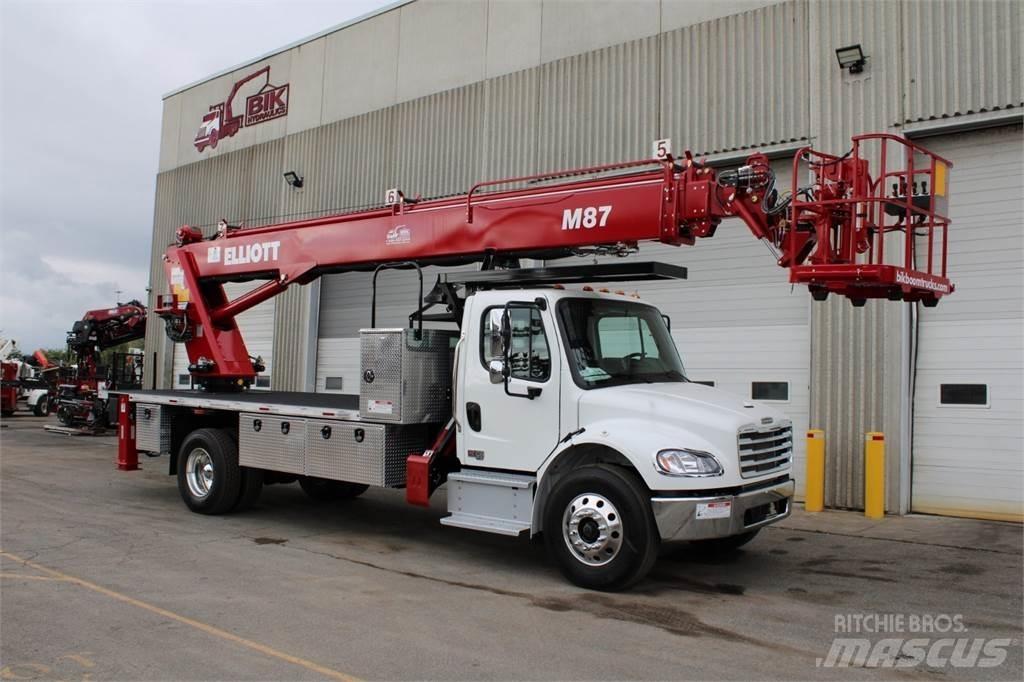

Elliott M-87 R HiReach:
4-section Hydraulic reach to 85’ vertical reach with 85’ working height, 74’ horizontal reach
Installed END OF FRAME by Elliott factory technicians, prepped, primed and painted
New Air Operated PTO (Chelsea), Hour meter, Hydraulic Pump, Supply and Return Lines, Hydraulic tank mounted on truck frame w/ shut-off valve.
Load Tested.
Standard Features include:
Electronic Proportional three stick controls on platform.
Manual ground controls located on side of turret. Remote star/stop from upper and lower controls.
Two exposed cable carriers to boom tip. Hydraulic self levelling and rotating 40” x 60” EZR work platform with remote levelling from platform, platform capacity 500 lbs
One double acting 7” full displacement long stroke boom elevation cylinders provides smooth, stable elevation.
Continuous off set turret rotation with no stops with ball bearing slewing bearing and self locking gear box.
Hydraulic OUT and DOWN “MH” stabilizers at base with a 18’ spread, “A” frame secondary stabilizers at front Load Holding Valves on each cylinder for Safety and Security of Operator and Load
Included Options Are:
Platform mounted jib with hydraulic winch
2,000 lb rated Main Boom Winch (crane winch)
110 V power supply to work platform
Sign forks on platform (2 pcs)
16’ x 96” Aluminum bed, Truck cab windshield guard, steel carrier cover
8’ Aluminum cross box, 24” x 36” tall with doors on each side mounted at front of deck
Truck Details
New – 2025 Freightliner M2-106 Single Axle Tr
uck:
33,000lb GVWR (can be derated to 25,990 GVWR)
Cummins 280 hp Diesel Engine with VGT Engine Exhaust Brake
Allison 2500-RDS Automatic Trans.
Truck cab white
12,000lb front axle
21,000lb rear axle on Spring Susp. with 11R22.5 tires on Polished Aluminum outer rims
Hydraulic brakes

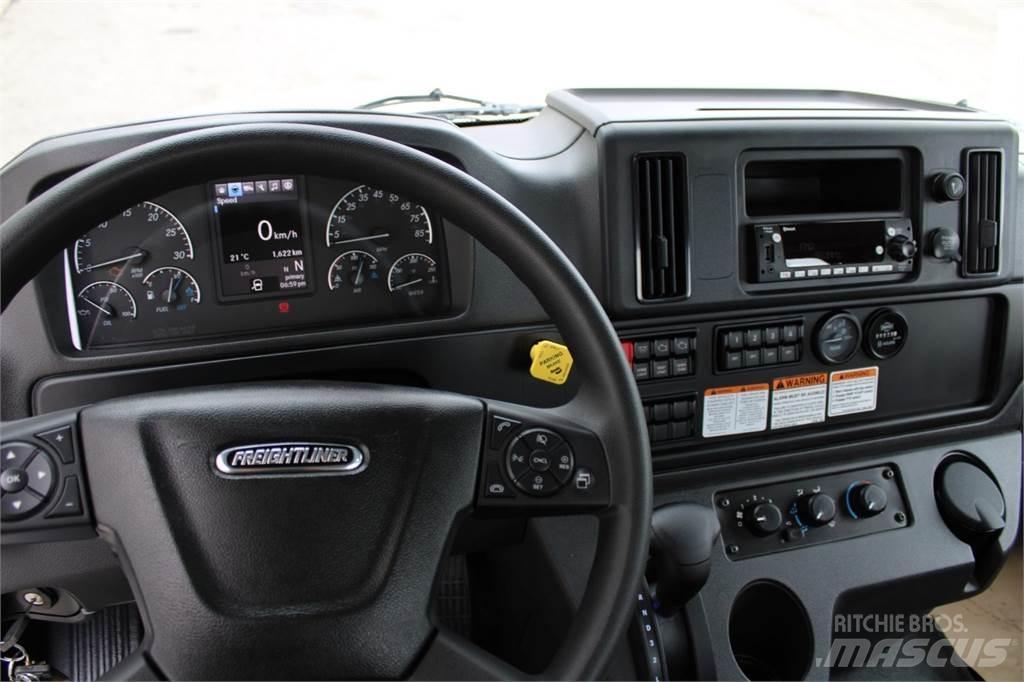

Options Include: Stainless steel sun visor, chrome bumper & grille, Aluminum battery box, Thermal cab insulation package, rear cab and corner cab windows, Air. Cond., am/fm stereo & Bluetooth, tilt steering, cruise control, power windows / locks, bright bezel dash gauges, black/grey color interior, Air Ride Drivers Seat, 2-man passenger bench seat, 70-gal aluminum fuel tank etc.
顯示更多
BIK Boom Trucks - Milford, MA
177 Central St. 01757 Milford Massachusetts 美國
