| 其他資料 | BOOM DETAILS
New – BIK Tree-Care Series TC-106 – PM 65 ton/m Knuckle Boom
6 ext Knuckle Boom w/Detachable 5 ext jib + 1-grapple extn
Including (1) Grapple extention in jib
Boom Capacity of 2,100 lbs ... 106’ Vertical
Reach
Main Boom Horizontal Capacity:
48,500 lb ... 8’ 2”
28,260 lb ... 14’ 5”
15,340 lb ... 25’ 3”
10,000 lb ... 37’
7,210 lb ... 50’ 2”
Jib Horizontal Capacity:
3,850 lb ... 59’ 1”
3,000 lb ...
74’ 6”
2,340 lb ...
81’ 1”
2,100 lb ... 87’,
Grapple extn to
94’
PM Power-Link connections at Main, Knuckle & Jib Cylinders,
Dual Planetary Gear Motors & Continuous Boom RotatioN
5 pcs – Stabilizers for 100%
chart 360 degrees – 180 degree flip-up Hydraulic Extra Wide Main outriggers at pedestal – 28’ – 7” span
Single Front Bumper Stabilizer and rear aux Hyd out & Down type – 21’ span
Two Hyd Oil Coolers
, high pressure return filter and min. 100 –gallon
hyd
aluminum oil tank with gate valves mounted at front under deck
7 – Section DANFOSS
Proportional Control Valve at Top-Seat with Ladder Access – &
SCANRECO
Proportional
Radio Remote Control
Power Tronic
onboard
load & function monitoring system, Digital Load Indicator at top seat & remote
, electric/hyd overload protection
Radio Remote Control includes: 2-batteries, in-cab charger, and back-up cord – 5 level turtle (micro) slow down mode
Installed behind cab, with integral sub-frame, 3/8” front and centre -½” sheer plating at crane for maximized torsion strength
Engineer Stability load tested and certified
BIK tech to familiarize boom and grapple saw operation
at your location and (or) on site for approx. 2 -3 days
Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components

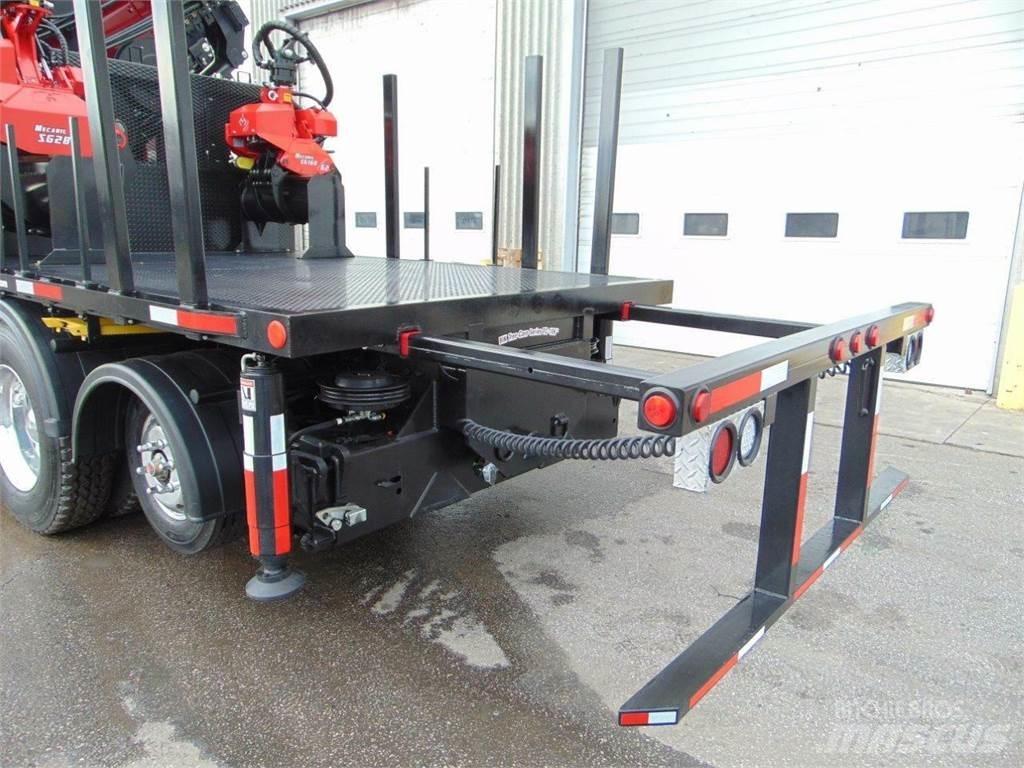

DECK DETAILS
New
– 10’ 8” x 102”
Steel Checker plate Flat Deck
Checker plate steel deck surface
48” head board, sliding winch straps
Rub rail & pockets on side
Dual sided access ladders
Primed & painted gloss black
TRUCK DETAILS

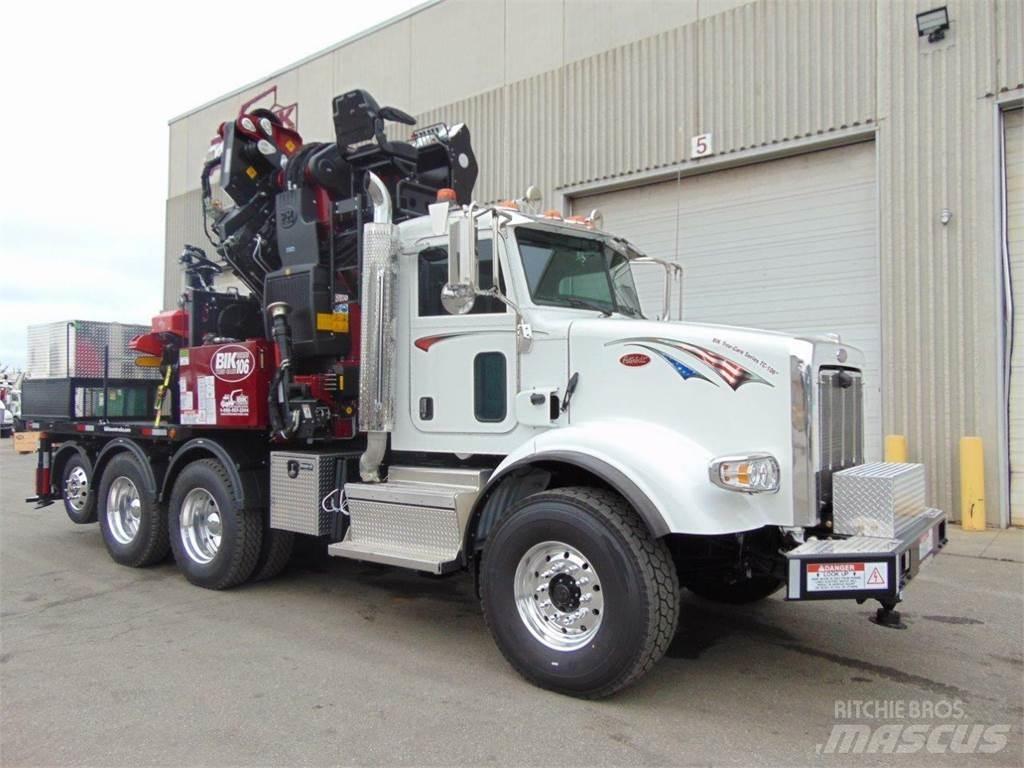

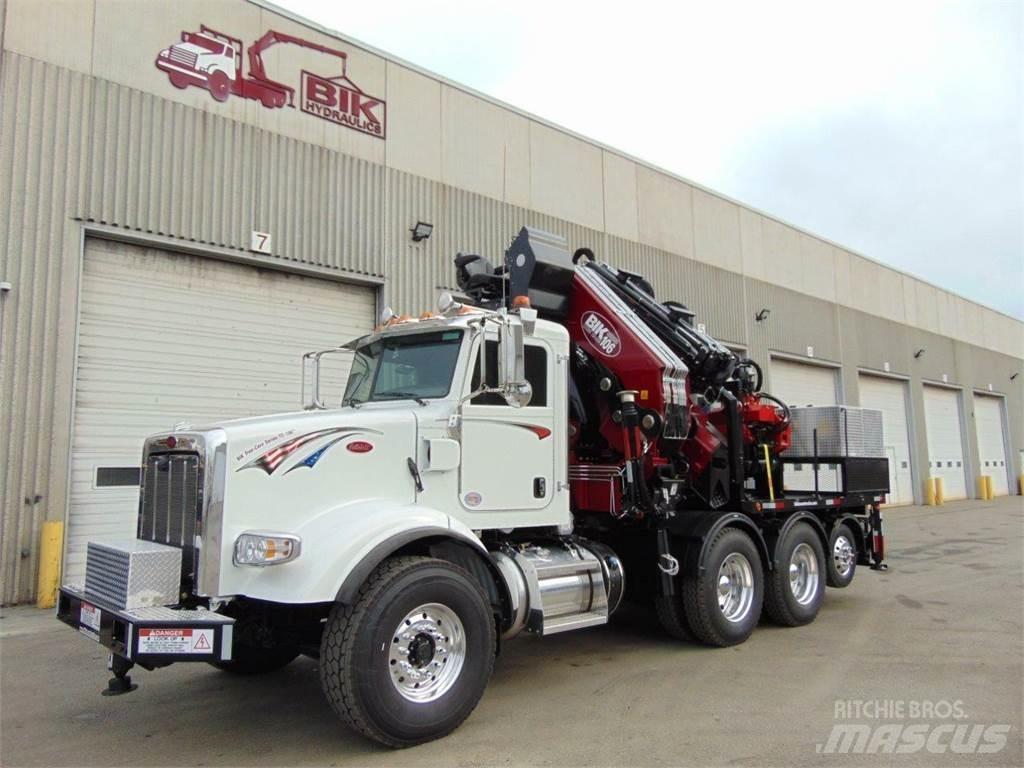

New – Peterbilt 365
4-axle
Day Cab Truck:N
79,000 lb GVWR
PACCAR MX-11L Diesel – 430 HP
– 1,650 ft/lb torque
Jake Brake
Eaton Ultrashift Plus Automated 13 spd trans
.
22,000 LB fronts with 425 / 65R22.5 tires on Aluminum Rims
46,000 LB Rears on Neway Air-Ride suspension with 11R22.5 tires on Aluminum outer rims
9,000 lb self steer tag axle behind t/a with 17.5” tires/alum rims
Double Frame with integral front bumper frame extention (for front stabilizer)
Chrome single Exhaust pipe side of cab, Chromed Grille & Bumper
Single 80 gallon alum fuel tank
172” X-tra short wheelbase
– Best In-Class turning radius
Loaded with Options Including:
A/C, Tilt/Telescopic steering, AM/FM radio w/Bluetooth, pwr windows/locks, cruise, heated mirrors, inter-axle and diff lock-ups, Cab White, Air ride cab, full diff locks, ext sun visor, etc…
Options Included
:
(5) pcs – 2” PVC stab pads w/holders
2 to 3 day on site boom feature/function familiarization by a BIK tech
Custom re-enforced manual extn for grapple
New Mecanil SG-280 Graple saw with spare parts
Available Optional Equipment
(additional saw)… Mecanil SG 160 Grapple saw with spare parts kit and holder on deck
Aluminum single man self-levelling basket
Drawplate at rear with reese type receiver
Back up D-rings and electric brake actuator
Mat rack mounted on top of deck at rear at approx. 8’ wide – 50” long
(not including mat’s)
Aluminum storage boxes top mounted on deck or on top of Mat Rack |
