BOOM DETAILS

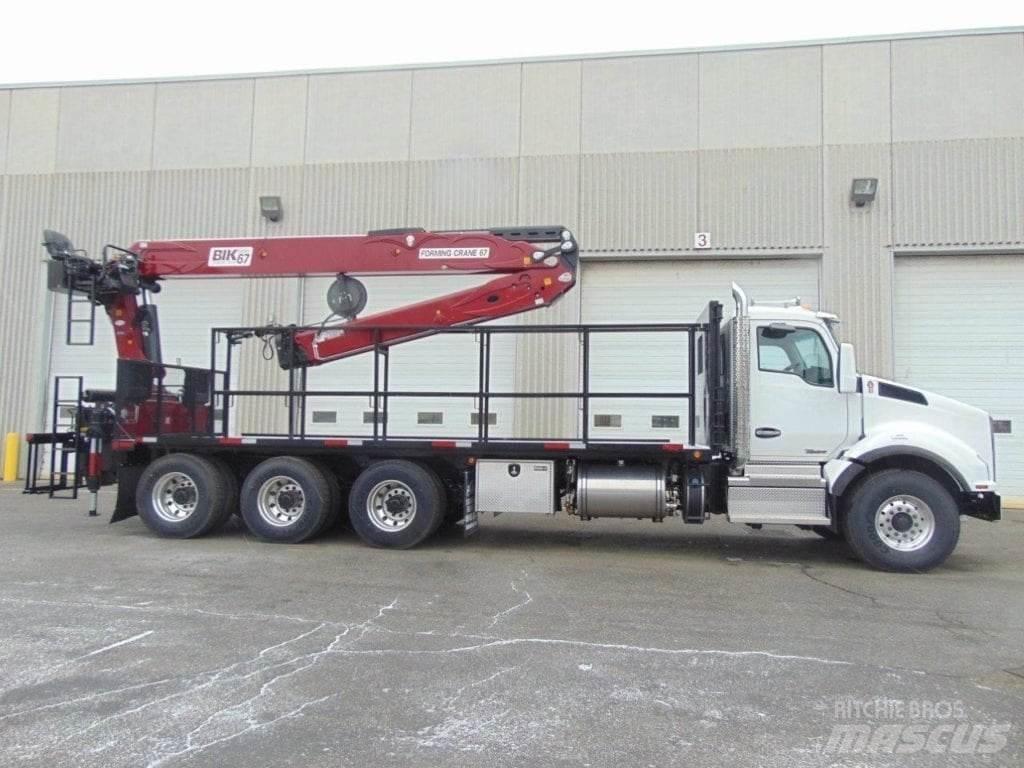

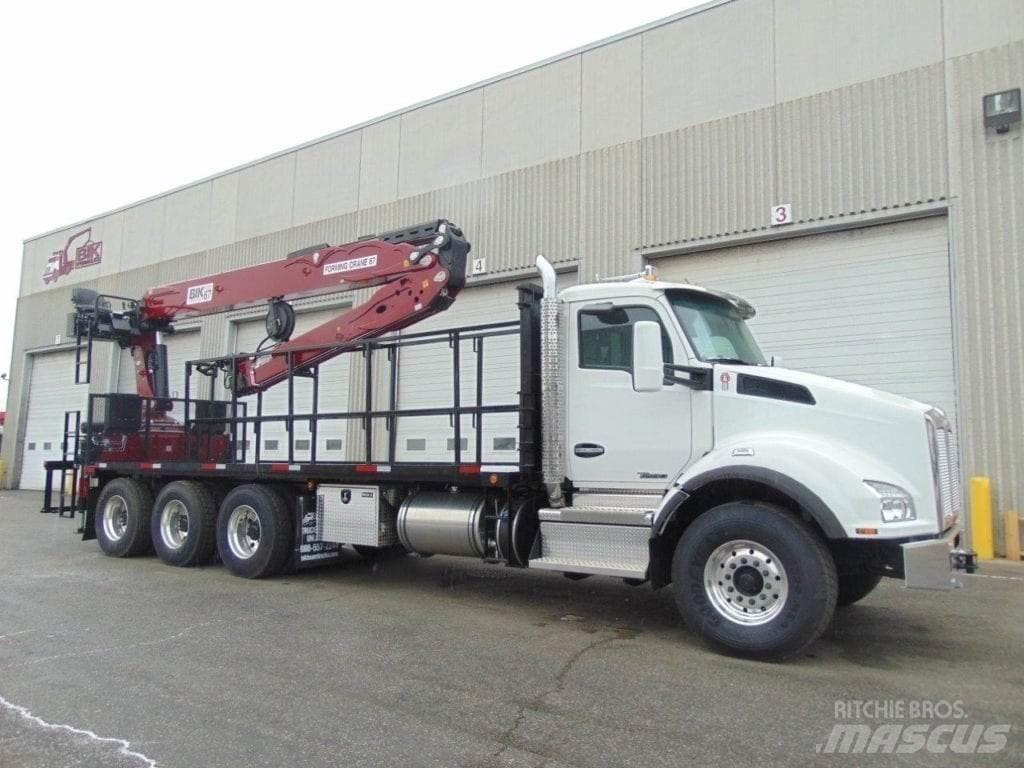

New – BIK Series Forming Crane FC-67 Unloader –
4 Hydraulic Extensions, (simulated 70’ rearward reach w/reverse mount)
Horizontal Capacities
7,400 lb ... 28’
3,100 lb ... 55′
2,500 lb ... 62′
2,200 lb ... 67′
Internal cylinders on all boom extensions, Outer boom cylinder guard
Rack & Pinion type 390 degree non-continuous rotation , Mechanical stop between main boom and boom unit
Power Link Connections at Main and Articulating Cylinders, enhanced lifting power throughout
Extra Wide Stabilizers – 24’ 3” span,
hydraulic out and down type
Flanged holding valves, double acting check valve for the down movement of the stabilizers
Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
DANFOSS Valve – At Top Seat Level controls
full access catwalk
Hydraulic hook rotator
with T-hook at end of boom
SCANRECO Proportional Radio Remote Control
Included: 2-batteries, in-cab charger, and back-up cord,
Load Tested & Installed end of frame on pre-engineered sub base.
DECK DETAILS
New
– 23’ 4” x 102” LOW PROFILE Steel Checker plate Flat Deck With Center Divider
Checker plate steel deck surface
60” + headboard with two sets of straps and winches ahead of the headboard
2” lip around deck for form cage handling
3” cross members side welded for low profile deck
Expanded metal removable rear tailboard
Winch bar holder and winch bar, ladder, reflectors and 5-side lights
Integrated torque box with X-bracing and sheer plating mount to frame for optimum stability
Primed/painted gloss black.
TRUCK DETAILS
New – Kenworth T880 Tri-Drive 4-axle truck:
89,000 lbs GVWR
Cab white
Paccar 485 HP
– 1,650 ft/lb torque, Jake Brake
Eaton Ultrashift Plus 18 spd automated trans
20,000 LB front steer axle with 425 / 65R22.5 tires on Aluminum Rims
69,000 LB Rears on Hendrickson Primax Suspension with 11R22.5 tires on aluminum outer rims
54” spread at ta
Double Frame
Truck features include:
A/C, Tilt/Telescopic steering, power windows & locks, AM/FM/MP-3 w/bluetooth, air driver’s seat and standard pass seat, cruise, htd mirrors, stainless exterior sun visor, Air ride cab, 4-wheel lock ups, trailer air tow package, Chromed Front and side Grille & Bumper, 100 gal alum fuel tank, etc..
Options Included:
(1) x 36” Aluminum Toolbox installed, – Wireless Proportional radio remoTE
LED spot lighting on the boom
1” drawplate at rear (for possible pintle hook)
Junction box at top seat for full engine controls
