INFO
產品類別
裝卸式拖車
品牌/ 型號
KWIK EQUIP
出廠年份
2024
機械所在位置（請填城市名，例如台北..等）
Houston, Texas
國家
美國
Mascus產品ID碼
913FC2F9
詳細資料
內部庫存號
194024ULK
其他資料

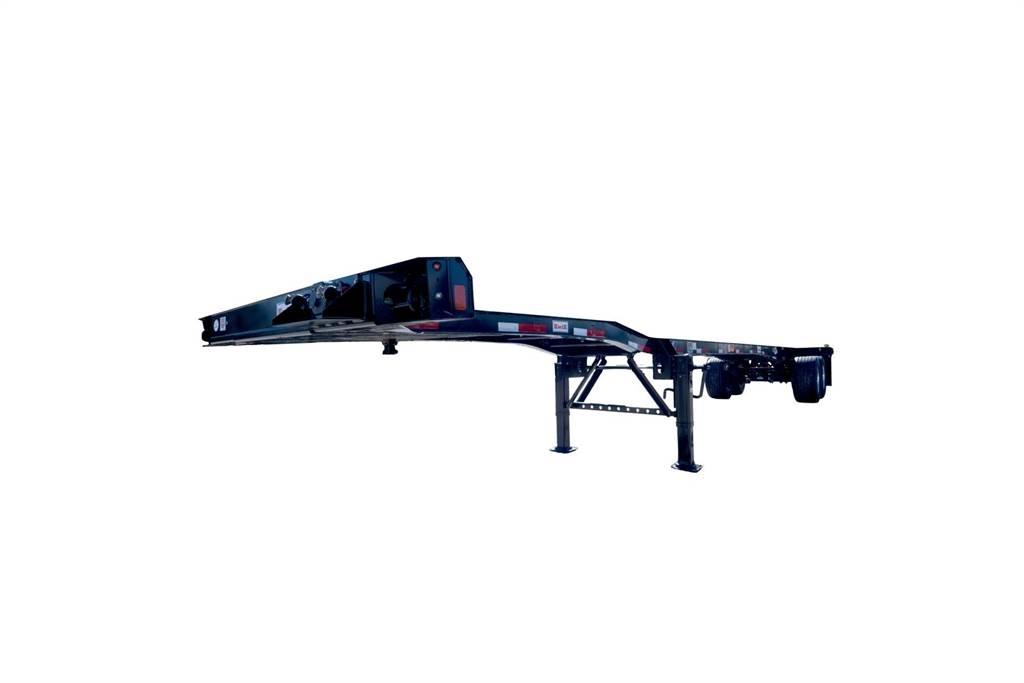

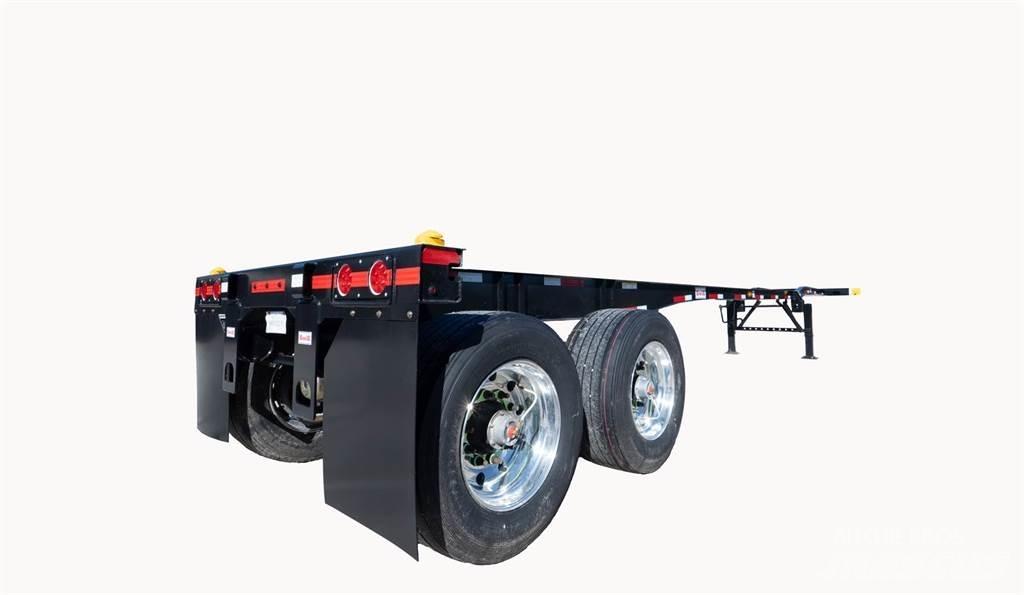

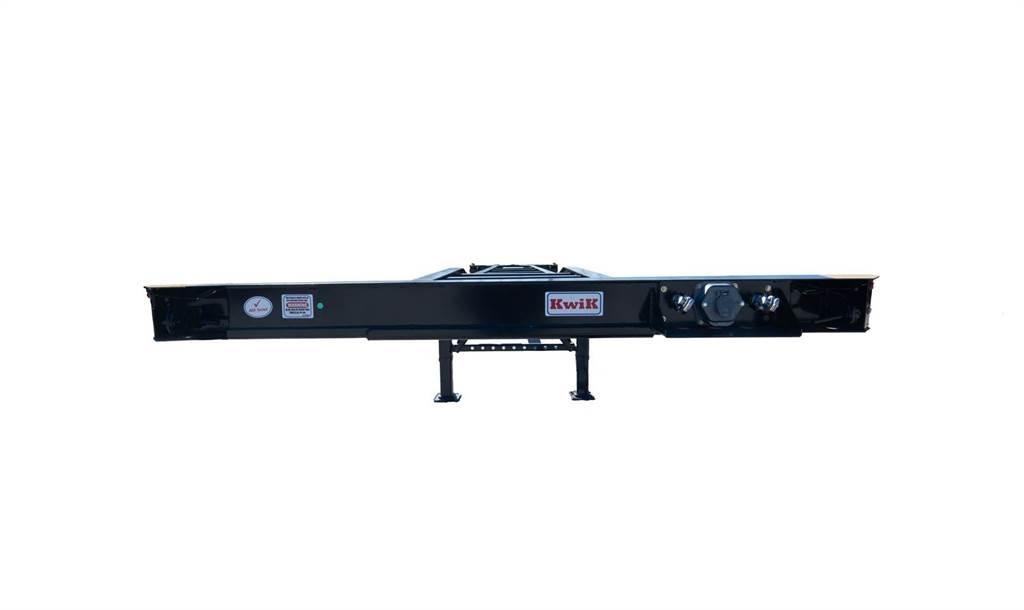

41ft long Lightweight Tandem axle spring suspension chassis with hub-piloted Aluminum Super Single
disc wheels and Super Single radial tires
PURPOSE: Designed to carry high cube 40ft container, up to 64,000 lb (conditions apply)
CONTAINERS: (1) 40ft HC Container
STANDARD DIMENSIONS:
LENGTH: 41’ WIDTH: 96”
FIFTHWHEEL HEIGHT: 47’ KINGPIN SETTING: 26”
AXLE SPREAD: 49” REAR DECK HEIGHT: 48”
TARE WEIGHT: 4,400 LB (+/- 3%) (Chassis only)
FRAME RATING: 65,500 LB
GVWR: 65,000 LB (Chassis, Container & Net Payload)
GCWR w/o Permit: 80,000 LB (Chassis, Container, Net Payload & Tractor)
GCWR w/ Permit: 84,000 LB (Chassis, Container, Net Payload & Tractor)
STANDARD SPECIFICATIONS / FEATURES:
MAIN BEAMS: Fabricated beams, Flanges and webs are of high-grade strength steel
CROSSMEMBERS: Fabricated / formed
KING PIN: 1/4” plate with 2” diameter king pin.
TWISTLOCKS: Standard front Pin locks and rear Non-retractable twistlocks
LANDING GEAR: 2-speed 14” travel with cushion foot
SUSPENSION: 49” Spread Tandem Axle Overslung with Fabricated Undermount Hangers
AXLES: 71 ½” Track, 5” Round, 22,500 lbs capacity, with 49” centers
HUBS & DRUMS: Light weight hubs and drums – 10-hole Hub Piloted
BRAKES: 16 ½” X 7” quick-change brakes with non-asbestos lining
WHEELS: (4) 8.25 X 22.5 10-hole SUPER SINGLE ALUMINUM DISC Wheels
TIRES: (4) 445/50R22.5 Super Single tires
BRAKE SYSTEM: Standard Valve System for service and emergency brakes. 2S/1M ABS system
ELECTRICAL SYSTEM: 12v w/modular wiring and plug type connectors. 7-way pin electrical plug for ABS System.
Sealed wiring harnesses. LED Lights with flange mounts
PAINT: Zinc rich primer with Topcoat Urethane finish
COLOR: BLACK (Standard)
MISCELLANEOUS: 24x30 KWIK Mudflaps, logos, decals, Conspicuity Striping, Trucklite Registration Holder, etc.,
ADDNL FEATURES:
Metal Dock Bumpers
PSI Tire Pressure System
Loose Lug nut indicators顯示更多
Darda Management Group LLC
825 S Loop West Ste A-1 77054 Houston Texas 美國
