KWIK EQUIP
不含增值稅價格
請向賣家詢價
6
我的最愛
分享
儲存搜尋列印
INFO
產品類別
裝卸式拖車
品牌/ 型號
KWIK EQUIP
出廠年份
2024
機械所在位置（請填城市名，例如台北..等）
Houston, Texas
國家
美國
Mascus產品ID碼
0E0D09D4
詳細資料
內部庫存號
191924HDK
其他資料

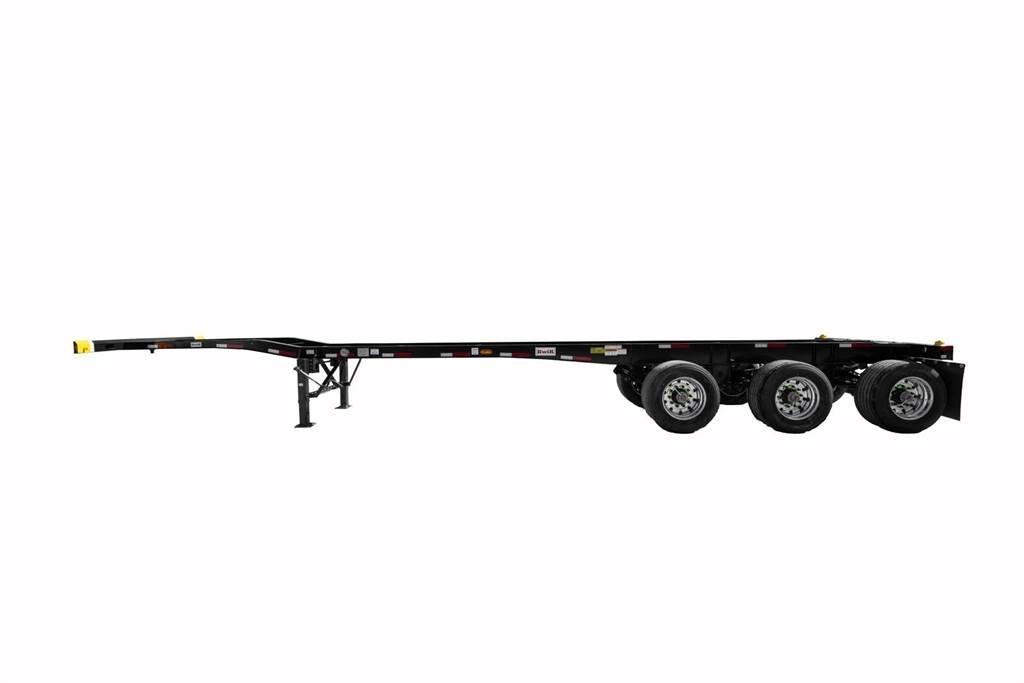

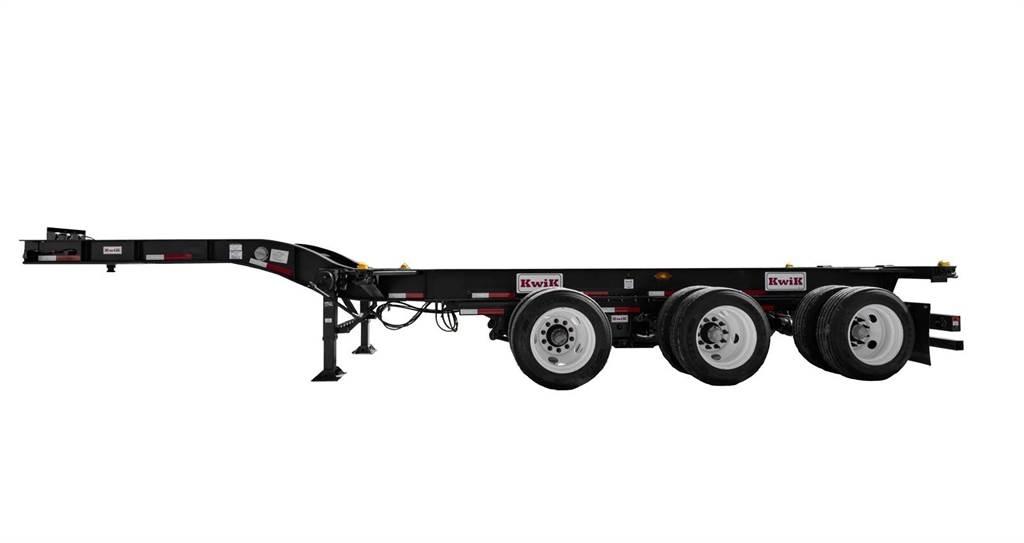

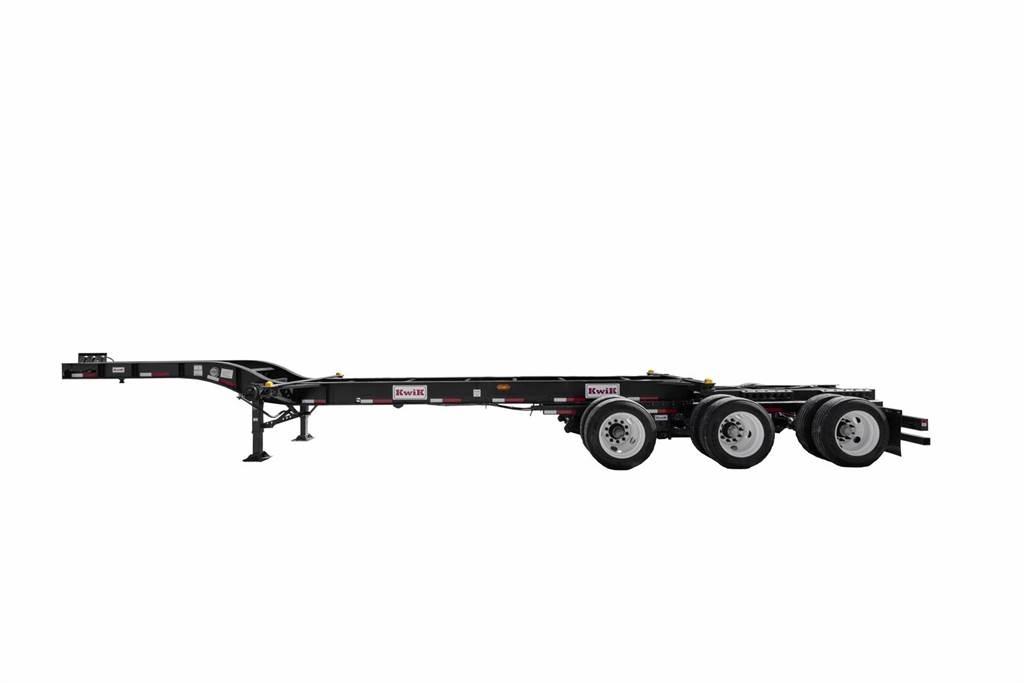

40ft long Gooseneck Triaxle Spring Suspension Slider Chassis extends from 33ft (closed) to 40ft
PURPOSE: Designed to carry 20ft ISO TANK CONTAINERS weighing up to 60,000 lbs (conditions apply)
CONTAINERS: (1) loaded 20ft ISO Tank Container
STANDARD DIMENSIONS:
LENGTH: 40’ WIDTH: 102”
FIFTHWHEEL HEIGHT: 47” KINGPIN SETTING: 14”
AXLE SPREAD: 120” DECK HEIGHT: 44”
TARE WEIGHT: 8,500 LB (+/- 3%) (Chassis only)
GVWR: 68,500 LB (Chassis, Container & Net Payload) – conditions apply
FRAME RATING: 69,500 LB
GCWR: 80,000 LB (Chassis, Container, Net Payload & Tractor)
STANDARD SPECIFICATIONS / FEATURES:
MAIN BEAMS: Fabricated main beams
Structural and fabricated Slider Frame Assembly
CROSSMEMBERS: Fabricated
KING PIN: 5/16” plate with 2” diameter double spool king pin.
SLIDER: Frame on Frame slide, (friction slide – grease applied for sliding purpose)
TWISTLOCKS: Standard Retractable & Non-Retractable twistlocks
LANDING GEAR: Standard 2-speed 19” Landing Gear, crank handle on driver side
SUSPENSION: 60” spread spring suspension with single leaf springs
AXLES: 71 ½” Track, 5” Round, 22,500 lbs with 60” centers
HUBS & DRUMS: Standard steel hubs & cast drums – 10-hole Hub-Piloted
BRAKES: 16 ½” X 7” quick-change brakes with non-asbestos lining
WHEELS: (12) 8.25 X 22.5 10-hole Radial Steel disc Wheels
TIRES: (12) 255/70R22.5 - 16 Ply Radial Tires
BRAKE SYSTEM: Standard Valve System for service and emergency brakes.
4S/2M WABCO/Meritor ABS system w/RSS (Roll stability system)
ELECTRICAL SYSTEM: 12v w/modular wiring and plug type connectors. 7-way pin electrical plug for ABS System.
Sealed wiring harnesses. LED Lights with flange mounts.
PAINT: Zinc rich primer with Topcoat Urethane finish
COLOR: BLACK
MISCELLANEOUS: Mudflaps, logos, decals & Unit Numbers
KWIK Conspicuity Striping
Registration Holder
顯示更多
