Toyota Traigo 80
不含增值稅價格
列印
INFO
產品類別
電動堆高機
品牌/ 型號
Toyota Traigo 80
出廠年份
2016
國家
匈牙利
Mascus產品ID碼
275C7513
定價
幣別選擇
詳細資料
車輪數量
4
最大舉升能力
5000 kg 公斤
重心距離
600 mm 公釐
最大舉升高度
4000 mm 公釐
自有升力 淨舉力
150 mm 公釐
驅動/傳動高度
2250 mm 公釐
升降桅桿
雙工/ 自由提升度
貨叉
集成側移
貨叉長度
1200 mm 公釐
車艙
封閉式車艙
輪胎類型
超彈性
變速箱
Electric drive
引擎/發動機
Electric
引擎/發動機 輸出功率
25.2 kW 千瓦 (34.3 hp 馬力)
發動機制造商
Toyota (Electric drive motor)
電池品牌
Exide
輪胎品牌
Marangoni
電池電壓
80 V 伏特
電池容量
840 Ah 安培
充電器製造商
Exide
充電器電壓
380 V 伏特
充電電流
13 A
方向盤數量
2
主動輪數量
2
運輸重量
6740 kg 公斤
運輸尺寸(長x寬x高)
410014402.25 m 公尺
前輪尺寸
28×12.5-15
後輪胎尺寸
23×9-10
其他資料

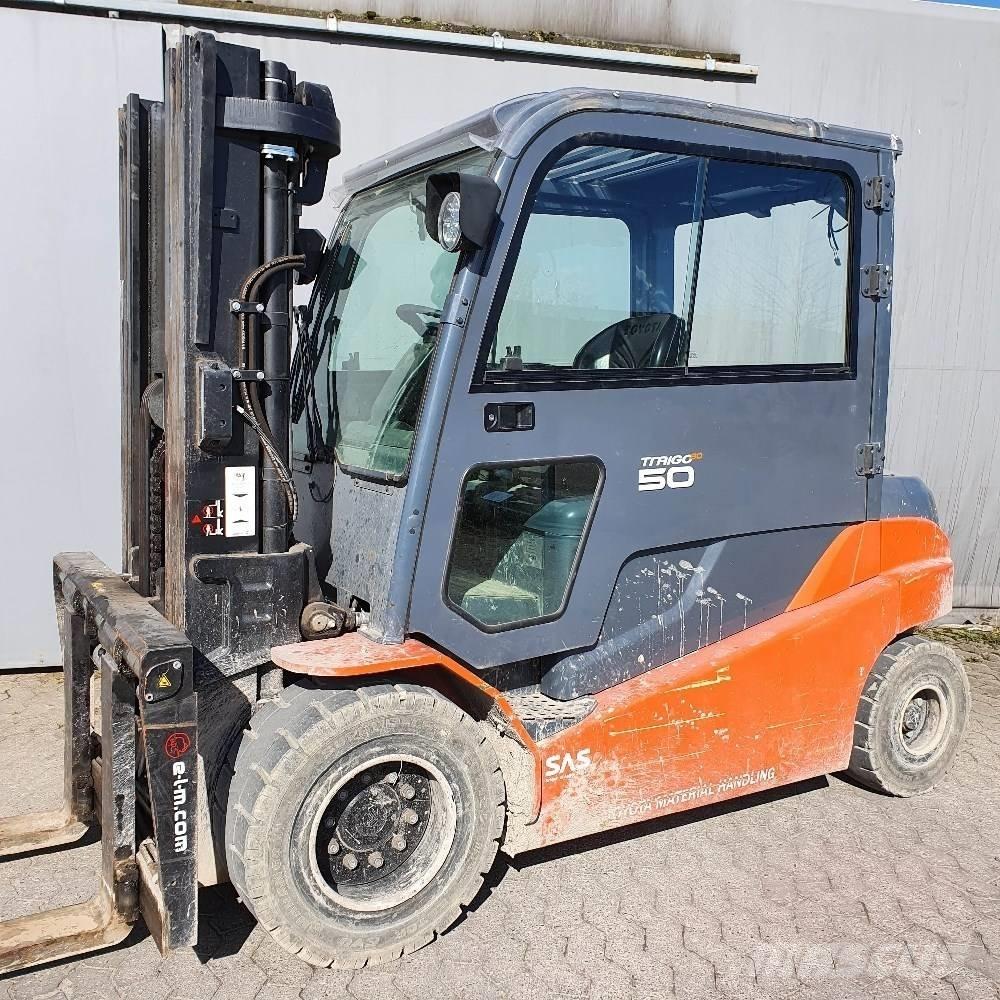

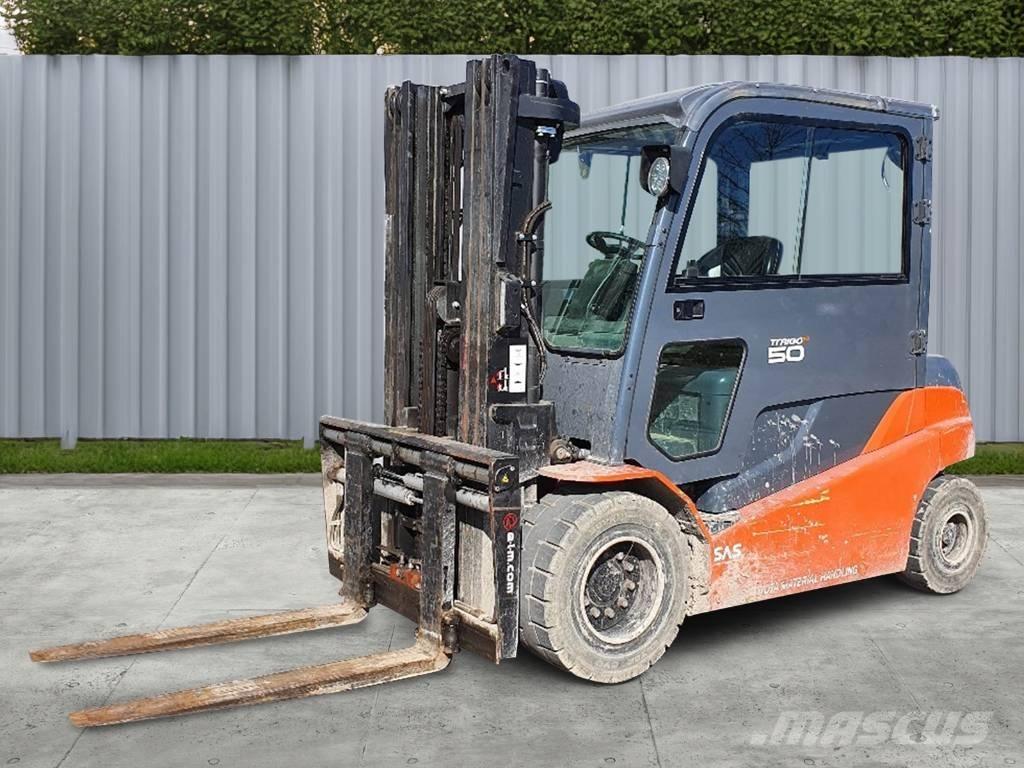

Toyota Traigo 80 Electric Forklift 5,000 kg Capacity Year 2016
Overview:
This high-performance Toyota Traigo 80 – 8FBMT50 is a robust and reliable 4-wheel electric forklift with a lifting capacity of 5,000 kg at a 600 mm load center. Designed for intensive industrial and logistics operations, it combines strong performance, operator comfort, and safety in one compact and efficient machine. With only 850 operating hours, this forklift is in very good working condition and ready for immediate use.
Technical Specifications:
Make: Toyota
Model: Traigo 80 – 8FBMT50
Year: 2016
Power: Electric (Battery 80V / 840 Ah)
Lifting capacity: 5,000 kg
Load center: 600 mm
Lifting height: 4,000 mm
Fork length: 1,200 mm (with optional 2,000 mm extension forks)
Travel speed (with/without load): 18 / 18 km/h
Drive motor: 25.2 kW
Lift motor: 25.5 kW
Dimensions (L × W × H): 4.10 × 1.40 × 2.25 m
Machine weight: ~6,740 kg
Performance & Features:
Mast type: FSV4000
Steering: Power steering with adjustable tilt steering column and memory function

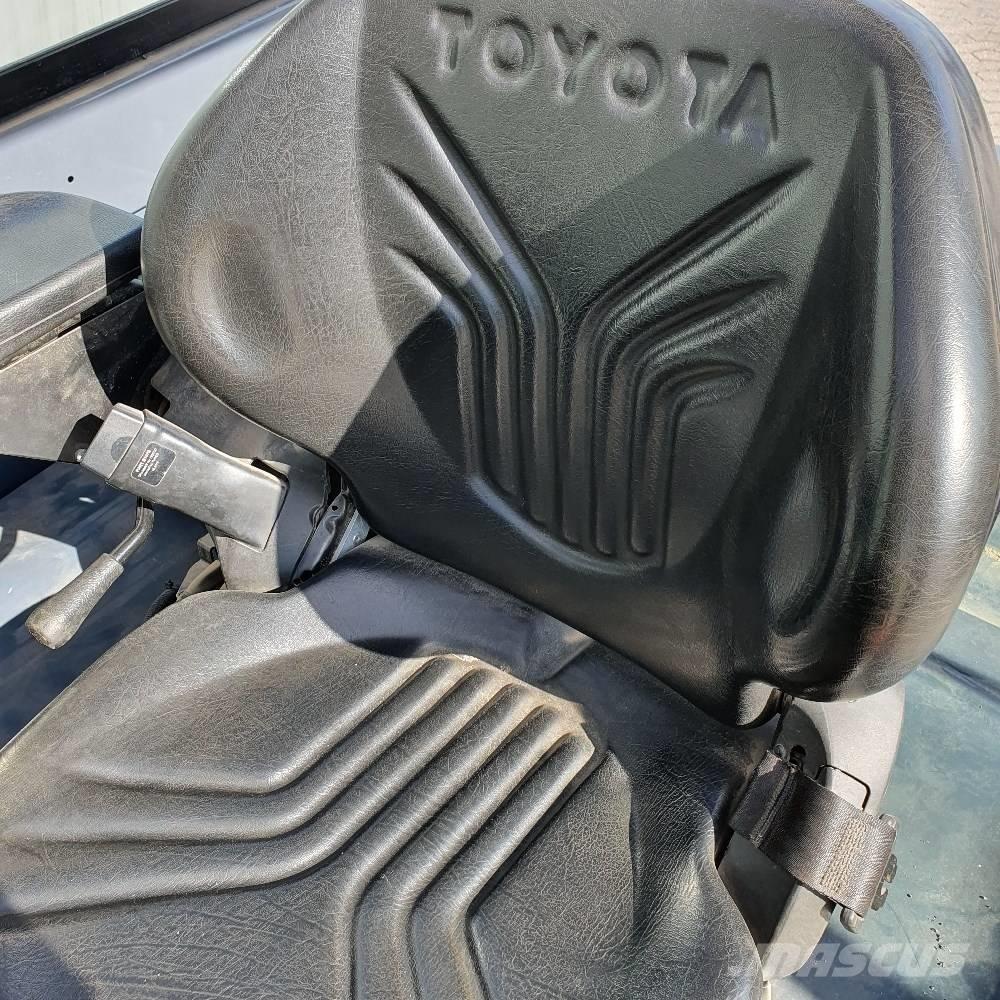

Seat: Grammer full-suspension seat with premium upholstery, adjustable in three ways for operator comfort
Controls: Seat-mounted minilevers with direction selector integrated in the armrest
Safety Systems:
Toyota SAS (System of Active Stability)
OPS (Operator Presence System)
Automatic parallel fork alignment
Automatic tilt limiter
Steering axle stabilization and synchronized steering knob
Lighting: Full LED lighting package (front/rear work lights, indicators, brake lights, reversing lights)
Cabin: Toyota original cab with overhead guard, including heater with defroster
Accessories:
Integrated fork positioner with side shift (ELM 3IFPF)
Central water filling system for battery
Exide HF charger (380V, ~12h charging time)
Panorama rear-view mirror
Digital multi-display with steering wheel position indicator
Battery and charger included
Condition & Notes:
Visually inspected and technically in very good condition (4/5)
Compact overall height of only 2.25 m, allowing operation inside containers
Owner will install rear window before delivery
Additional 2,000 mm fork extensions included
Additional Information:
This Toyota Traigo 80 is a premium-class electric forklift built for demanding warehouse, logistics, and industrial environments. With low hours, strong lifting power, advanced safety features, and excellent operator comfort, it is an ideal solution for companies looking for a reliable and efficient material handling machine.
GLOBAL UNICOF KORLÁTOLT FELELŐSSÉGŰ TÁRSASÁG
KASSAI ÚT 13 5062 KŐTELEK Jász-Nagykun-Szolnok 匈牙利
