Shantui SD22F
不含增值稅價格
請向賣家詢價
6
我的最愛
分享
儲存搜尋列印
INFO
產品類別
伐木歸堆機
品牌/ 型號
Shantui SD22F
出廠年份
2020
使用時數
5 h
額外選項
全新/未使用過
機械所在位置（請填城市名，例如台北..等）
jining
國家
中國
一般級別
1
2
3
4
5
Mascus產品ID碼
06656305
詳細資料
最新檢驗紀錄
yes
引擎/發動機
Cummins NT855-C280S10
引擎/發動機 輸出功率
175 kW 千瓦 (238 hp 馬力)
變速箱
SHANTUI
運輸重量
24700 kg 公斤
運輸尺寸（長x寬x高）
5495×3725×3402 m 公尺
生產國
中國
配件
絞索盤
方向盤
其他資料

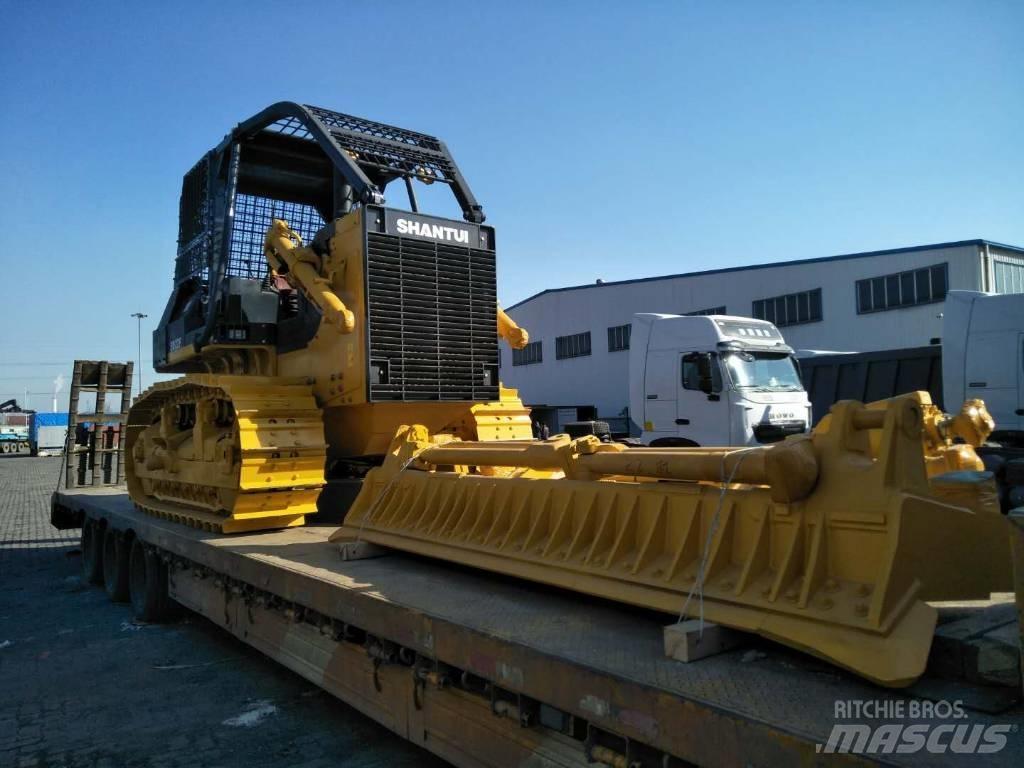

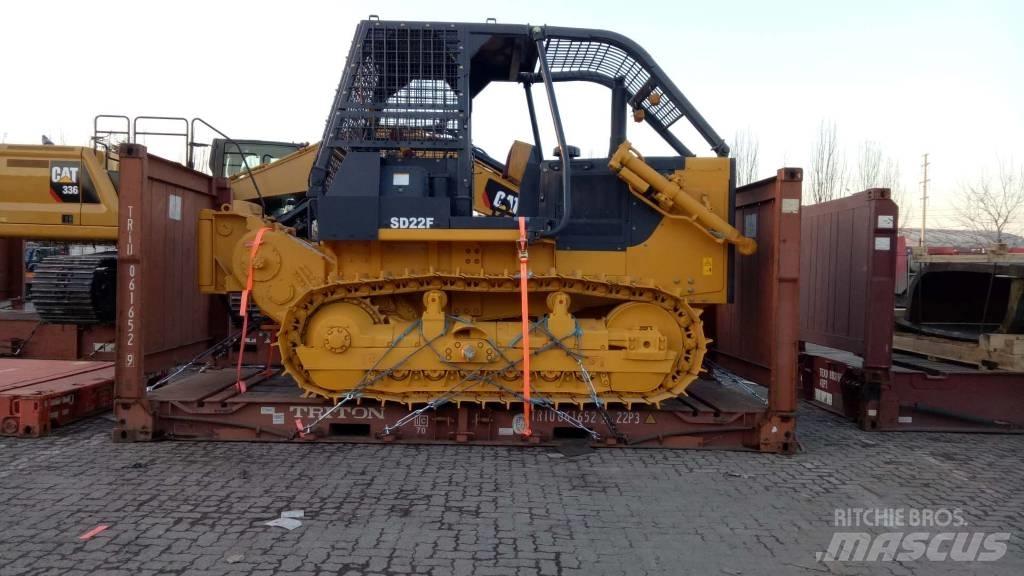

China shantui bulldozer SD22F forest lumbering type with winch
Shantui bulldozers are the most cost-effective products comparing with other brands bulldozers around the world.
Shantui Large Horsepower Forest Lumbering Type Bulldozer (SD22F)

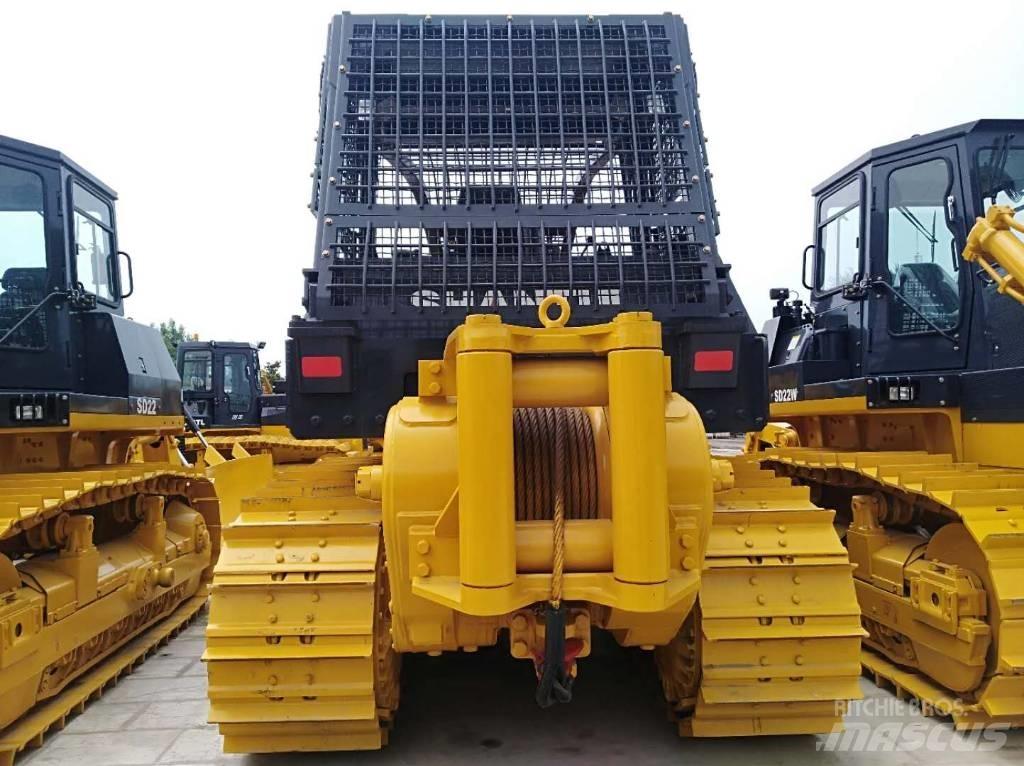

The SD22F forest type bulldozer is specially designed for operations in wooded areas. The SD22F has advanced performance, high reliability, low fuel consumption and convenient maintenance. It's equipped with a ROPS canopy and cab, a wider track (610 mm) and a mechanical winch. The SD22F has excellent maneuverability and self-rescue capabilities. The SD22F easily adapts to logging, stacking, hauling and transporting work in wooded areas.
Following is specifications for 220HP series of SD22F bulldozers
[Product Parameter]
PRODUCT SD22F
(FOREST LOGGING)
PERFORMANCE PARAMETERS Operatiing Weight (kg) 24700
Rated horsepower (kw/hp) 175/1800
Minimum turning radius (mm) 3300
Ground pressure (kpa) 66
ENGINE Model Chongqing cummins NT855-C280S10
Emission China I
Type In-line,direct injection,water cooled,4-cycles,turbocharged
No.of cylinders×Bore×stroke (mm×mm) 6×140×152
Piston displacement (L) 14
Horsepower/rpm (kw/rpm) 175/1800
Maximum torque (N.m/r/min) 1030/1250
DIMENSIONS Length(mm) 5495
Width(mm) 3725
Height(mm) 3402
TRAVELING PERFORMANCE Forward/Reverse(km/h) F1:0-3.6 F2:0-6.5 F3:0-11.2 R1:0-4.3 R2:0-7.7 R3:0-13.2
Gradeability(deg) 30
Clearance(mm) 405
TRANSMISSION Torque convertor 3-element, single stage, 1-phase
Gear box Planetary gear and powershift transmission, hydraulically actuated, forced lubrication
Main drive Spiral bevel gear, single-stage speed reduction, splash lubrication
Steering clutch Wet multiple disc,coned disc spring loaded, hydraulically actuated, hand operated,interconnected with steering brake
Brake Wet, contracting band,foot operated with hydraulic booster
Final driver spur gear,double reduction ,splash lubrication
UNDERCARRIAGE Suspension Swing type of sprayed beam,suspended structure of equalizer bar
Track gauge (mm) 2000
Shoe width (mm) 560
Track length on ground (mm) 3050
Number of shoes (each side) 41
Pitch (mm) 216
Carrier rollers (each side) 2
Track rollers (each side) 7
WORKING HYDRAULIC SYSTEM Pressure (MPa) 14
Working pump Gear pump
Valve Multi-way valve
Bore of blade lift cylinder (mm) φ120
Bore of blade tilt cylinder (mm) φ200
TANK CAPACITY Fuel tank capacity (L) 450
Working hydraulic tank capacity (L) 110
WORKING EQUIPMENT Blade width (mm) 3725
Blade height (mm) 1315
Blade capacity (m³) 6.4
Max.Drop below ground of blade 1210
Lift height of blade 540
Type of ripper Single shank/3 shanks
Maximum digging depth of ripper (mm) Single 695 Three 666
Maximum lifting height of ripper (mm) Single 515 Three 555
[Product Strengths]
1.This product is equipped with special lumbering ROPS shelter/cab. The wide (610mm) tracks and the mechanical winch can be equipped to achieve good trafficability and self-rescue performance and adapt to lumbering, skidding, and traction transport in the rainforests and forest farms.
2.The standard lumbering blade can powerfully remove all kinds of bramble obstacles along the lumbering path. The winch is used for traction of the lumbers and self-rescue of the bulldozer during the lumbering operations, of which the self-rescue function of the winch guarantees the operator's safety.
[Applicable Working Conditions]
Forest lumbering and road barrier clearance operations
[Current sales conditions]
As one of the most popular Shantui products, this bulldozer has been sold all over the world.顯示更多
