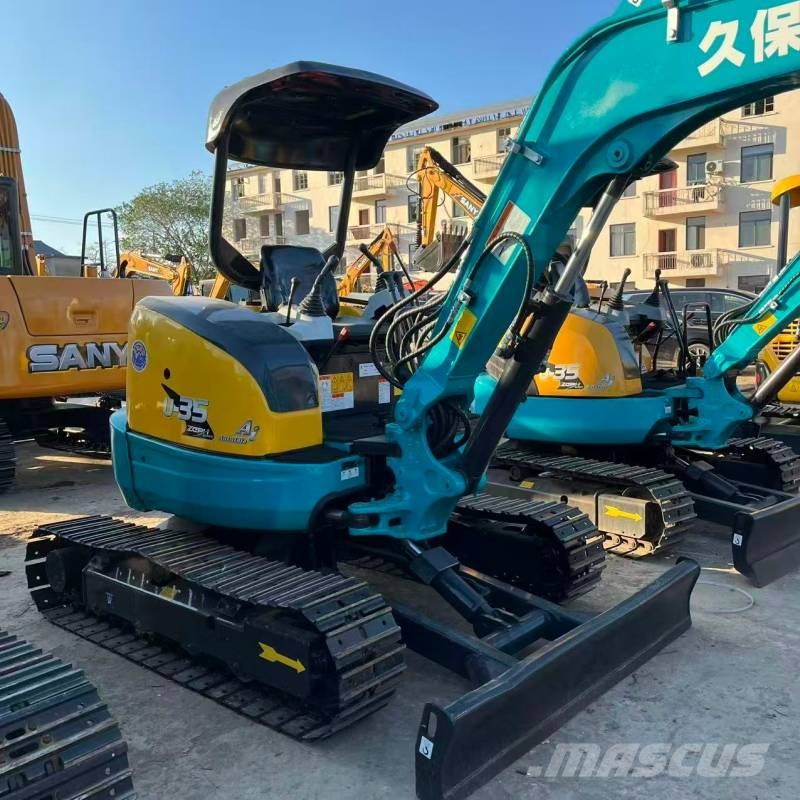

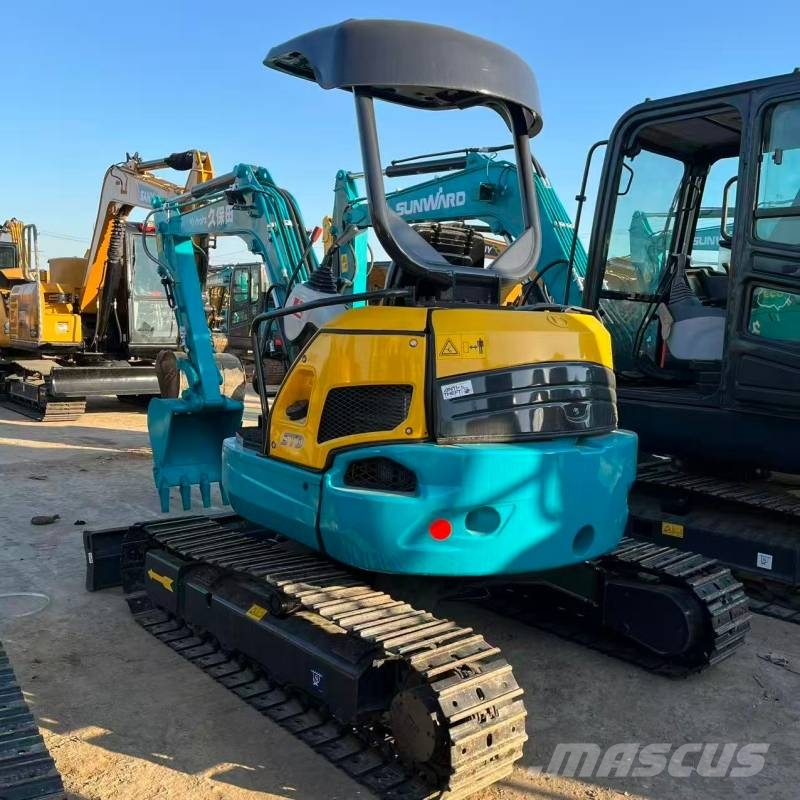

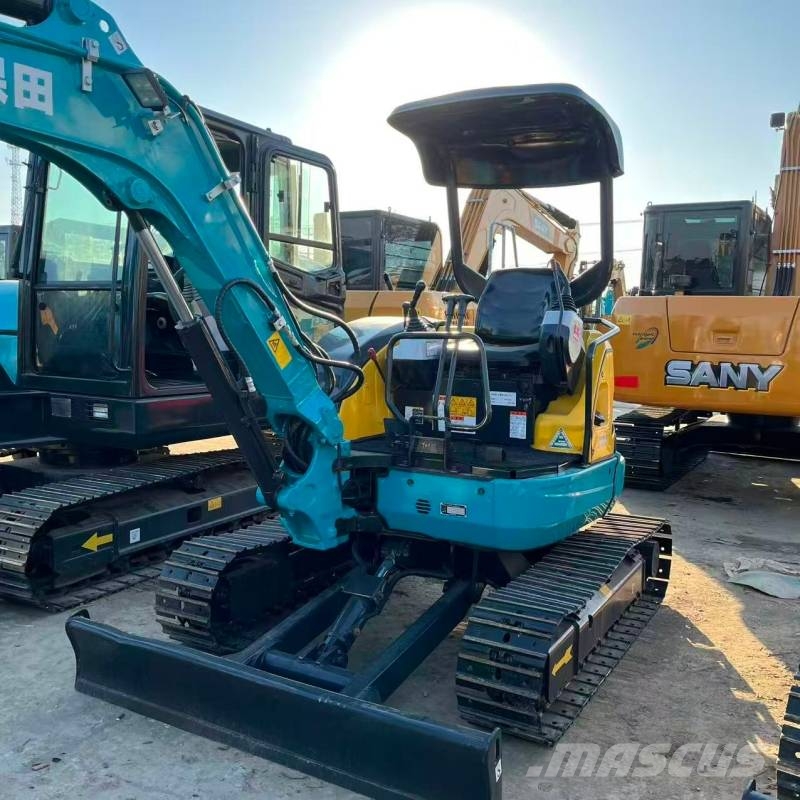

Kubota U 35

Company name:LONG WAY TRADING CO.,LTD Address:1898th Zaoxiang road ,Anyang City ,Henan province,China Contact: Nancy Tel : +8617739124690 WhatsApp:0086 13636464634 Wechat:17739124690 Email:

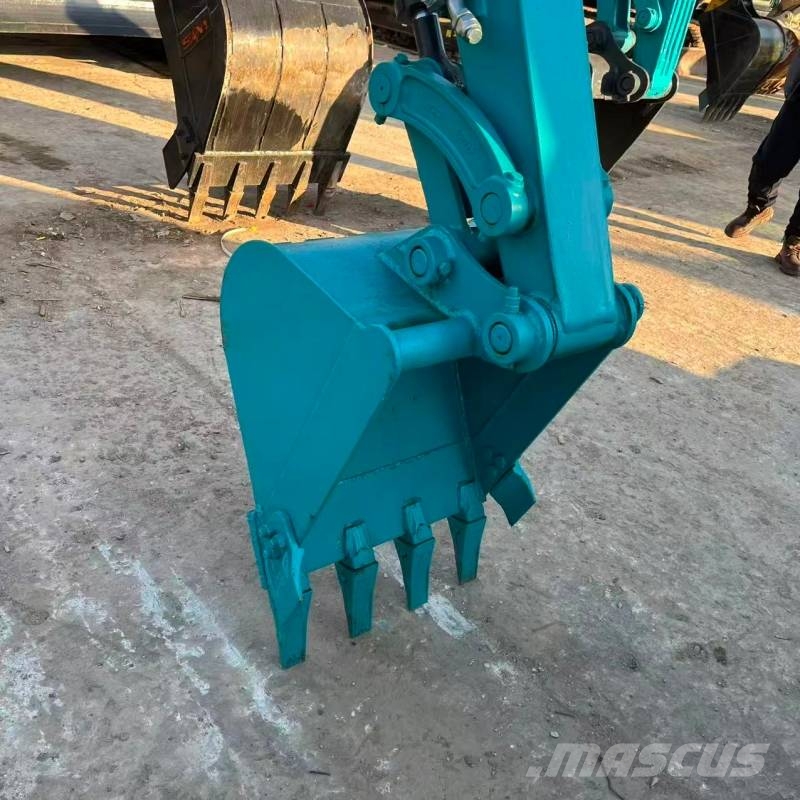

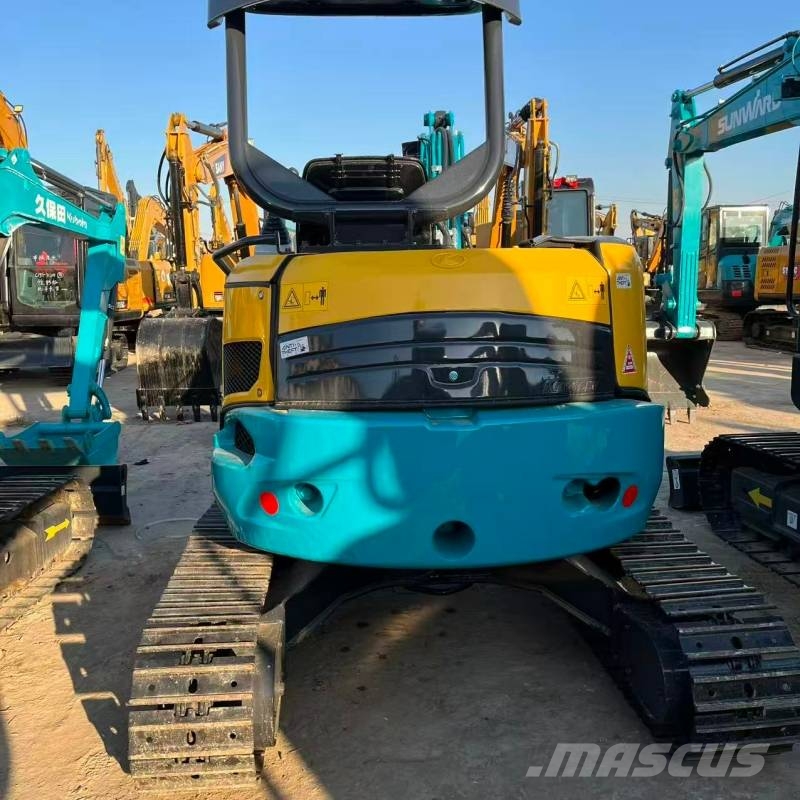

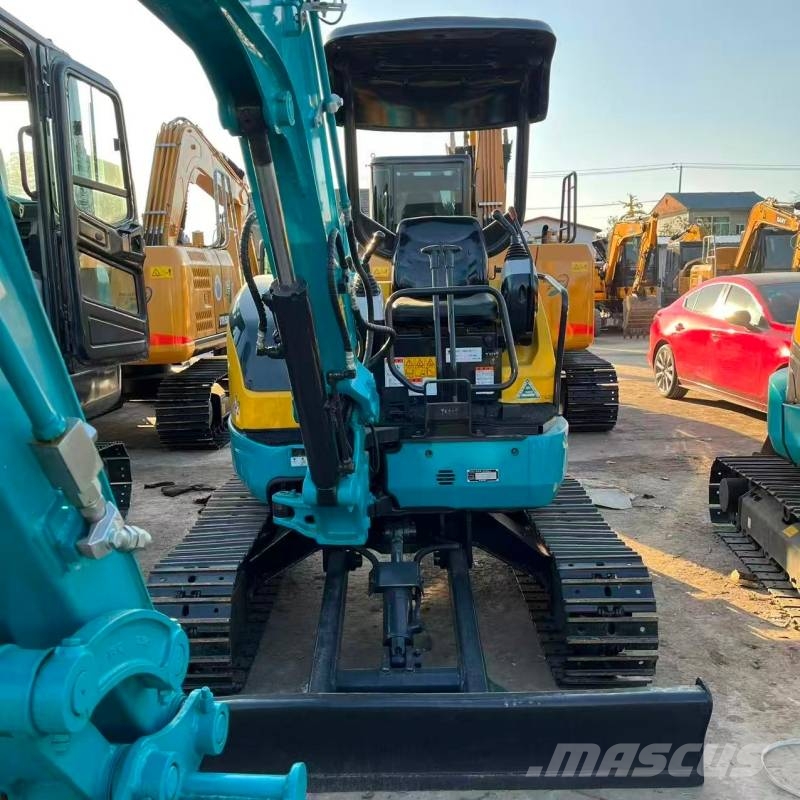

# English Version ## Kubota U35‑4 3.5 ton tight tail swing mini crawler excavator, made in Japan. > > Emission standard: EU Stage IIIA, CE certified, no DPF. Popular used machine for export to Europe, Middle East and Africa. ### Basic Machine Specifications - Operating weight: **3830 kg (cab + 300mm rubber track + dozer blade)** - Counterweight: **310 kg** - Standard bucket capacity: **0.10 m³** - **Bucket cutting edge length: 600 mm (with side teeth) / 550 mm (without side teeth)** - Boom length: 2300 mm; Arm length: 1400 mm - Swing speed: 8.5 rpm - Travel speed: Low 3.0 km/h / High 4.6 km/h - Gradeability: 30° - Bucket digging force: 29.5 kN; Arm digging force: 21.0 kN ### Engine - Model: **Kubota D1703M-DI-E4, 3-cylinder water-cooled direct injection diesel** - Displacement: 1.647 L - Rated power: 18.5 kW @2200 rpm (ISO9249) - Fuel tank: **42 L** - Fuel consumption reference: 2.6～3.6 L/h under normal working conditions ### Hydraulic System - Main pump: Dual variable piston pump + gear pump, 2×39.6 L/min + 20.9 L/min - Main relief pressure: 24.5 MPa - **1st auxiliary circuit (breaker line): Max 60 L/min @24.5 MPa** - **2nd auxiliary circuit (hydraulic thumb): Max 17 L/min @24.5 MPa** - Hydraulic tank: 30 L ### Track Shoe Width - Standard rubber track: **300 mm** - Optional steel track: 300 mm > > Overall machine width: 1700 mm ### Transport Dimensions (with cab & dozer blade, rubber track) - Length: 4750 mm - Width: 1700 mm - Height: 2470 mm ### Digging Envelope (standard boom & arm) - Max digging reach: 5275 mm - Max digging depth: 2989 mm - Max dumping height: 3404 mm
