的基本資料 |
| 產品類別 | 輪式洗滌機 |
| 品牌/ 型號 | Fabtec 5163/3625 |
| |
| |
| 出廠年份 | 2025 |
| 機械所在位置（請填城市名，例如台北..等） | Camrose、Alberta |
| 國家 | |
| Mascus產品ID碼 | 64405346 |
| + 顯示更多細節 |
定價 |
| 不含增值稅價格 | 請向賣家詢價 |
詳細資料 |
| 內部庫存號 | 2021-01-FT |
| 生產國 | 加拿大 |

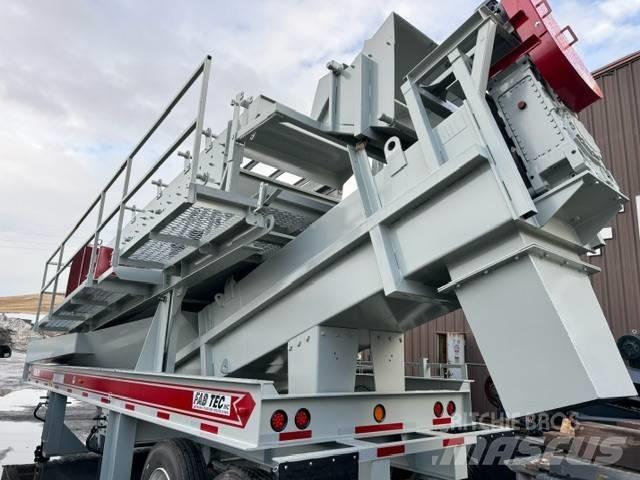

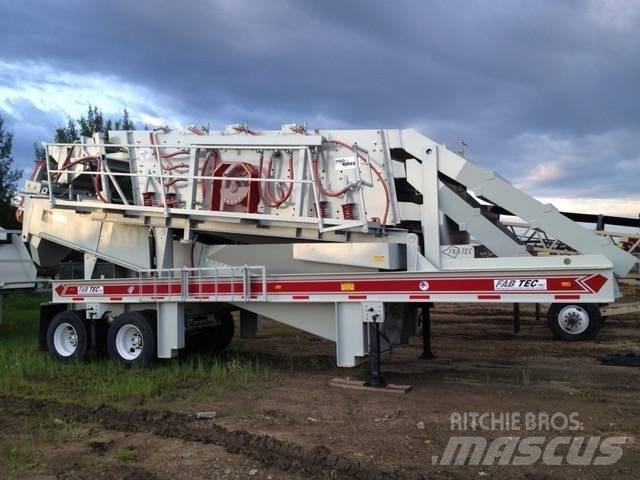

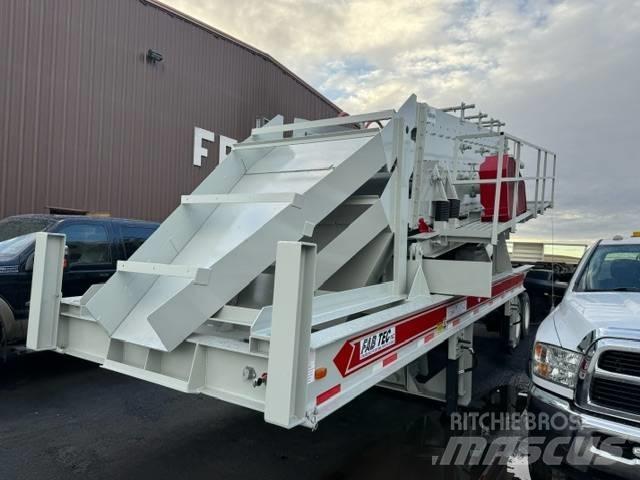

| 其他資料 | PORTABLE FAB TEC 5’ x 16’ – 3 DECK WASH PLANT WITH 36” x 25’ SANDSCREW:
PRO 5’ x 16’ - 3 DECK INCLINE SCREEN:
1. 20 HP TEFC with pivot motor base and power and belt.
2. 3/8" PL side walls.
3. Huck bolted screen decks, constructed of 4" x 3" x 3/8" angle iron and 3" x 2" rectangular tubing, ½" x 3" FB crown bars.
4. AR lined discharge lips.
5. AR lined feed box.
6. Alco high temper isolation springs.
7. 100 MM Torrington spherical bearings designed for shaker screens.
8. Center support tube 9" with ½" wall and 2" thick flanges.
9. FAB TEC cartilage style bearing housings, with heavy duty 1 1/4" wall.
10. Eccentrics with add on weights.
11. 10" WF sub frame 33# with C8" x 13.75# cross members.
12. Standard side tension formed clamp bars and ½" crown bar rubbers.
AGGRETEK 36" x 25' SANDSCREW:
1. 15 HP Motor.
2. Oil lubricated heavy-duty gearbox.
3. Replaceable wear plates.
4. 100 TPH MAX. CAPACITY material size 3/8".
(10) SPRAY BAR WASH SYSTEM:
1. 50/50 Brass "Vee Jet" nozzles, 1½" spray bars.
2. Brass individual gate valves for each spray bars.
3. Water manifold with inlet pipe and flange.
4. Rated at 640 GPM at 40 psi.
18" WALKWAYS BOTH SIDES OF SCREEN, BACK 48" PLATFORM, SKYWALK FLOOR, TOE BOARDS, 42" TUBE STEEL HANDRAILS, AND ACCESS LADDER.
(3) AR LINED DISCHARGE CHUTES WITH EASY ACCESS TO PRODUCT CONVEYOR:
1. Optional blending capabilities offered.
TANDEM AXLE CARRIER 16" WF BEAMS:
1. Hutch 9700 series suspension.
2. 22,500# Standard forge axles.
3. 11:00x22.5 Tires, ten hole piloted hub wheels.
4. Air brakes, LED brake lights, LED marker lights, reflector tape, and mud flaps.
SELF CLOSING SAFETY GATE AT LADDER OPENING.
SAFETY GUARDS, SANDBLASTED CHASSIS, RUST INHIBITOR PRIMER, AND TWO FINISH COATS OF PAINT INCLUDED.
PRODUCT CHUTE BLENDING ON 1ST TO 2ND AND 2ND TO 3RD PRODUCTS:
FEED SLURRY BOX WITH SPRAY HEADS:
ADDITIONAL OPTIONS AVAILABLE:
HYDRAULIC RAISE AND LOWER OF SCREEN AND SLURRY BOX:
1. 12 Volt system.
BINKLEY LANDING GEAR JACKS:
2 LEG
4 LEG
PLUMBING AND FITTINGS FOR "RISING CURRENT" INTO SANDSCREW |
您可在Mascus臺灣尋找到「Fabtec 5163/3625輪式洗滌機」。「Fabtec 5163/3625」的價格為-，2025年製造。此機械目前位於加拿大-。您可在 Mascus.com.tw 找到「Fabtec 5163/3625」和其他更多型號的輪式洗滌機。 詳細資料 - 內部庫存號：2021-01-FT, 生產國：加拿大
