Conrad Boxer 200
不含增值稅價格
列印
INFO
產品類別
鑽孔機
品牌/ 型號
Conrad Boxer 200
出廠年份
2018
使用時數
2784 h
機械所在位置(請填城市名,例如台北..等)
Apeldoorn
國家
荷蘭
一般級別
1
2
3
4
5
Mascus產品ID碼
710A505C
定價
幣別選擇
詳細資料
內部庫存號
25B0154
載架類型
履帶式
運輸重量
13500 kg 公斤
運輸尺寸(長x寬x高)
8660 x 2160 x 8930 mm 公釐
認證
CE
附屬裝置
NL: Afvangklem gemonteerd in voet van de mast, CE- document aanwezig, Direct inzetbaar, op voorraad!, rubberen trek
EN: Can be used immediately, Catch clamp mounted in base of the mast, CE document available, in stock!
其他資料

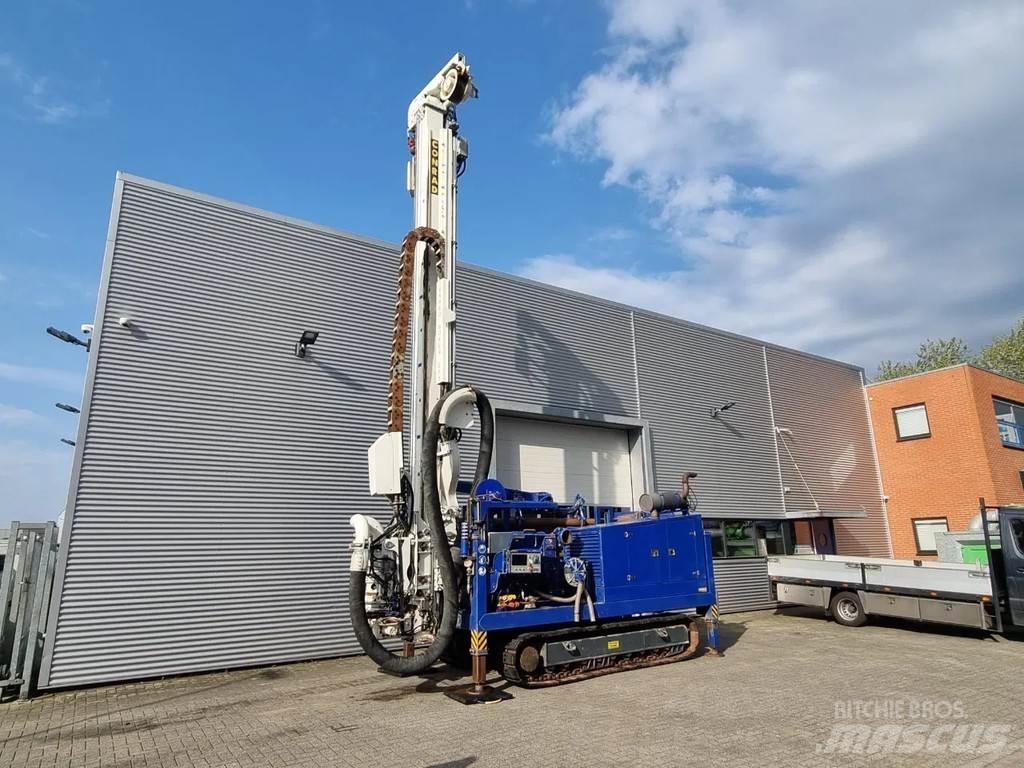

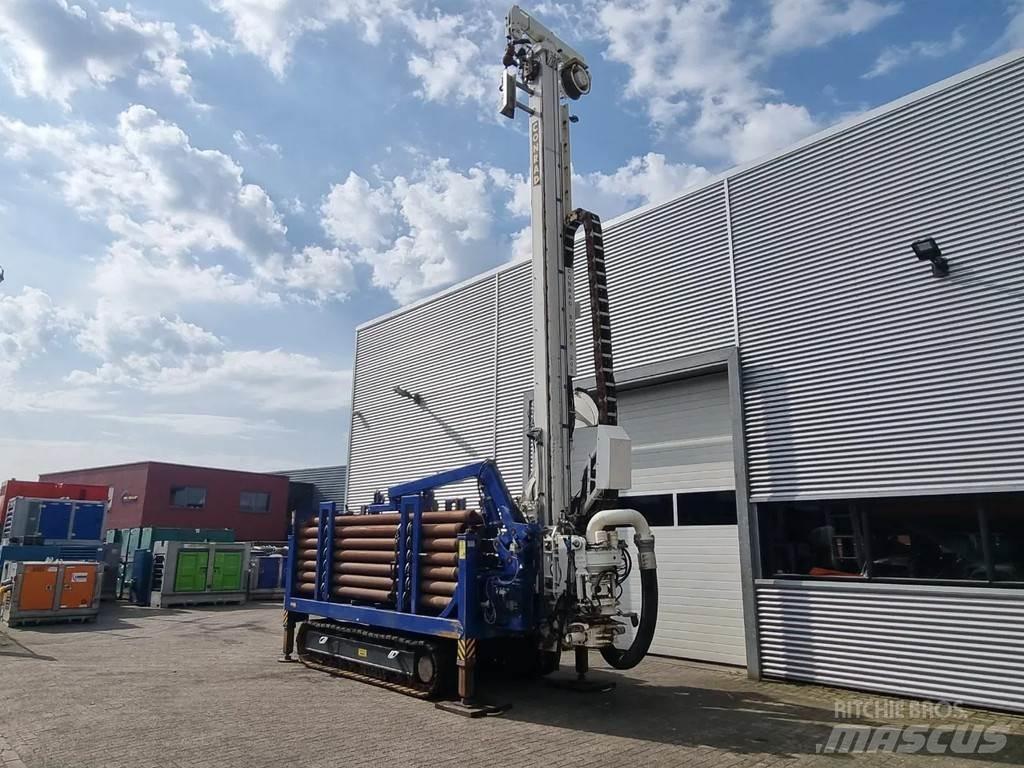

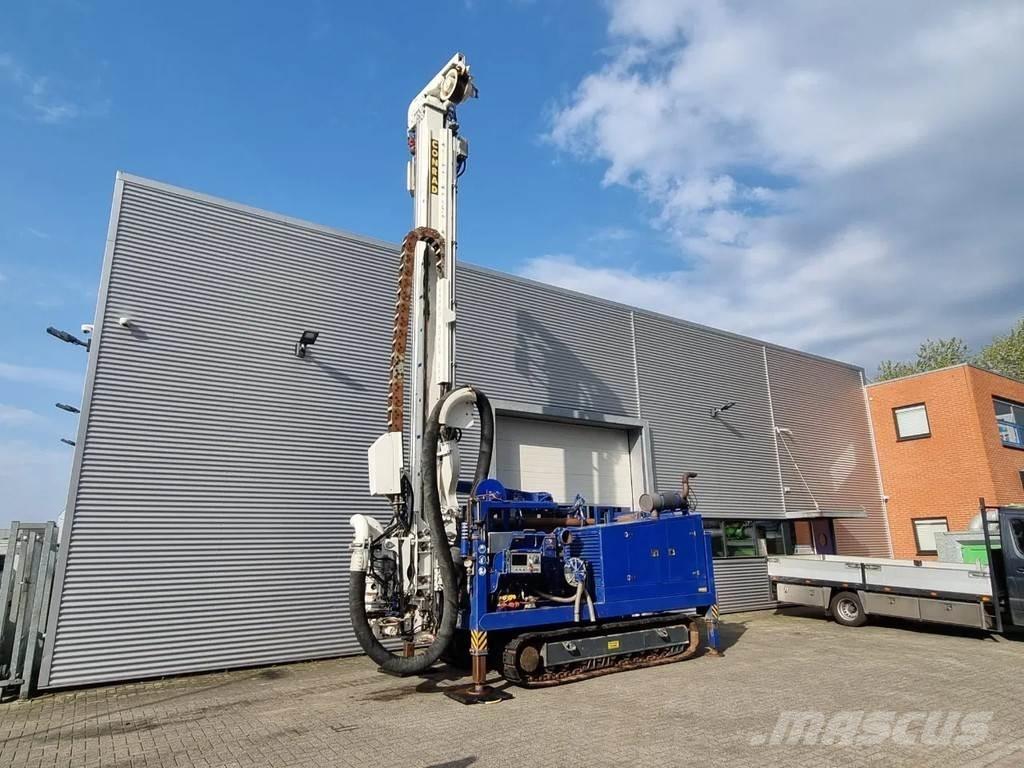

Conrad Boxer 200 drill 2018
Pull-up 8000 daN / kg
Pull-down 4000 daN / kg
Winch // Witch 1450 daN / kg
Year of construction 2019
Weight 12,500 kg
Stroke 430 cm
This Conrad boxer is equipped with:
Track chassis
- track length h.o.h.: 2905 mm.
- track width: 400 mm.
Winch Brevini EGO025
Max. pulling force: 1000 daN.
Steel cable length: 40 meters / Ø7 mm
Pull up / pull down system mast
638520
Effective stroke: 5.8 meters
Max. pulling force: 8000 daN.
Max. compressive force: 4000 daN.
Upward speed: 1.0 m/sec
Downward speed: 0.5 m/sec
Hydraulically driven 5" Drill head
Borage: 125 mm, 5”
Drive torque high: approx. 1000 daNm at 10-60 rpm
Drive torque low: approx. 500 daNm at 20-110 rpm
Breakaway torque: approx. 1200 daNm
Hydraulically operated change clock
suitable for Drill pipe COD 160 L=4000
Flushing head suspension with weight compensation
Hydraulically operated catch clamp
Hydraulic tank 480 litres
Hydraulically driven spray pump
Drill pipe manipulator
Drill pipe storage rack 4 metres 160 inch drill pipes
1 cassettes
It is equipped with a manipulator. Immediately available to earn money for you. Interested?
Please contact us for more information.
We are happy to help you
= More information =
General information
Year of manufacture: 2018
Model year: 2018
Technical information
Power: 94 kW (128 HP)
Number of cylinders: 4
Type of fuel: Diesel
Functional
Working width: 200 cm
Condition
Technical condition: good
Visual appearance: good
Other information
Track width: 200 cm
Additional information
Please contact John van Tongeren (+31620537017) for more information
