Vahva FORTI 200

不含增值稅價格

Compnay LOGO
Images6Videos1

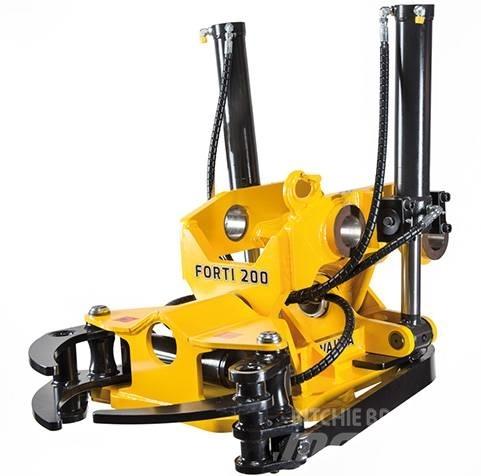

Vahva FORTI 200 旋轉混合器
Vahva FORTI 200 旋轉混合器
Favorite我的最愛
share分享
Save search儲存搜尋
列印

INFO

產品類別
旋轉混合器
品牌/ 型號
Vahva FORTI 200
出廠年份
2015
額外選項
展示機
機械所在位置（請填城市名，例如台北..等）
Saue
國家
愛沙尼亞
一般級別
1
2
3
4
5
Mascus產品ID碼
24BE0111

定價

幣別選擇

詳細資料

內部庫存號
VR50000
售後服務紀錄
有
適合下列機械
a mechanical rototilt designed for excavators from 13 to 20 tonnes, can be fitted to stick with pin diameter 80 mm, distance between pins (pin spread) 485 mm, face spread (stick width) 335 mm (JCB).

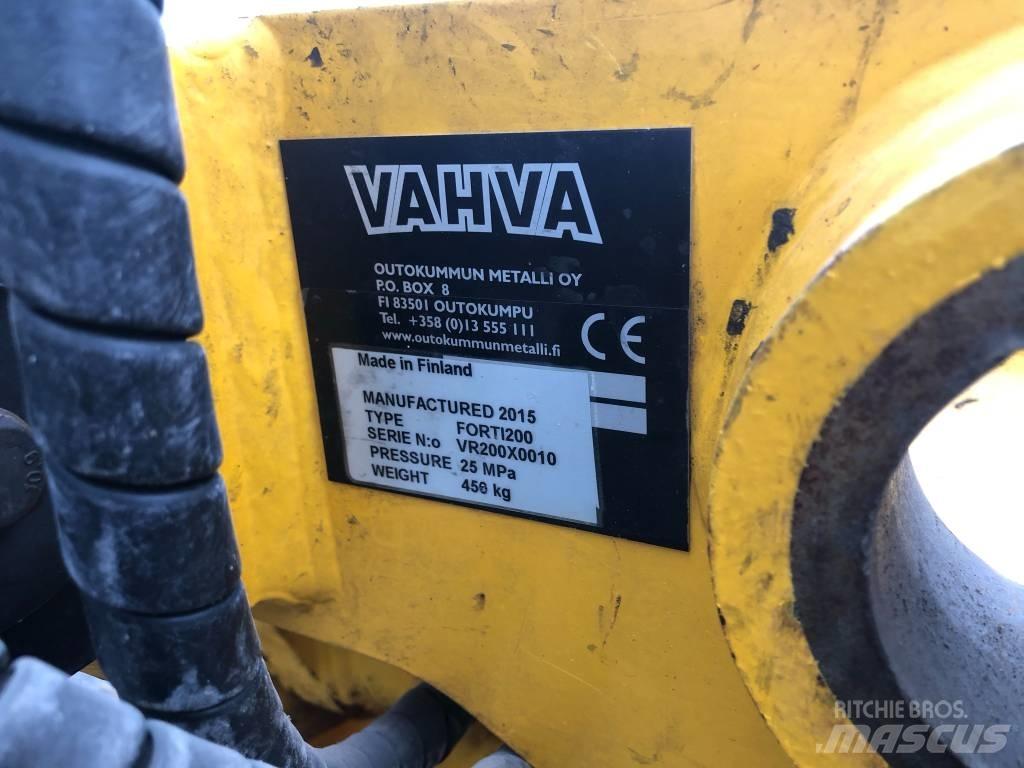

出廠年份/序號
VR200X0010
作業壓力
250 bar 巴
需要的液壓流量
80 l/min LPM
運輸重量
450 kg 公斤
運輸尺寸（長x寬x高）
990 x 720 x 280 mm 公釐
生產國
芬蘭
交貨條件
EXW
認證
CE
其他資料
A new and cheaper alternative for tilt-rotator, features full hydraulic tilt and a manual rotation system, manufactured by Finnish company Vahva. The Vahva Forti 200 is a mechanical tilt-rotator designed for excavators from 13 to 20 tonnes. Like most tilt-rotators these days the bucket or attachment can be tilted hydraulically 45 degrees both ways. But it’s the rotation aspect which differs from conventional tilt-rotators, with no expensive gear drive or electrics involved in the build. The Forti 200 couples to the bucket or attachment by engaging with a conical disc, which is then tightened and locked in place by the gripper. When the operator wants to rotate his bucket to a desired position he simply loosens the grip slightly and manually pushes the bucket around before re-locking the mechanism. You can see the system in operation in this promotional video from Vahva. Maybe you would see this as a bit of a backward step with tilt-rotation systems, but surely it could appeal to those who are watching the pennies more closely and working on a tight budget maybe.顯示更多
