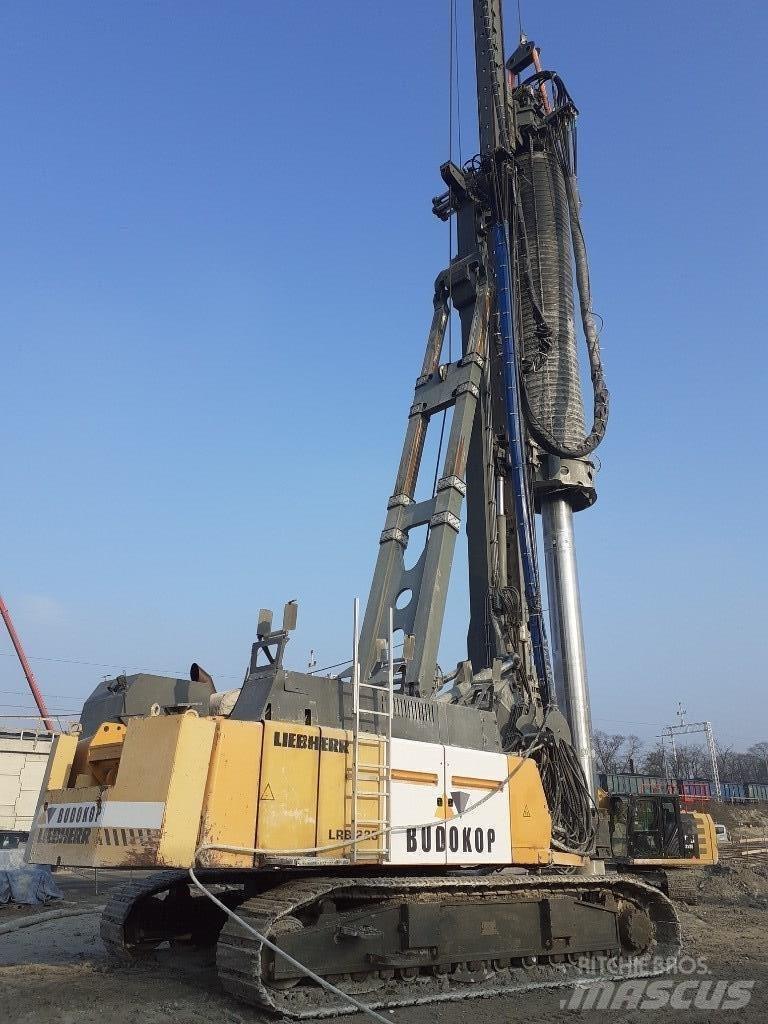

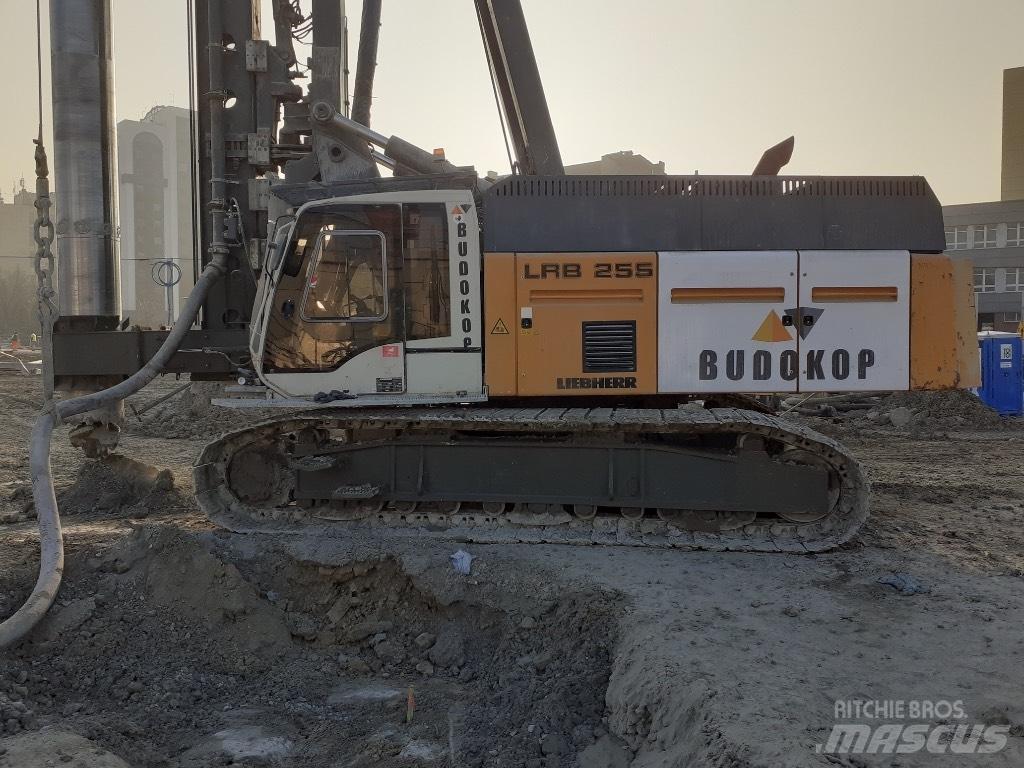

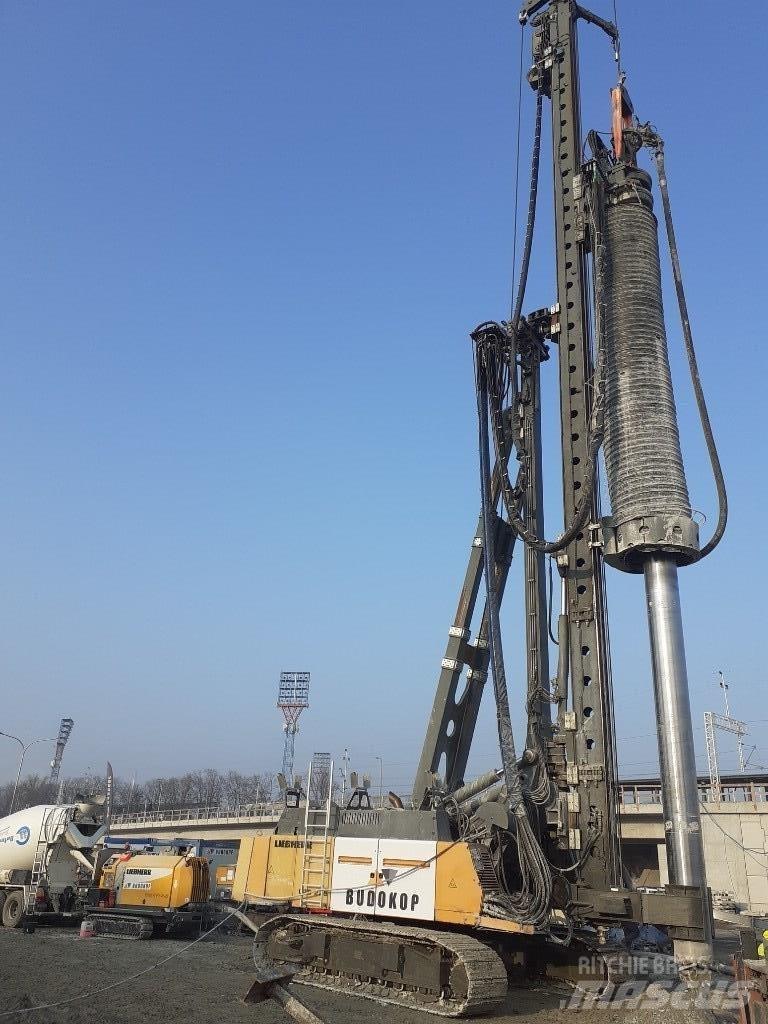

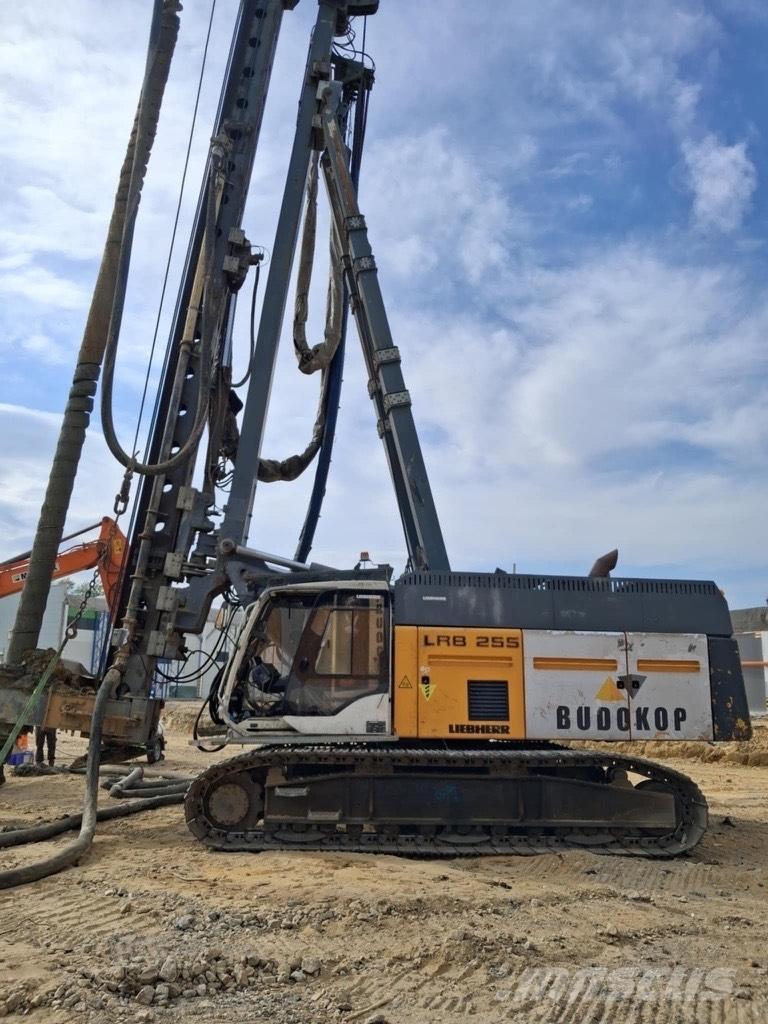

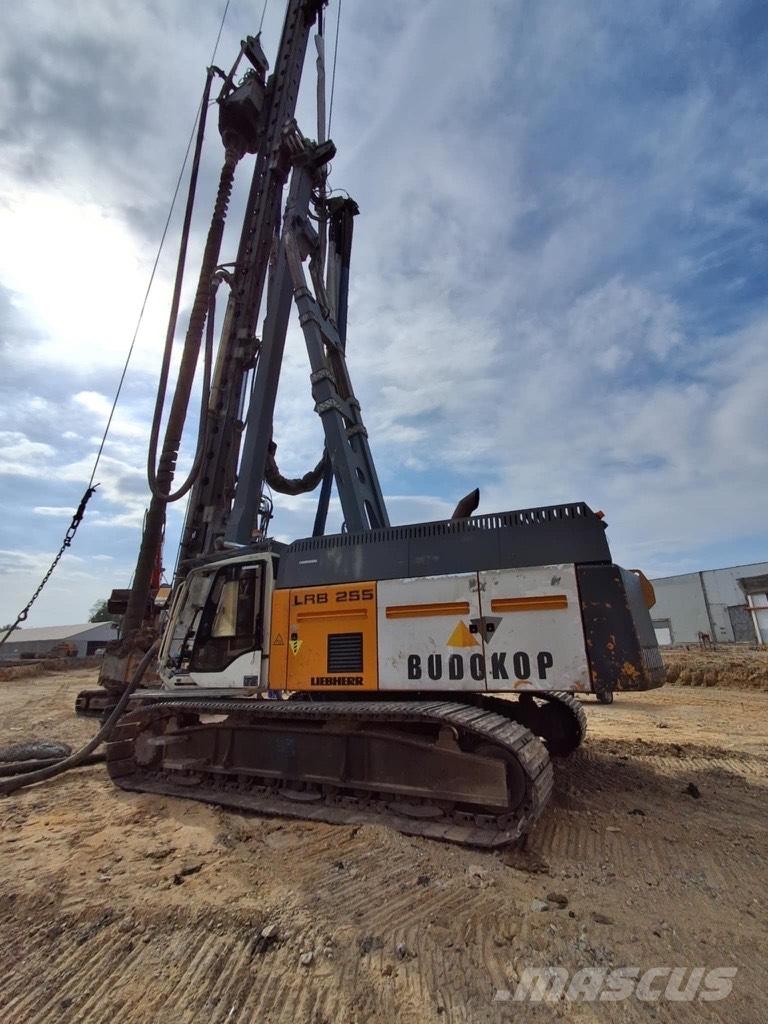

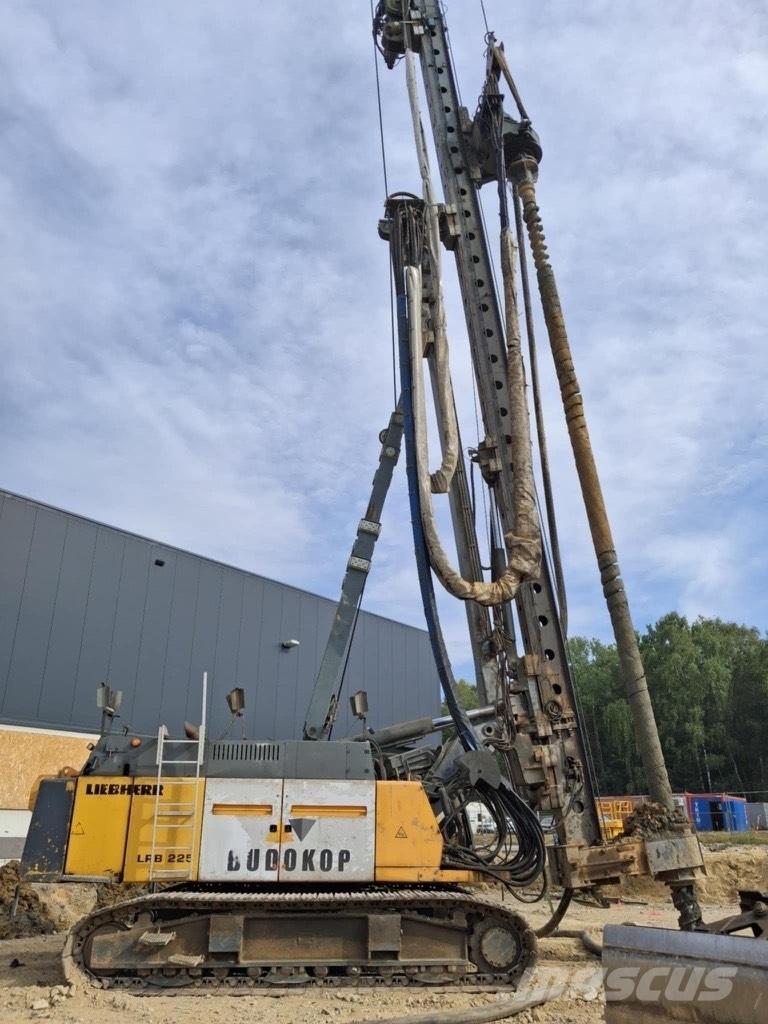

Liebherr LRB255
不含增值稅價格
請向賣家詢價
10
我的最愛
分享
儲存搜尋列印
INFO
產品類別
打樁機
品牌/ 型號
Liebherr LRB255
出廠年份
2008
使用時數
9500 h
機械所在位置（請填城市名，例如台北..等）
Elblag, warmińsko-mazurskie
國家
波蘭
一般級別
1
2
3
4
5
Mascus產品ID碼
A3C4C979
詳細資料
出廠年份/序號
111606
移動類型
履帶式
生產國
奧地利
交貨條件
EXW
其他資料
LRB 255 - 111.606 year 2008
BA 250 - 110.083 year 2008
DBA 300 - 110.348 CCFA-VDW year 2014
Serial no. 111606
Year of manufacturing 2008
Operating hours Approx. 6,200
Engine power (kW) 670 kW Diesel
Winch configuration 1 x 20 t
Description of machine
1.0 Superstructure 670 kW diesel engine, stage 2/Tier 2, with 12,5 t counterweight
2.0 Superstructure additional counterweight 7,3 t 1
3.0 Undercarriage LRB 255 - B7 telescopic, incl. crawler pads 900 mm
4.0 Main winch 20 t with free fall, 30 mm
5.0 Painting in LIEBHERR-design
6.0 Tool set standard
Leader system
7.0 Litronic load indicator for crowd system
8.0 Leader basic unit LRB 255, 17 m, system 440 mm
9.0 Leader extension 4 m with rope crowd system 45 t
10.0 Leader extension LRB 255, 3 m - 3 pcs
11.0 Leader foot hydraulic
12.0 Leader foot plate 1270 x 370 mm
13.0 Leader top for kelly rope
14.0 Leader top for pile/auxiliary rope
15.0 Pile/auxiliary winch 8 t, 20 mm
16.0 Pile/casing guide hydraulic LRB
17.0 Torque support
18.0 Concrete supply hose line LRB, for leader system 440 mm
Application package
19.0 Constant tension for one main winch
20.0 Main winch contact roll
21.0 Litronic working depth indicator for main winch
22.0 Hook (single) 8 t (20 mm)
Crane operation
23.0 Wire rope 90 m, 1770 N/mm²
Drilling equipment
24.0 Additional hydraulics for drilling equipment
Casing oscillating
25.0 Additional hydraulics for casing oscillator
26.0 Leffer guide rails
Vibrator equipment
27.0 Cooler for vibrator-gear oil
28.0 Additional hydraulics for vibrator
Data display- and recording features
29.0 Process data recorder PDE
30.0 Concrete flow meter
Self assembly features
31.0 Counterweight assembly device
Service package
32.0 Central lubrication leader sledge
33.0 Compressor for air tools
34.0 Diesel refuelling pump electric
35.0 Litronic GSM service-modem
Operator's comfort
36.0 Cabin air-conditioner
37.0 Slide window for cabin
Other
38.0 Services included in the purchase
• Load chart.
• Documentation in Polish language.
BA 250 - 110.083
Serial no. 110083
Year of manufacturing 2008
Operating hours Approx. 2,000
1.0 Mitnehmereinheit für Kelly DM 394 auf BA 250
2.0 Single rotary 250 kNm
3.0 Cardan joint 1
Equipment for CFA and full displacement drilling
4.0 Concrete swivel NW 125
Drilling tools and accessory
5.0 Adapter piece universal (11276808) 1
DBA 300 - 110.348 for CCFA/VDW
Serial no. 110348
Year of manufacturing 2014
Operating hours Approx. 2,000
1.0 Double rotary model DBA 300-2, 300/150 kNm, octagonal joint size 190 mm
Drilling equipment
2.0 Hose protection for DBA 160/200/300
3.0 Switch valve concrete or compressed air for DBA 160/200/300
4.0 Transport holder for double rotary顯示更多
BUDOKOP GEOTECHNIKA SP. Z O.O.
Legionów 2 82-300 Elbląg Warmińsko-Mazurskie 波蘭
