Casagrande B175XP
不含增值稅價格
請向賣家詢價
6
我的最愛
分享
儲存搜尋列印
INFO
產品類別
打樁機
品牌/ 型號
Casagrande B175XP
出廠年份
2018
使用時數
4170 h
機械所在位置（請填城市名，例如台北..等）
Middlesbrough, Cleveland
國家
英國
一般級別
1
2
3
4
5
Mascus產品ID碼
D44F3DE1
詳細資料
內部庫存號
PF 40558
狀況/保固
All of our machines are checked and tested to ensure they are in full working condition when they reach your site – that is the Sigma guarantee.
生產國
哥倫比亞
認證
CE
其他資料

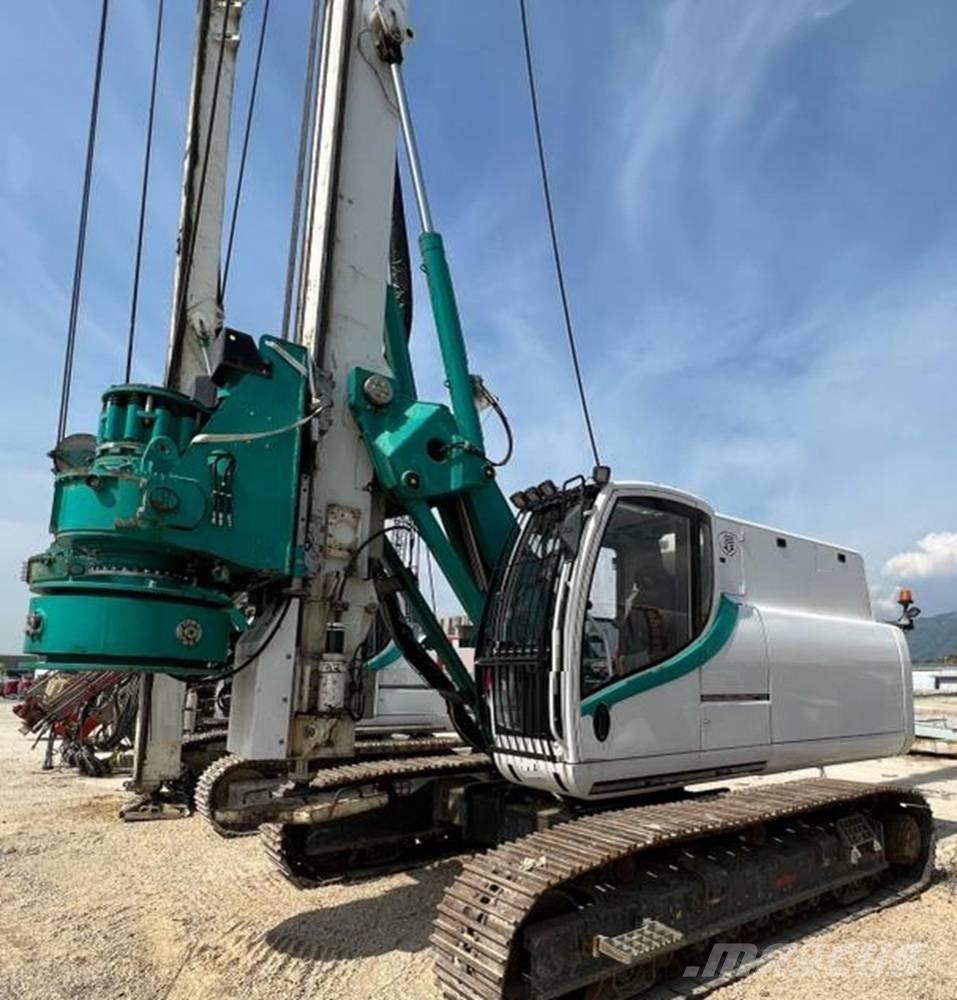

Piling rig with 4170 working hour
Capable of bored piles, CFA & FDP

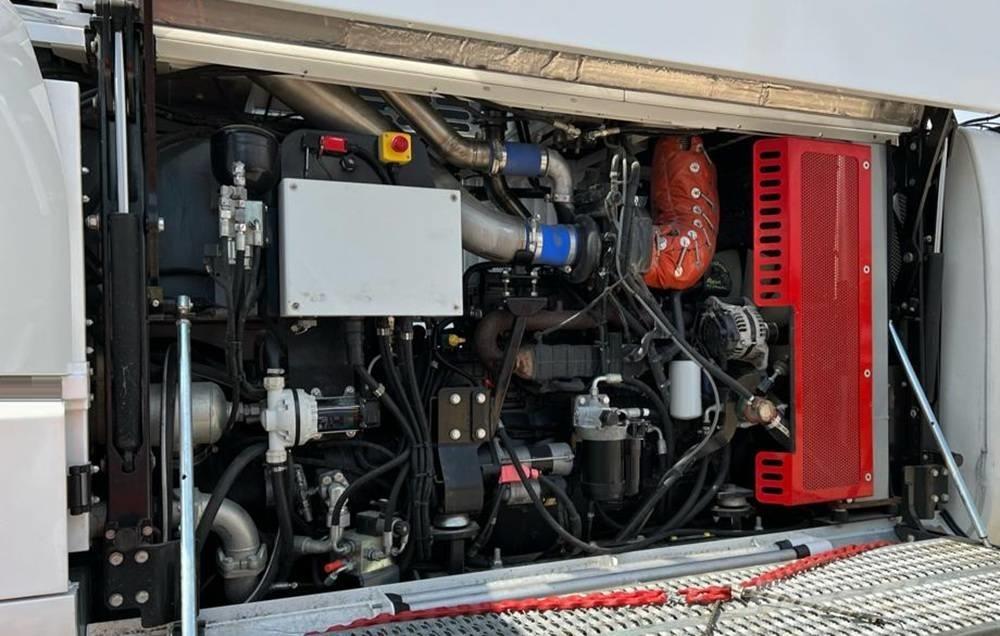

Engine – Cummins QSB 6.7 194kW @ 2200rpm (Stage 4 / Tier 4F)
Undercarriage 2500-3700mm (closed-open)
Rotary head – H18 (max torque 175kNm with cardan joint)
Winches – 160kN main, 70kN auxiliary
Pull down winch – Crowd/extraction force 280kN, stroke 12,300mm
Kelly bar – 4 x 7.5m interlocking (kelly box 130x130mm, diameter 355mm)
Rapid CFA – Special adapter for drive sleeve, wedge for jib, female half joint for augers, 1.2m mast extension, swan neck for concrete pipes, short drive sleeve for CFA complete with reaction bar & inner reduction, 6m long drive sleeve for CFA with reaction bar & inner reduction, lower centering guide for CFA-R.
CE Certified
SIGMA PLANTFINDER LIMITED
Middlesbrough Road TS6 6LZ Middlesbrough Cleveland 英國
