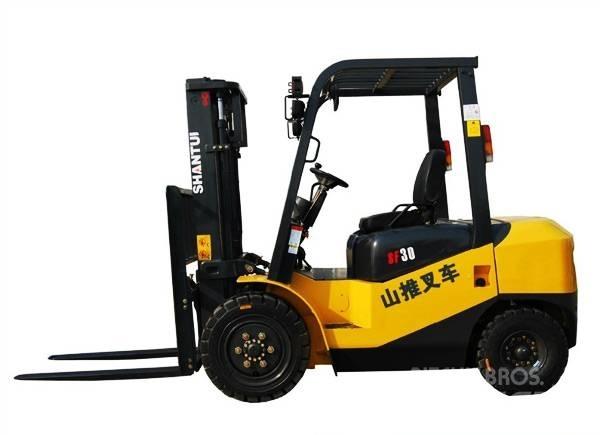

Shantui SF30

不含增值稅價格

請向賣家詢價

Compnay LOGO
Images1
Shantui SF30 其他
Favorite我的最愛
share分享
Save search儲存搜尋
列印

INFO

產品類別
其他
品牌/ 型號
Shantui SF30
出廠年份
2015
額外選項
全新/未使用過
國家
中國
一般級別
1
2
3
4
5
Mascus產品ID碼
A43EB042

詳細資料

售後服務紀錄
有
生產國
中國
交貨條件
FOB, CFR/C&F (Cost and Freight) 運費在內價, CIF
其他資料
ITEM Unit SF30 General Load capacity kg 3000 Load center mm 500 Power type Diesel Dimensions Lift size mm 3000 Free lift height mm 160 Fork size mm 1070×122×45 Mast tilt angle deg 6/12 Fork overhang mm 495 Overall dimensions Full length mm 2704 Full width mm 1226 Height with mast not lifted mm 2140 Height with mast lifted mm 4272 Overhead guard height mm 2140 Minimum turning radius mm 2400 Minimum right angle passage width mm 2100 Performance Drive speed (full load/no load) Hydraulic forklift truck km/h 19/20 Mechanical forklift Gear I 8.8/8.8 Gear II 20/20 Full-load lifting speed mm/sec 450 Maximum gradeability % 20 Curb weight kg 4500/4474 Tires Front wheel 28*9-15-14PR Rear wheel 6.50-10-10PR Wheel & tires Tread Front wheel mm 1000 Rear wheel mm 980 Wheelbase mm 1700 Ground clearance (full load/no load) Mast mm 110/135 Frame mm 130/135 Drive units & control Engine Applicable vehicle type SF30AT Model 490BPG CA498 Rated power kW/rpm 8/573 3/175 Rated torque N.m/rpm 37/475 19/180顯示更多

Jining Haoduo Import and export co., Ltd.

Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 中國
