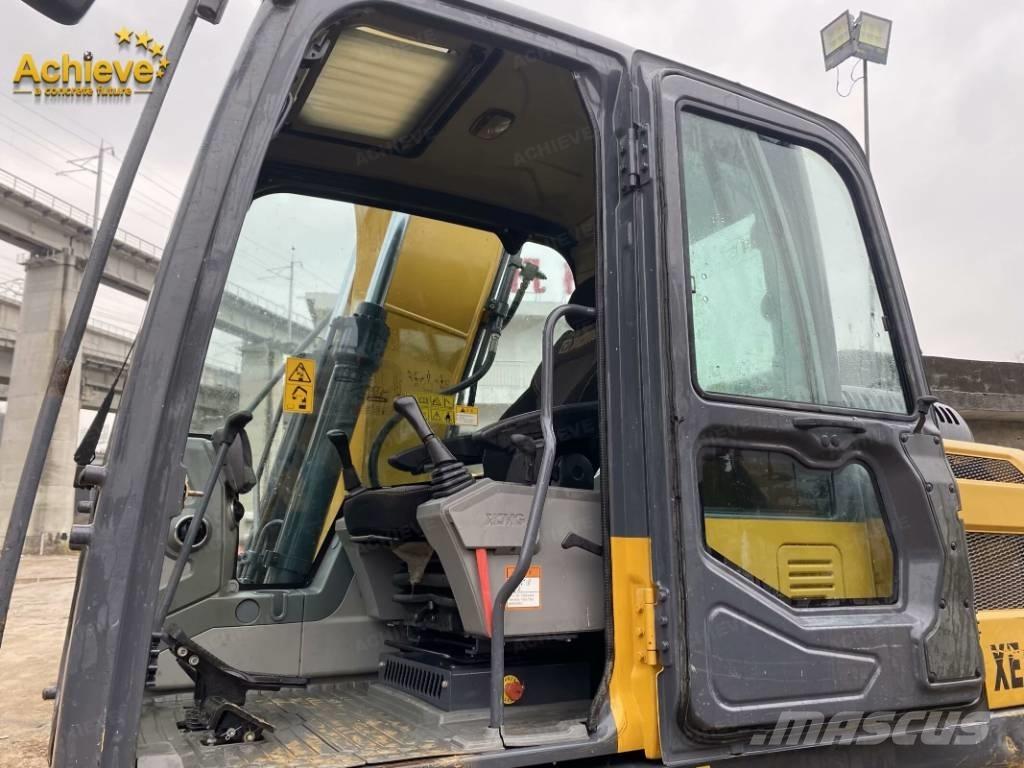

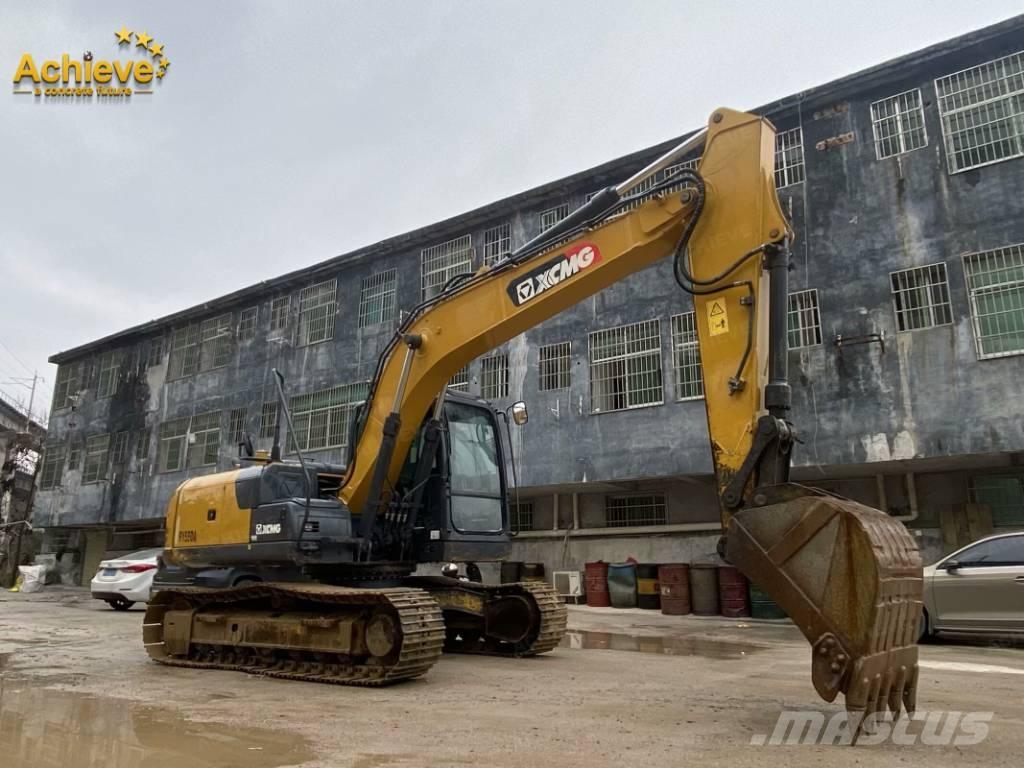

XCMG XE 135 D

XCMG Officical 13 Ton Crawler Excavators XE135D. XE135D adopts a new engine jointly developed by XCMG and Cummins. It has strong power (the highest power among the same tonnage), high torque at low speed and high fuel economy. It can reduce fuel consumption by 7% compared with the previous generation. New generation internationally famous hydraulic elements are of high rated working pressure, high efficiency, precise control, small impact and long service life. Combined with the new generation XEICS intelligent control system independently developed by XCMG excavator, it can make full use of engine output power, with optimized fuel power curve, it can save up to 7% fuel under the same level of operating efficiency. The main structural components are all optimized by FEA, and after long-term high-intensity operation assessment, the service life is longer. 1. Ecological and economical * Customized XCMG exclusive engine can meet Euro stage IV Emission Standard. * Well-known hydraulic components, higher eficiency. * Minicomputer control technology makes operation more economical. 2.Multiple applications * Different boom, arm and bucket combinations can provide excellent all-around versatility. * Multi-functional work tool system can meet various operational requirements including digging, breaking and so on. 3. Comfortable operating experience * Air conditioner and heater ensure the appropriate temperature. * Air-suspension seat equipped with electric heating function. * Integrated control panel and large display screen provide multiple information. Sales model Unit XE135D Operating weight Kg 13200 Bucket capacity m³ 0.32-0.61 Engine Model / QSF3.8 No. of cylinders / 4 Output power kw/rpm 86/2200 Maximum torque/speed N.m/rpm 470/1300 Displacement L 3.8 Main performance Travel speed km/h 5.2/2.9 Swing speed r/min 11 Gradeability ° 35 Ground pressure kPa 40.4 Bucket digging force kN 99.1 Arm digging force kN 68 Maximum traction kN 134 Hydraulic system Rated flow of main pump L/min 125.4*2 Main safety valve pressure MPa 31.4/34.3 Travel system pressure MPa 34.4 Rotary system pressure MPa 25 Pilot system pressure MPa 3.9 Oil Capacity Fuel tank capacity L 260 Hydraulic tank capacity L 105 Engine oil capacity L 11 Appearance size A Overall length mm 7795 B Overall width mm 2525 C Overall height mm 2880 D Width of platform mm 2490 E Track length mm 3648 F Overall width of chassis mm 2490 G Track width mm 500 H Length to center of rollers mm 2918 I Track gauge mm 1990 J Counterweight clearance mm 931 K Min. ground clearance mm 466 L Min. tail swing radius mm 2325 M Track height mm 802 Working scope A Max. digging height mm 8638 B Max. dumping height mm 6174 C Max. digging depth mm 5546 D Maximum depth cut for 2240mm(8 ft) level bottom mm 5335 E Max. vertical wall digging depth mm 4698 F Max. digging radius mm 8304 G Min. swing radius mm 2445 Standard configuration Length of boom mm 4600 Length of arm mm 2520 Bucket capacity m³ 0.52 Optional configuration Length of boom m³ / Length of arm m³ 2100/3010 Bucket capacity m³ 0.32/0.4/0.6
