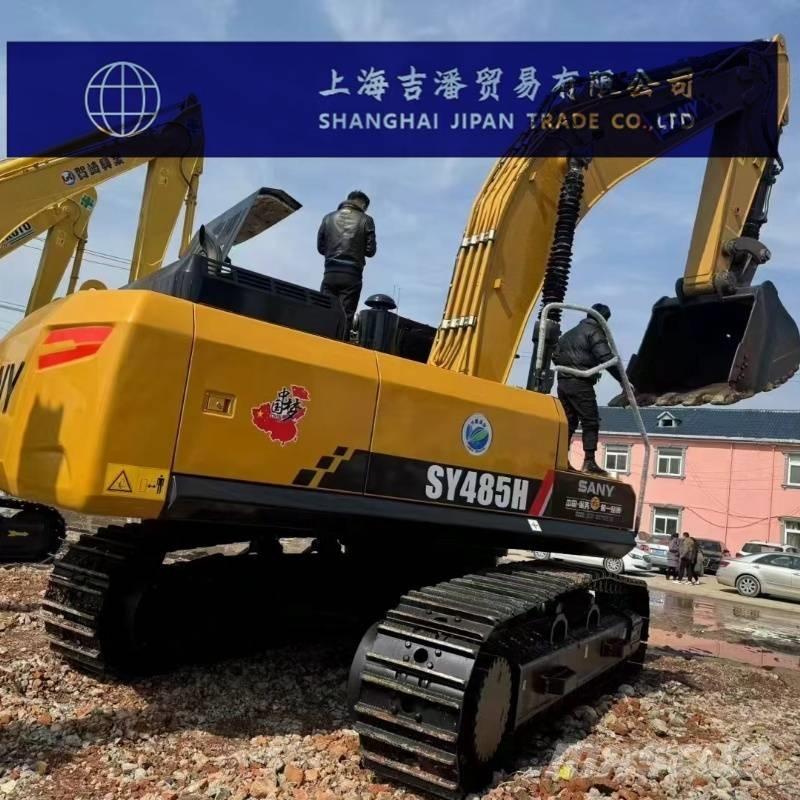

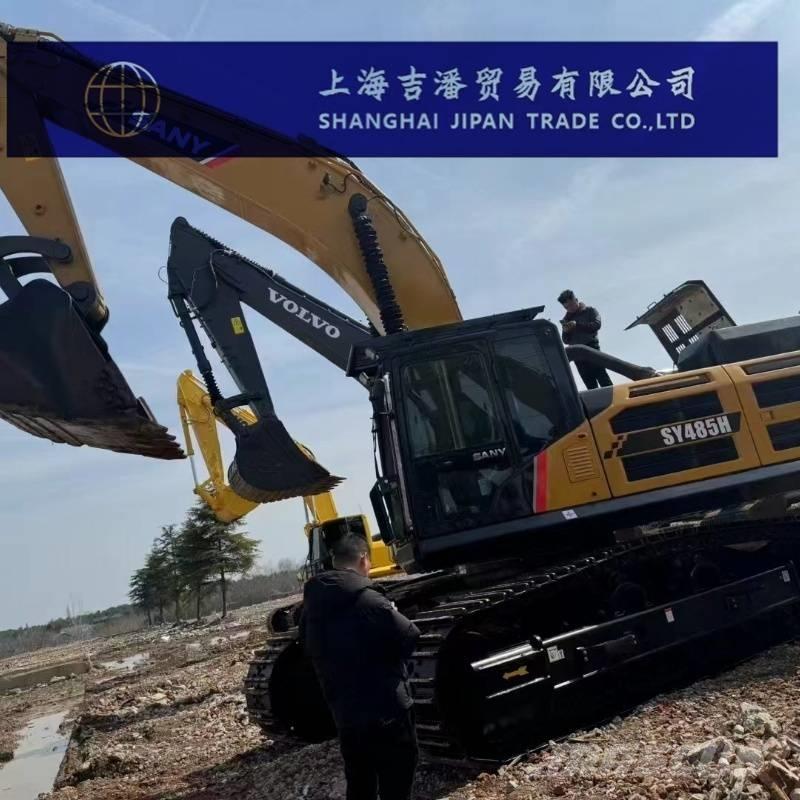

Sany SY 485

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

SANY SY485H excavator parameter configuration specification Power: Traditional power Manufacturer domestic Bucket backhoe Tonnage (tons) 48 The working weight of the whole machine (kg) is 49500 Bucket capacity (m³) 2.2-3.1 performance Rotational speed (rpm) 8 Travel speed (km/h) 5.4/3.1 Climbing ability (%) 70 Grounding specific pressure (Kpa) 87.1 Bucket digging force (kN) 287 Stick digging force (kN) 245 dynamical system Engine model 6WG1X Rated power (kw/rpm) 300/1800 Maximum torque (N.m) 1950/1400 Displacement (L) 15.681 Number of cylinders (pcs) 6 Cooling method: Water cooling Oil capacity Fuel tank (L) 680 Hydraulic Tank (L) 480 Engine oil change volume (L) 50 Body size Total length of transport (mm) 12095 Total Transport Width (mm) 3360 Total height of transport (mm) 3790 Cab total height (mm) 3470 Boarding width (mm) 3290 Track grounding length (mm) 4415 Total track length (mm) 5440 Track shoe width (mm) 600 Track gauge (mm) 2740 Minimum ground clearance (mm) 560 Counterweight ground clearance (mm) 1355 The minimum turning radius of the front working device (mm) is 5240 Maximum height at minimum turning radius (mm) 9100 Rear end turning radius (mm) 3765 Number of support wheels (unilateral) (pieces) 9 Number of support wheels (one side) (pcs) 2 Number of track shoes (single side) (pcs) 50 Scope of work Maximum digging radius (mm) 11860 Maximum digging depth (mm) 7490 Maximum digging height (mm) 10950 Maximum unloading height (mm) 7450 Maximum vertical digging depth (mm) 5660
