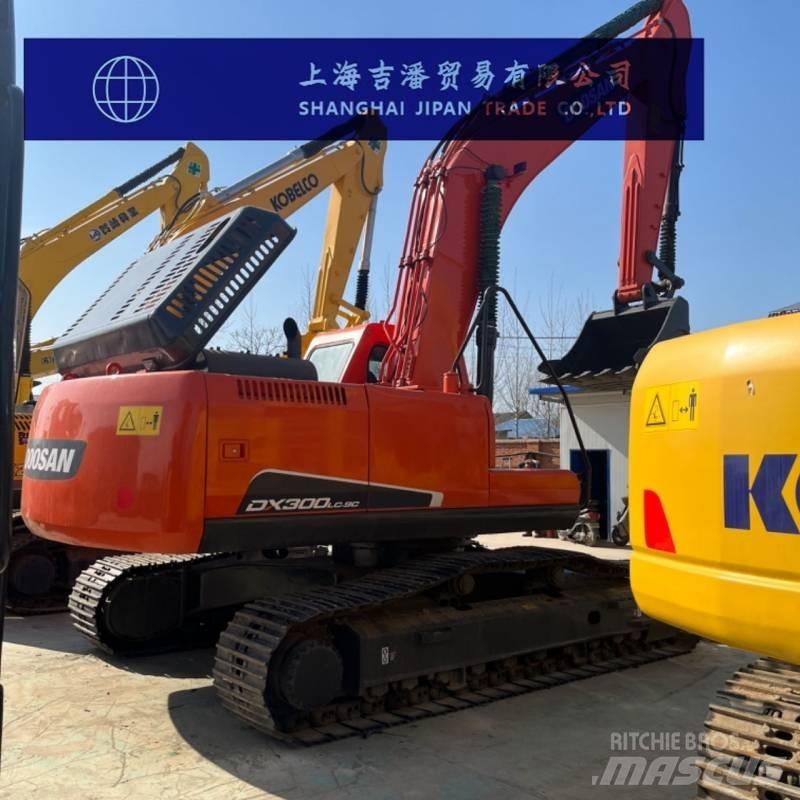

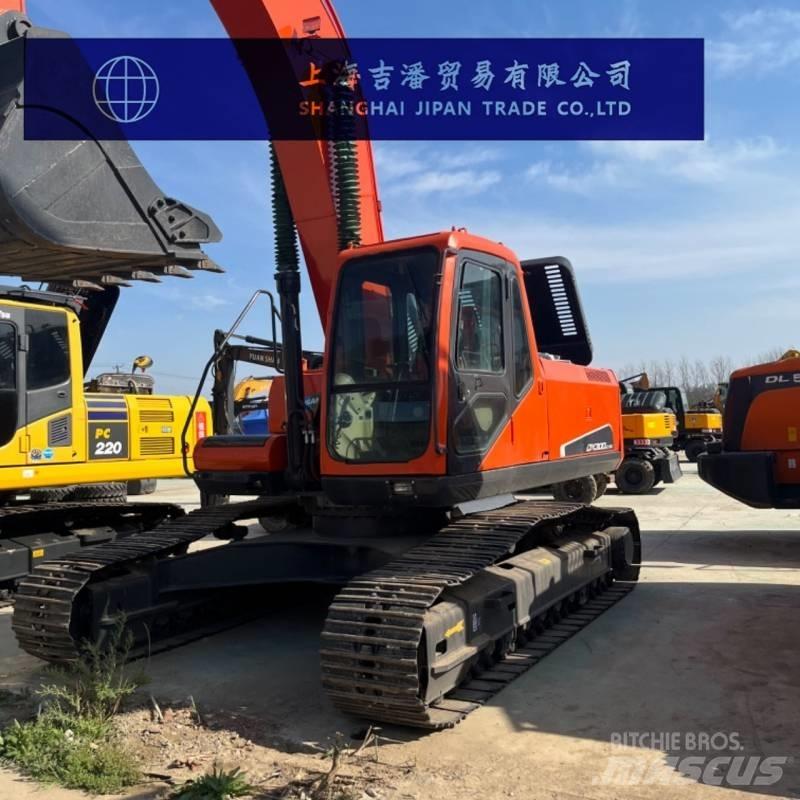

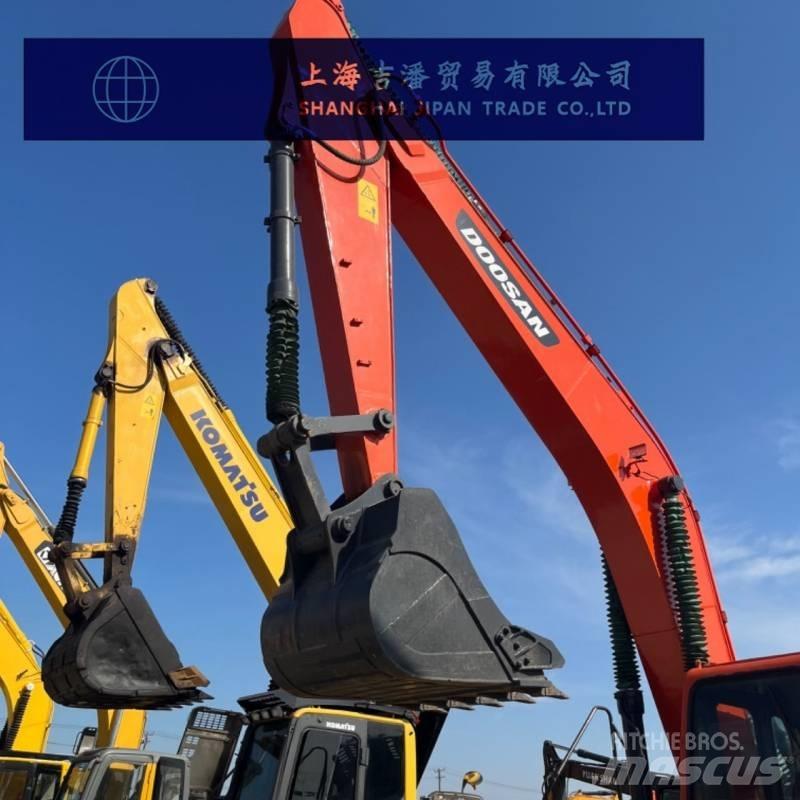

Doosan DX 300

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Doosan DX300LC-9C excavator Specification Power Traditional Power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)30 The overall working weight of the machine (kg) is 30,215 Bucket capacity (m³) : 1.45/1.6 Boom length (mm) : 6245 The length of the boom (mm) is 3100 Performance Rotational speed (rpm) : 9.4 Rotary torque (Nm)11760 Walking speed (km/h) 5.7/3.2 The ground pressure (Kpa) is 0.57 kg/cm ² Bucket digging force (kN) : 183.3 The digging force of the bucket arm (kN) is 128.4 Power system Engine model: DL08 Rated power (kw/rpm) 159/1,900 Number of cylinders (6 Cylinder diameter × stroke (mm)108 *309 Hydraulic system The main pump type is a variable piston pump The maximum flow rate of the main pump (l/min) is 2*248 Oil capacity Fuel tank (L)500 Hydraulic oil tank (L)280 Main body size Total transportation length (mm) : 10,615 The total transportation width (mm) is 3199 The total transportation height (mm) is 3,515 Total track length (mm) : 4,940 Track plate width (mm) : 600 Total width of the tracks (mm) : 3,200 Minimum ground clearance (mm) : 506 The ground clearance of the counterweight (mm) is 1,150 Rear end turning radius (mm) : 3,188 Number of idler wheels (single side) (units)9 Number of idler wheels (single side) (units)2 Number of track plates (single side) (pieces)48 Scope of work Maximum excavation radius (mm) : 10702 The maximum excavation radius of the shutdown face (mm) is 10506 Maximum excavation depth (mm) : 7275 Maximum excavation height (mm) : 10315 Maximum unloading height (mm) : 7303 Maximum vertical excavation depth (mm) : 4907 Maximum effective excavation depth (mm) : 6,455
