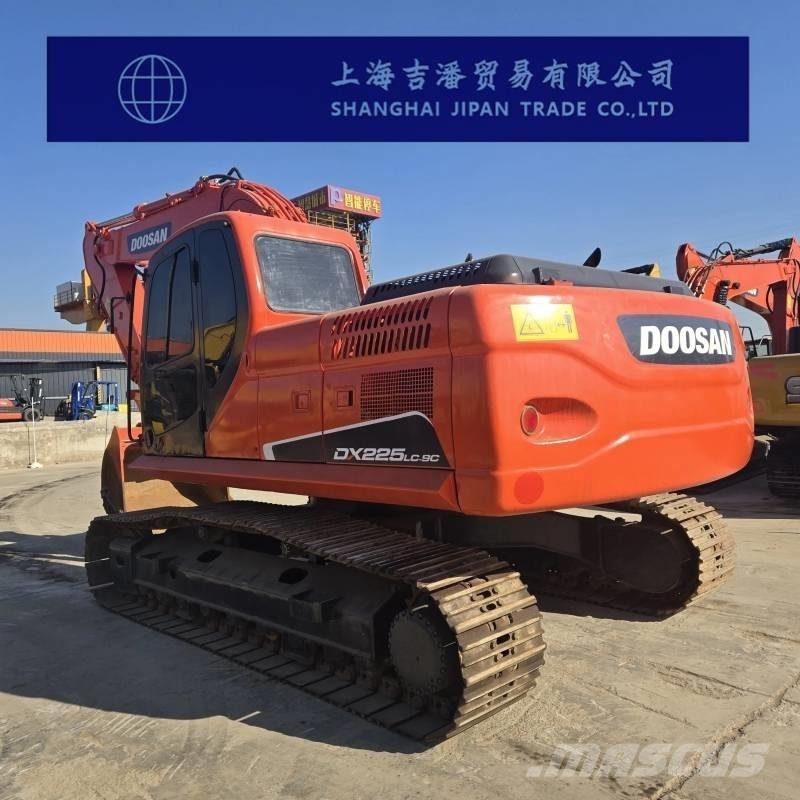

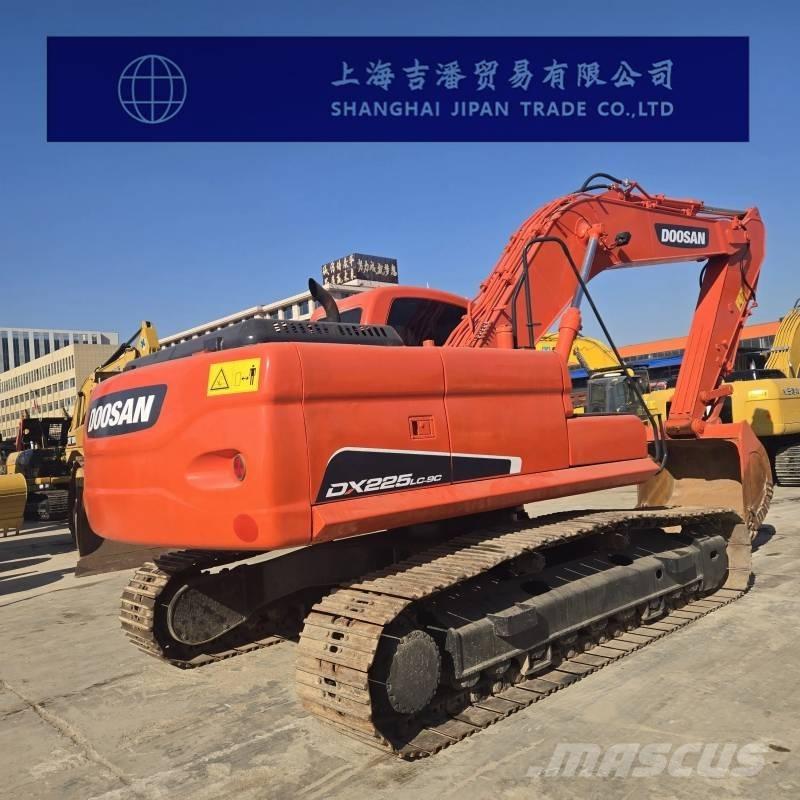

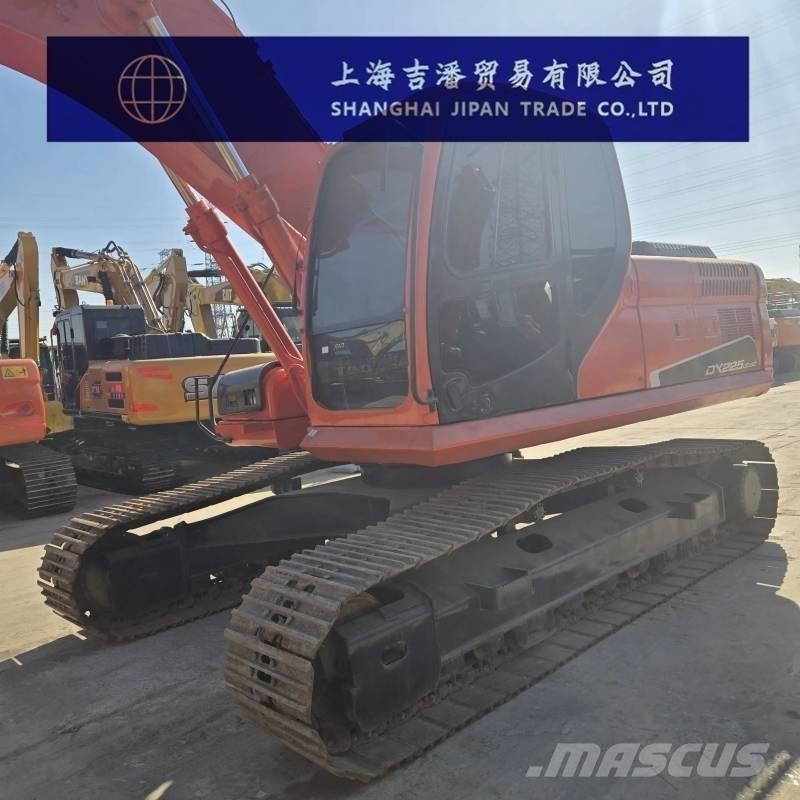

Doosan DX 225

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Information Equipment Model: DX225LC-9C Excavator Weight Class: 21.8 tons Travel Mode: Crawler-type Bucket Type: Backhoe Application: Mining Engine System Engine Brand: Doosan Model: DL06 Type: Inline turbocharged Rated Power: 115kW (154 hp) at a rated speed of 1900r/min Total Displacement: 5.890L Number of Cylinders: 6, with a bore × stroke of 100×125mm Performance Parameters Operating Weight: 21800kg Bucket Capacity: 1.05m³ Travel Speed: High/low: 5.7/3.1km/h Swing Speed: 10.5rpm Ground Pressure: 44Kpa Bucket Digging Force: 152kN Arm Digging Force: 108kN Boom Length: 5700mm Arm Length: 2900mm Overall Dimensions Length × Width × Height (Transport State): 9506×2990×3005mm Total Height of Cab: 2891mm Counterweight Ground Clearance: 1096mm Track Ground Contact Length: 3635mm Total Track Length: 4440mm Track Shoe Width: 600mm Total Track Width: 2990mm Minimum Ground Clearance: 475mm Minimum Swing Radius (Front Attachment): 3560mm Rear Swing Radius: 2794mm Working Range Maximum Digging Radius: 9873mm Maximum Digging Radius at Ground Level: 9699mm Maximum Digging Depth: 6592mm Maximum Digging Height: 9616mm Maximum Dumping Height: 6830mm Maximum Vertical Digging Depth: 3929mm Fluid Capacities Fuel Tank: 400L Hydraulic Oil Tank: 195L Engine Oil Change Capacity: 27L Coolant: 26L Hydraulic System Main Pump Type: Variable displacement piston pump, axial piston type ×2 Maximum Flow of Main Pump: 2×212L/min Travel Hydraulic Motor Type: Axial piston hydraulic motor Swing Hydraulic Motor Type: Wet multi-disc brake Working Hydraulic Circuit Pressure: 350kgf/㎡ Travel Hydraulic Circuit Pressure: 350kgf/㎡ Swing Hydraulic Circuit Pressure: 270kgf/㎡
