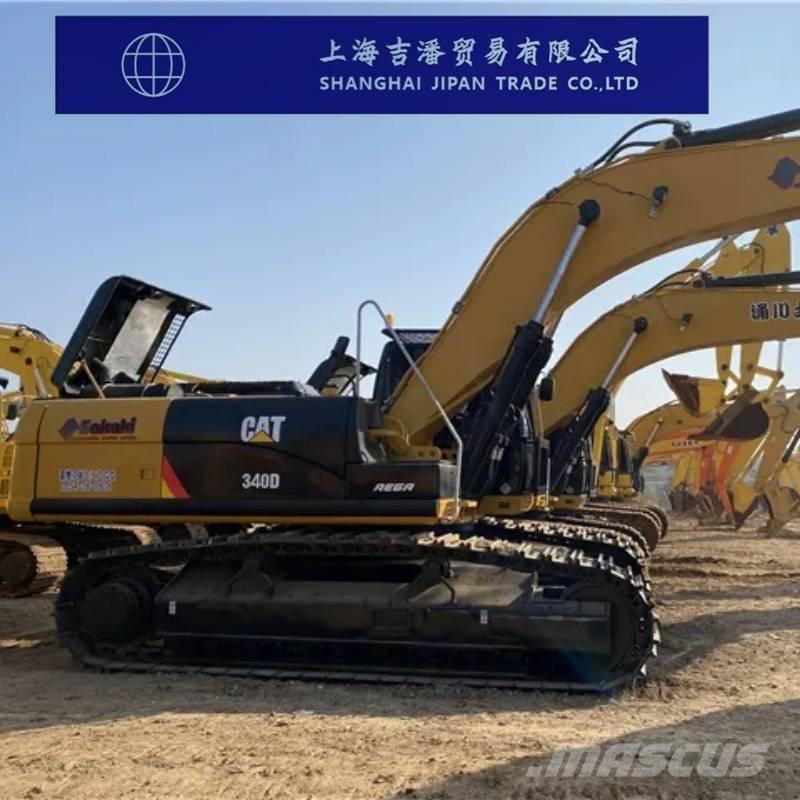

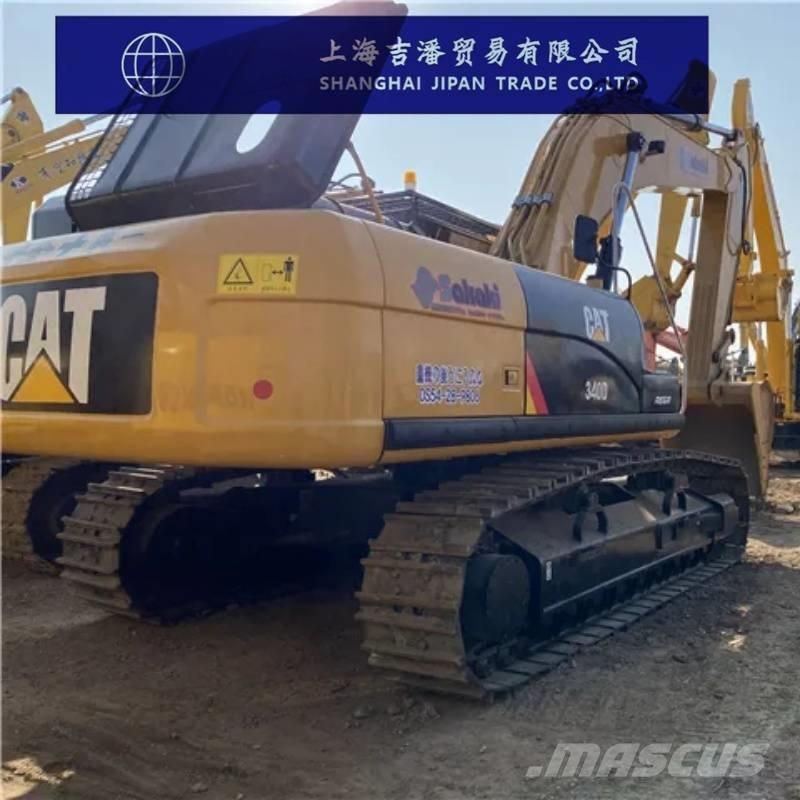

CAT 340 D

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Engine Model: Cat C9.3B Net Power - ISO 9249: 346 hp (258.3 kW) Engine Power - ISO 14396:2002: 347 hp (259 kW) Bore: 5 in (115 mm) Stroke: 6 in (149 mm) Displacement: 568 in³ (9.3 l) Operating Weight: 85,300 lb (38,700 kg) Digging Dimensions Maximum Digging Depth: 24.9 ft (7,590 mm) Maximum Reach at Ground Level: 36.5 ft (11,130 mm) Maximum Digging Height: 33.9 ft (10,340 mm) Maximum Loading Height: 23 ft (7,010 mm) Bucket - Related Bucket Capacity: HD 2.38 m³ (3.11 yd³) Bucket Digging Force - ISO: 46,850 lbf (208 kN) Stick Digging Force - ISO: 36,820 lbf (164 kN) Hydraulic System Main System – Maximum Flow: 148 gal/min (560 l/min) Maximum Pressure - Implement: 5,076 psi (35,000 kPa) Maximum Pressure - Implement - Lift Mode: 5,511 psi (38,000 kPa) Maximum Pressure - Travel: 5,076 psi (35,000 kPa) Maximum Pressure - Swing: 4,264 psi (29,400 kPa) Others Fuel Tank Capacity: 158.5 gal (US) (600 l) Cooling System Capacity: 10.5 gal (US) (40 l) Engine Oil Capacity: 8.5 gal (US) (32 l) Swing Drive - Each: 4.8 gal (US) (18 l) Final Drive - Each: 2.1 gal (US) (8 l)
