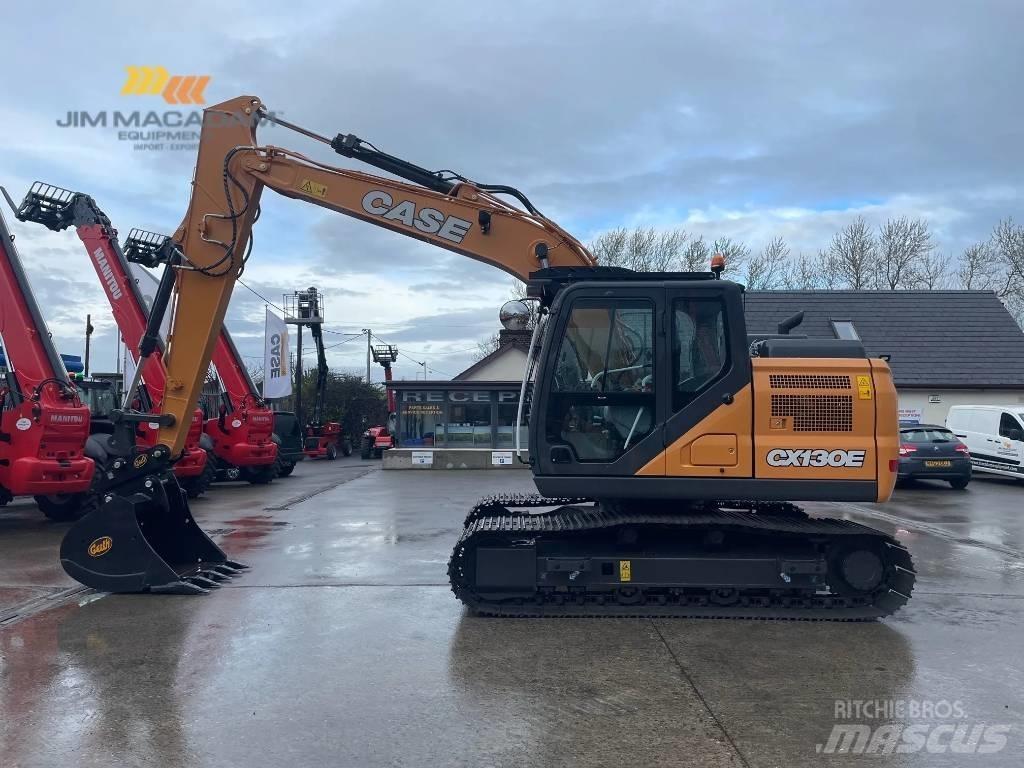

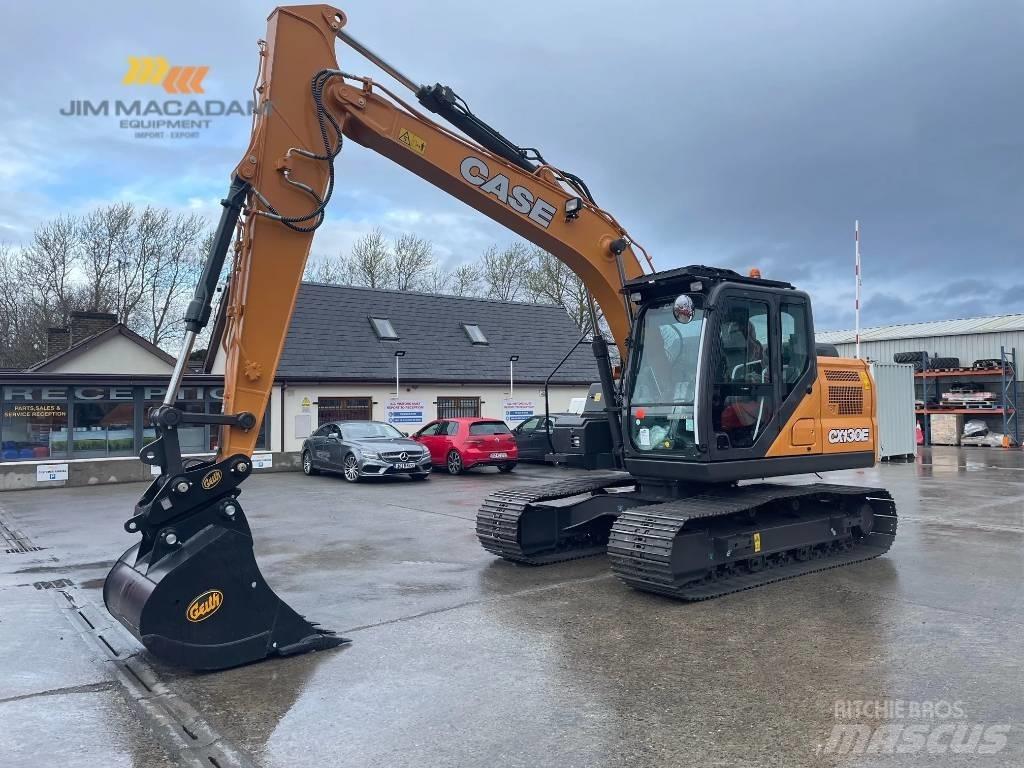

Case CX 130 E
不含增值稅價格
請向賣家詢價
7
我的最愛
分享
儲存搜尋列印
INFO
產品類別
履帶式 挖土機/掘鑿機/挖掘機
品牌/ 型號
Case CX 130 E
出廠年份
2023
額外選項
全新/未使用過
機械所在位置（請填城市名，例如台北..等）
Dublin, Dublin
國家
愛爾蘭
Mascus產品ID碼
288DB0F1
詳細資料
引擎/發動機
NEF4
總重
13300 kg 公斤
引擎/發動機 輸出功率
78.8 kW 千瓦 (107 hp 馬力)
發動機制造商
FPT
排放級數
Stage V
交貨條件
EXW
其他資料
ENHANCED PRECISION AND CONTROLLABILITY
Smooth control, efficient operation – more than ever
The trademark CASE Intelligent Hydraulic System (CIHS) is now paired with new work modes and adjustable hydraulic settings to deliver smoother and more efficient operation than ever before.
ENHANCED VERSATILITY
A high degree of customization for every task
The new-concept work modes with independent throttle position offer a precise match to the requirements of every task:
SP (Super Power) mode for maximum productivity (as in D-Series) with the throttle set at maximum power.
P (Power) mode replaces H and A mode in D-Series, with throttle settings from 1 to 10.
E (Eco) mode for maximum fuel economy, with throttle settings from 1 to 10.
L (Lifting) mode is optimized for object handling with power boost permanently activated and overload warning system, and throttle settings from 1 to 6.
The choice of available work modes can be locked by the machine owner.
NEW The ground-breaking Eco mode reduces fuel consumption through selective control of engine and pump depending on the movement. It maintains maximum pump torque to deliver high productivity, while minimizing fuel consumption during low effort operations.
The balance of the hydraulic flows can also be customized to suit the operator’s preferences:
+ “Arm In” vs “Boom Up”
+ “Arm In” vs “Swing”
The Case Cx130E Series takes versatility even further by enabling the operator to select the type of work tool and input the customizable model number on the machine’s monitor.
When selecting the flow and pressure settings, they can also set the maximum overflow to protect the attachment.
ENHANCED EFFICIENCY
Top performance, high fuel economy
The new-generation E-Series combines the proven energy saving features of the D-Series with new work modes and hydraulic settings to raise the bar on efficiency.
The advanced automatic energy management system inherited from the D-Series consists of six key energy control functionalities:
+ Pump Torque Control: prevents drops in engine speed due to over torque in high load operations while reducing fuel consumption in operations where maximum pump power is not required.
+ Boom Economy Control: increases fuel efficiency during boom down and swing movements.
+ Swing Relief Control: reduces the initial pump flow while improving control at the start of swing movements to lower fuel consumption.
+ Spool Stroke Control: automatically adjusts pressure based on the sensors’ feedback, avoiding unnecessary functionality.
+ Auto Idle / Idle Shutdown: customizable and manually switchable functions that lower engine rpms after a period of inactivity or shut down the engine after a period of idling.
With all these features, coordinated by the CASE Intelligent Hydraulic System, together with the new FPT engine and improved travel motor for additional mechanical efficiency, the E-Series excavators deliver unprecedented performance and high fuel economy.
The Case CX130E hydraulics have been further improved thanks to a 12% increase in the pump flow rate output.
CLEANER POWER
EU Stage V compliant engines
The new FPT NEF engines meet Stage V standards with the innovative HI-eSCR2 solution developed in-house, which only uses a Diesel Oxidation Catalyst and an integrated maintenance-free device on the SCR catalyst to achieve this dramatic reduction in emissions.
+ The SCR-on-Filter is “built-for-life” and requires no replacement or mechanical cleaning for its entire guaranteed emission regulation life.
+ The air intake flow is increased by a turbocharger with air-to-air cooling.
+ The multiple injection delivers best-in-class high torque performance at low rpms.
+ No EGR valve means 100% fresh air is used for combustion and no extra cooling system is required.
The new Stage V NEF engines can take their low-emission performance even further, as they can operate on B7 biodiesel and HVO.顯示更多
