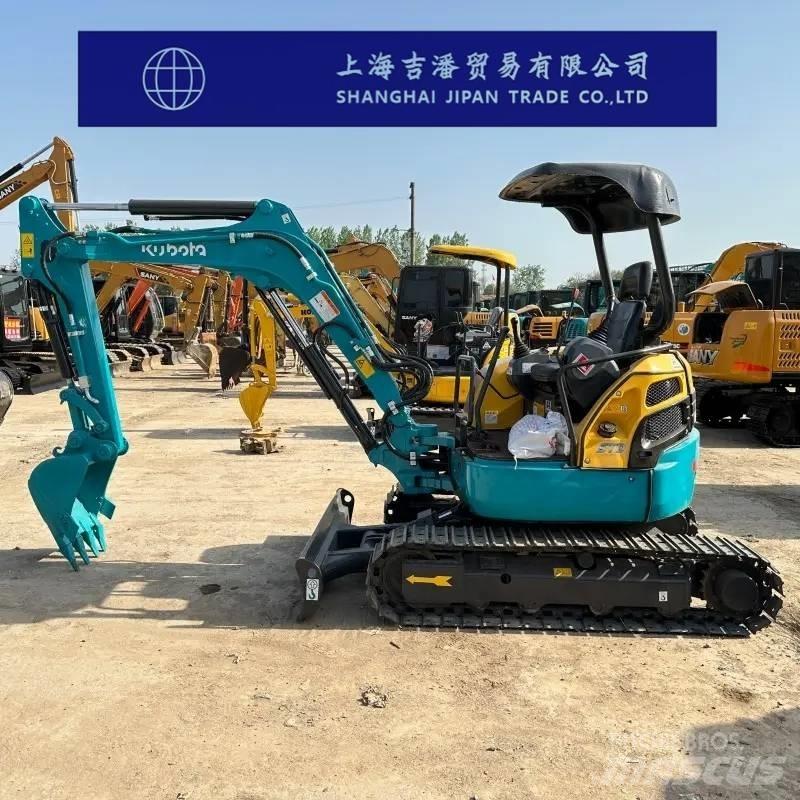

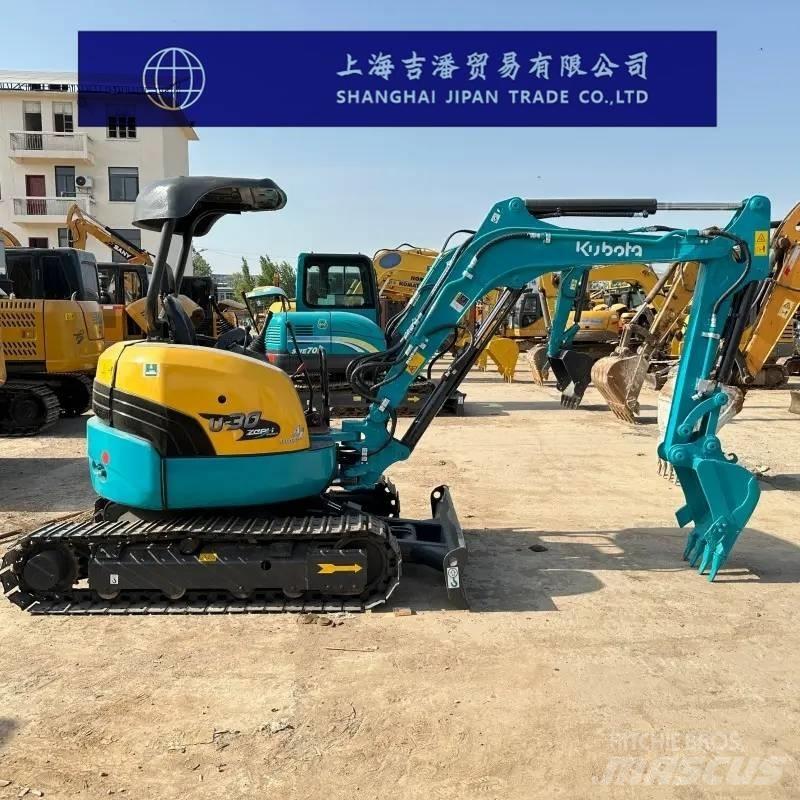

Kubota U 30
不含增值稅價格
列印
INFO
產品類別
小型挖土機/掘鑿機<7t(小型挖掘機)
品牌/ 型號
Kubota U 30
出廠年份
2024
使用時數
500 h
國家
中國
一般級別
1
2
3
4
5
Mascus產品ID碼
E8A376C6
定價
幣別選擇
詳細資料
內部庫存號
1
出廠年份/序號
1
動力類型
柴油
最新檢驗紀錄
2025-07-04
前擁有者數量
1
底盤狀態
Good Condition
總重
3648 kg 公斤
註冊編號
1
排放級數
Stage V
履帶寬度
300 mm 公釐
鏟斗容積
0.08 m3
運輸尺寸(長x寬x高)
4573 x 1550 x 2482 mm 公釐
出廠顏色
Original
引擎/發動機
Original
引擎/發動機 輸出功率
18.5 kW 千瓦 (25.2 hp 馬力)
發動機制造商
Original
狀況/保固
1 Year
生產國
日本
交貨條件
FCA, FOB, CIF, EXW
認證
EPA, CE
附屬裝置
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
配件
其他資料
Overall machine parameters
The overall working weight of the machine is 3648kg
Bucket capacity: 0.08m³
Bucket width: 520/470mm
Power type: Traditional power
Manufacturer: Joint venture/Imported
Bucket: Backhoe
Tonnage: 3 tons
Engine parameters
Engine model: D1703-E4
Rated power: 18.5kW/2200rpm
Displacement: 1.647L
Performance parameters
Rotational speed: 9rpm
Walking speed: 3.0/4.6km/h
Climbing ability: 30°
Bucket digging force: 29.5kN
Hydraulic system parameters
Main pump type: 2 variable pumps + 2 gear pumps
Walking hydraulic motor type: 2-speed plunger hydraulic motor
Rotary hydraulic motor type: Plunger hydraulic motor
Oil capacity
Fuel tank: 45.1L
Main body size parameters
Total transportation length: 4,573mm
Total transportation width: 1550mm
Total transportation height: 2482mm
Total track length: 2081mm
Track plate width: 300mm
Minimum ground clearance: 287mm
Minimum turning radius of the front working device: 2164mm
Rear end turning radius: 900mm
Operation scope parameters
Maximum excavation radius: 4,951mm
Maximum excavation depth: 2825mm
Maximum excavation height: 4,558mm
Maximum unloading height: 3141mm
Maximum vertical excavation depth: 1988mm
The width × height of the bulldozer board is 1550×341mm
Bulldozer lift or depth push: 366/375mm
