CAT CAT305.5E2

不含增值稅價格

Images10

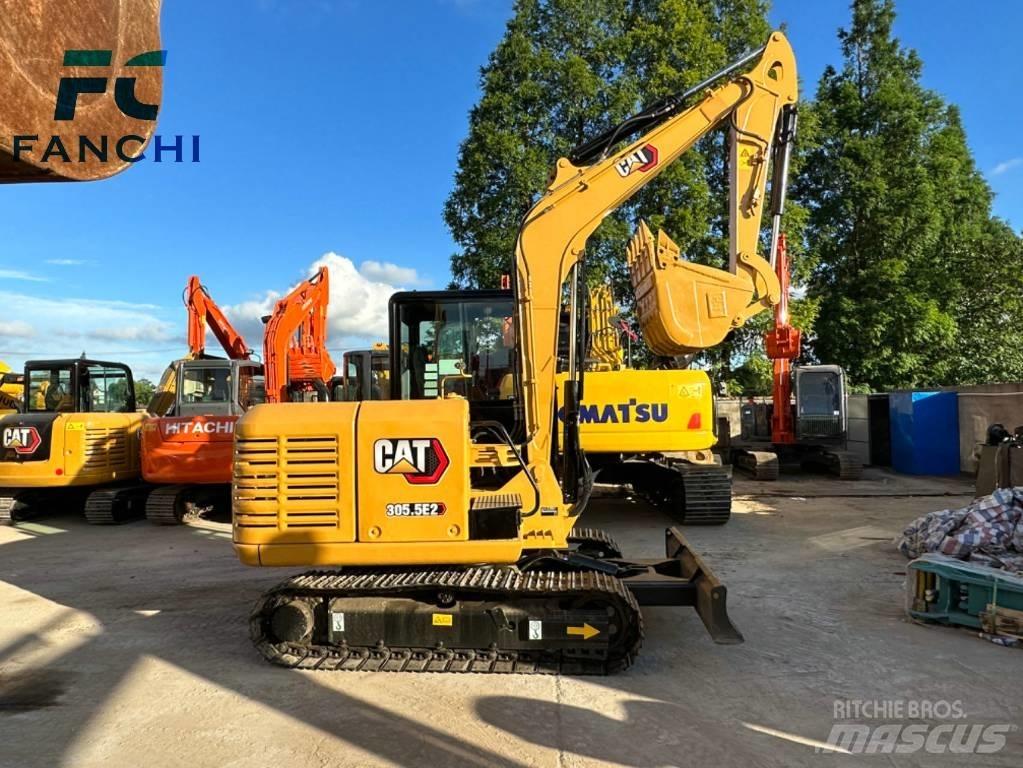

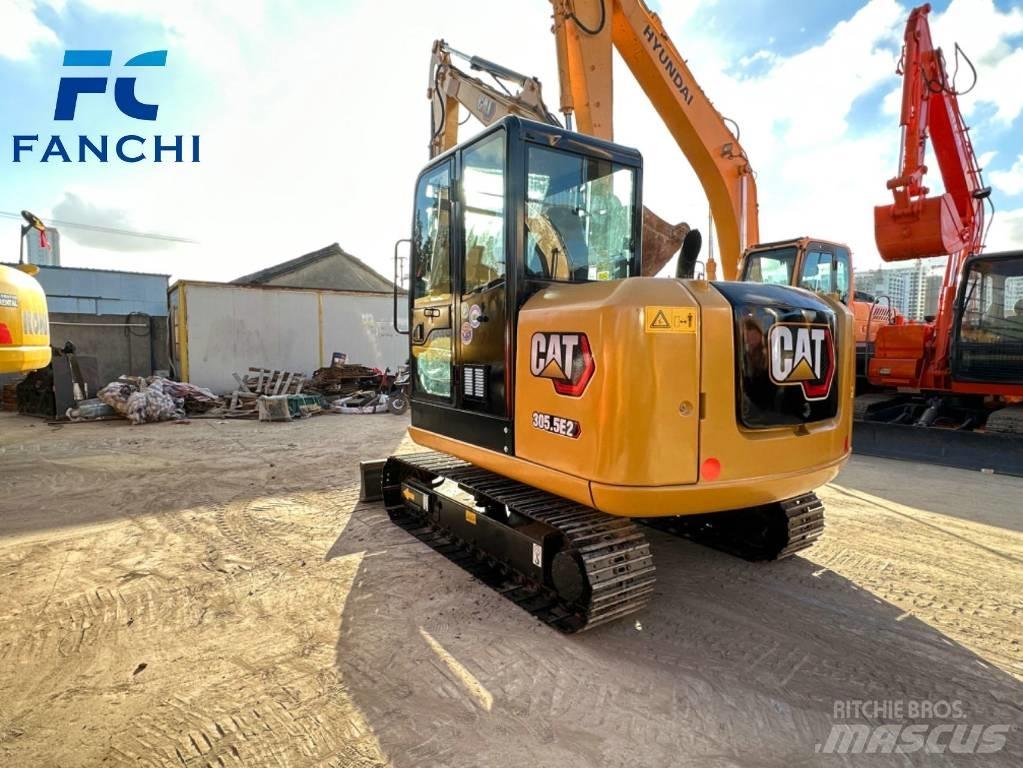

CAT CAT305.5E2 小型挖土機/掘鑿機<7t(小型挖掘機)
CAT CAT305.5E2 小型挖土機/掘鑿機<7t(小型挖掘機)
CAT CAT305.5E2 小型挖土機/掘鑿機<7t(小型挖掘機)
Favorite我的最愛
share分享
Save search儲存搜尋
列印

INFO

產品類別
小型挖土機/掘鑿機<7t(小型挖掘機)
品牌/ 型號
CAT CAT305.5E2
出廠年份
2024
使用時數
450 h
額外選項
再製造
國家
中國
一般級別
1
2
3
4
5
Mascus產品ID碼
77BC2619

定價

幣別選擇

詳細資料

動力類型
柴油
售後服務紀錄
有
前擁有者數量
1
底盤狀態
good
總重
5500 kg 公斤
排放級數
Stage V
履帶寬度
400 mm
鏟斗容積
0.22 m3
運輸尺寸（長x寬x高）
576519502.54 m 公尺
出廠顏色
YELLOW
鏟斗/斗桿長度
960 mm
引擎/發動機
Cat C2.4 DI
引擎/發動機 輸出功率
34.1 kW 千瓦 (46.4 hp 馬力)
發動機制造商
JAPAN
狀況/保固
good
生產國
日本
交貨條件
FOB, CIF, EXW
認證
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, 美國機械工程師協會
附屬裝置
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
配件
支架電線盒
冷氣設備
附加液壓設備
觸媒還原劑
顯示更多
其他資料
The performance parameters of the Caterpillar CAT305.5E2 excavator are as follows: 1. **Overall Dimensions of the Machine** - Total transportation length: 5765mm, total transportation width: 1950mm, total transportation height: 2540mm, minimum ground clearance: 628mm, rear swing radius: 1580mm, total track length: 2440mm, track gauge: 1550mm, track shoe width: 400mm, center distance between idler wheels: 1920mm. 2. **Operating Weight** - The operating weight of the whole machine is 5400kg. 3. **Bucket Capacity** - The bucket capacity is 0.22 cubic meters. 4. **Power System** - Engine model: Cat C2.4 DI, rated power: 34.1kW, cylinder bore: 87mm, stroke: 102.4mm, displacement: 2.4L. 5. **Performance Parameters** - Swing speed: 10.5rpm. - Gradability: 50%. - Bucket digging force: 35.0kN. - Stick digging force: 27.2kN. - Maximum drawbar pull: 40.2kN. - Travel speed: 4.3/2.8km/h. - Swing torque: 13.9N·m. 6. **Hydraulic System** - Maximum main pump flow: 140L/min. The type of the main pump is a load sensing hydraulic system equipped with a variable displacement piston pump, and the working hydraulic circuit pressure is 25MPa. 7. **Oil Capacity** - Fuel tank: 78L, hydraulic oil tank: 58L, engine oil change capacity: 9.5L, coolant: 9.8L. 8. **Working Range** - Maximum digging radius: 5955mm. - Maximum digging depth: 3720mm. - Maximum digging height: 5460mm. - Maximum unloading height: 3835mm. - Maximum vertical digging depth: 2210mm. 9. **Bulldozer Blade Parameters** - Lifting or pushing depth: 365mm/480mm, width×height of the bulldozer blade: 1950mm×360mm.顯示更多

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 中國
