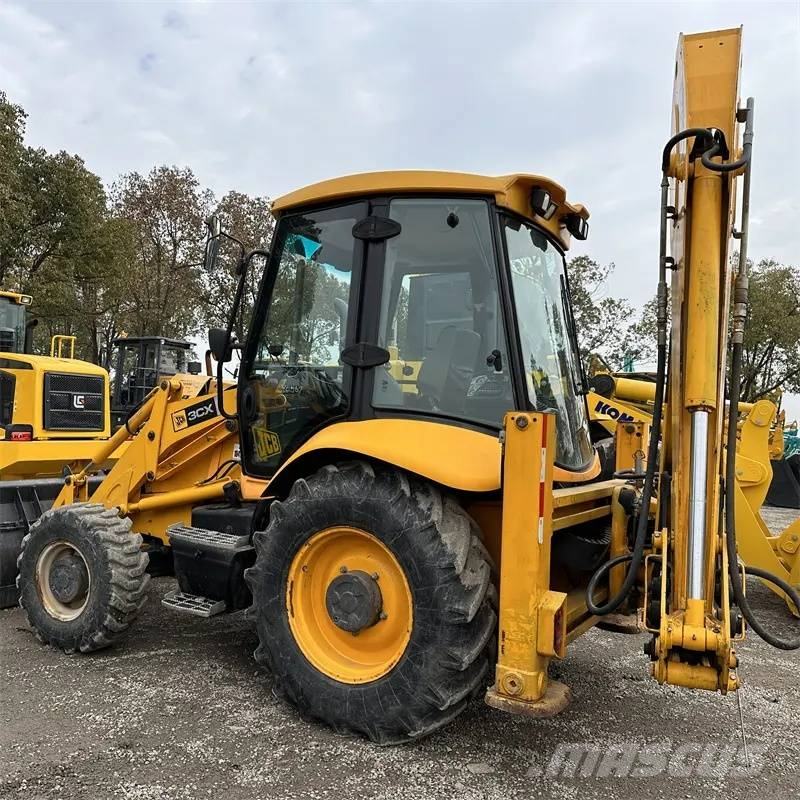

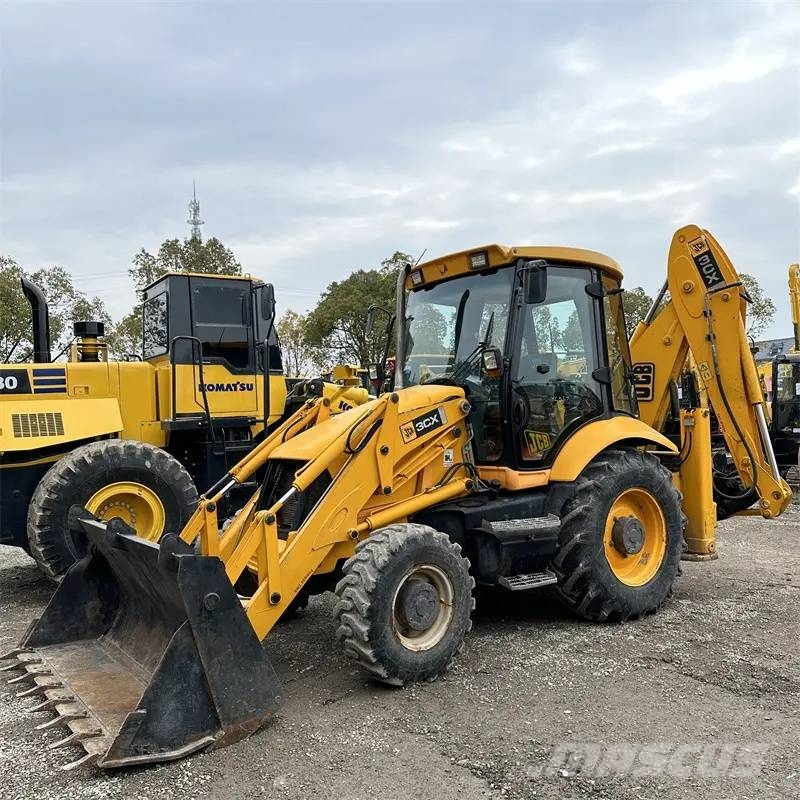

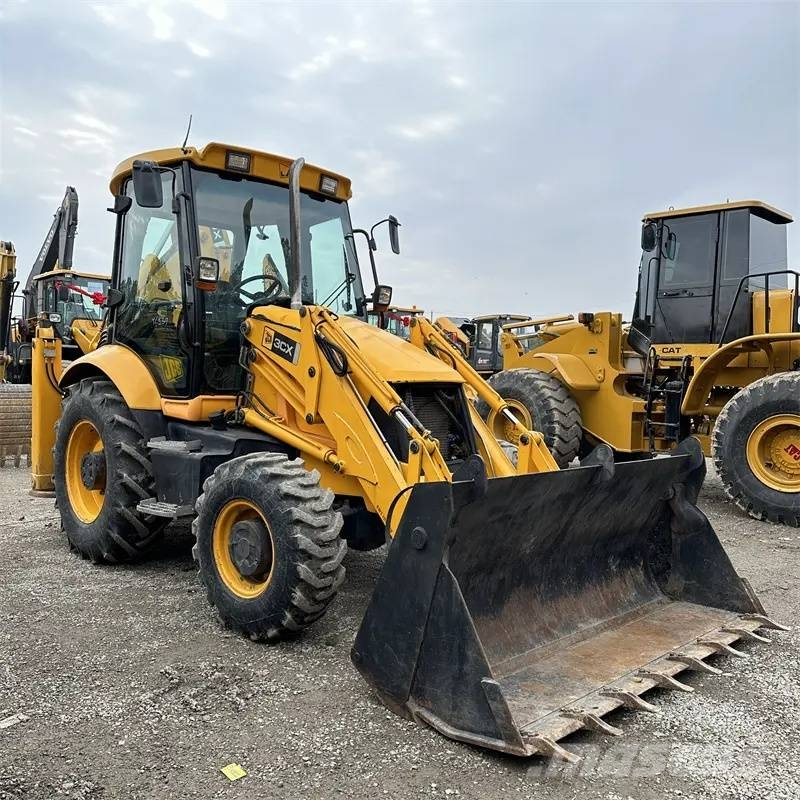

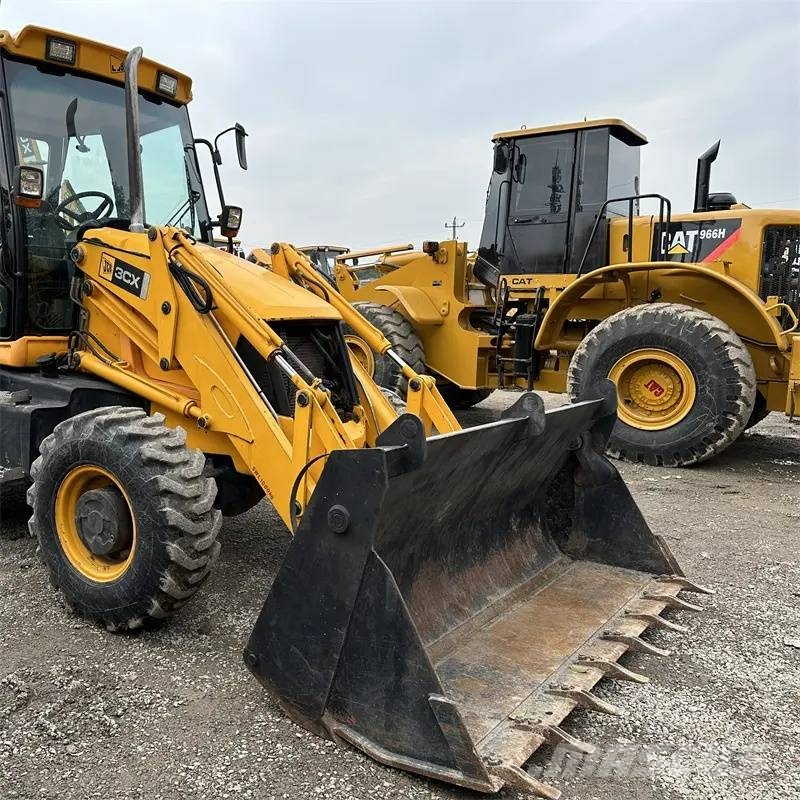

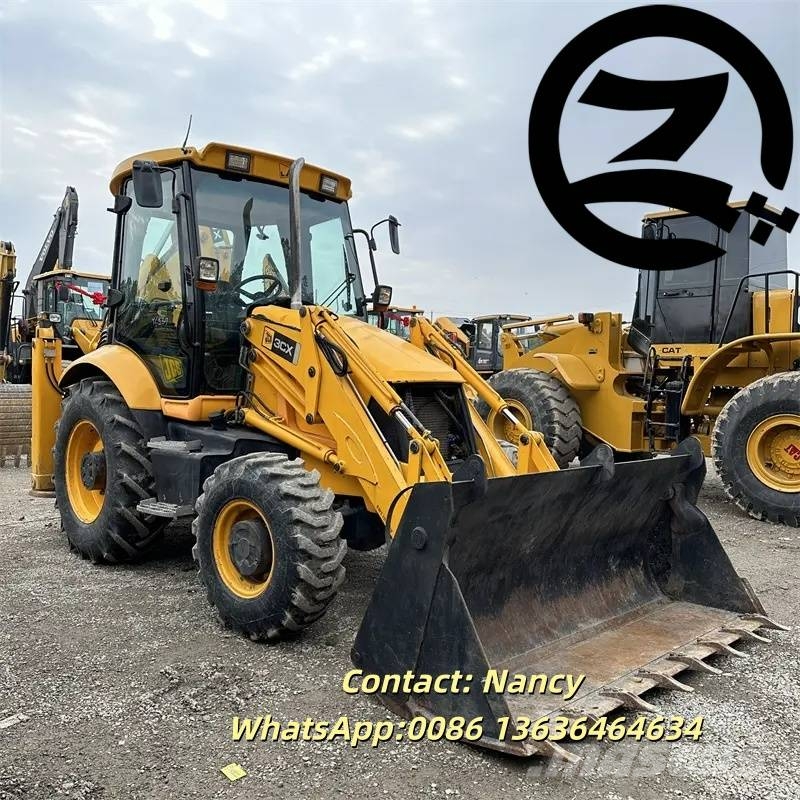

JCB 3 CX

Company name:LONG WAY TRADING CO.,LTD Address:1898th Zaoxiang road ,Anyang City ,Henan province,China Contact: Nancy Tel : +8617739124690 WhatsApp:0086 13636464634 Wechat:17739124690 Email:

### Engine JCB DieselMAX 444, 4-cylinder turbocharged, 4.4L Rated power: 68kW (92hp) @2200rpm ECO version: 55kW. Stage V emission standard, SCR equipped. ### Operating Weight 7702 kg (standard). 8.0~8.3 t with extendable dipper & 6-in-1 bucket. ### Digging Depth Standard dipper: 4.21 m Extendable dipper: max 5.97 m ### Front Loader Bucket Standard capacity: 1.0 m³ Optional 6-in-1 multi-purpose bucket: 1.1~1.2 m³ ### Travel Speed Max 40 km/h, 4WD, optional limited slip differential. ### Hydraulic System Triple pump hydraulic circuit. Hammer lines fitted as standard. Auxiliary hydraulic flow: approx. 123 L/min, suitable for breaker, planer and other attachments. ### Overall Transport Dimensions (Standard Cab) Length: 5620 mm Width: 2350 mm Height: 3610 mm ### Lifting Capacity Front lift load: approx. 4188 kg. Rear backhoe lifting capacity varies by working radius. ### Certification Latest Stage V models with CE certification for EU market. CE status of older Tier3 machines depends on manufacture year. ### Fuel Consumption Approx. 7~9 L/h under normal site working conditions (lower for ECO mode). ## Model Versions 1. **3CX ECO**: 55–68kW, fuel saving, ideal for municipal & earthmoving work 2. **3CX PLUS**: 81kW, TorqueLock torque converter lock-up, heavy duty applications 3. **3CX PRO**: Top configuration, joystick control, auto transmission, high flow hydraulics ## Key Features - Standard backhoe side-shift design, excellent for confined sites - ROPS / FOPS safety cab - JCB LiveLink remote monitoring system - Wide range of attachments: 6-in-1 bucket, pallet forks, hydraulic breaker, rake, compaction wheel - Max travel speed up to 40 km/h, self-driving for short-distance relocation without trailer
