Bobcat T 630
不含增值稅價格
10
我的最愛
分享
儲存搜尋列印
INFO
產品類別
滑移轉向裝載機
品牌/ 型號
Bobcat T 630
出廠年份
2016
使用時數
1900 h
機械所在位置（請填城市名，例如台北..等）
Claremont, California
國家
美國
一般級別
1
2
3
4
5
Mascus產品ID碼
C8F120EB
定價
幣別選擇
詳細資料
引擎/發動機
V3307-DI-TE3
引擎/發動機 輸出功率
54.7 kW 千瓦 (74.3 hp 馬力)
發動機制造商
Bobcat
其他資料

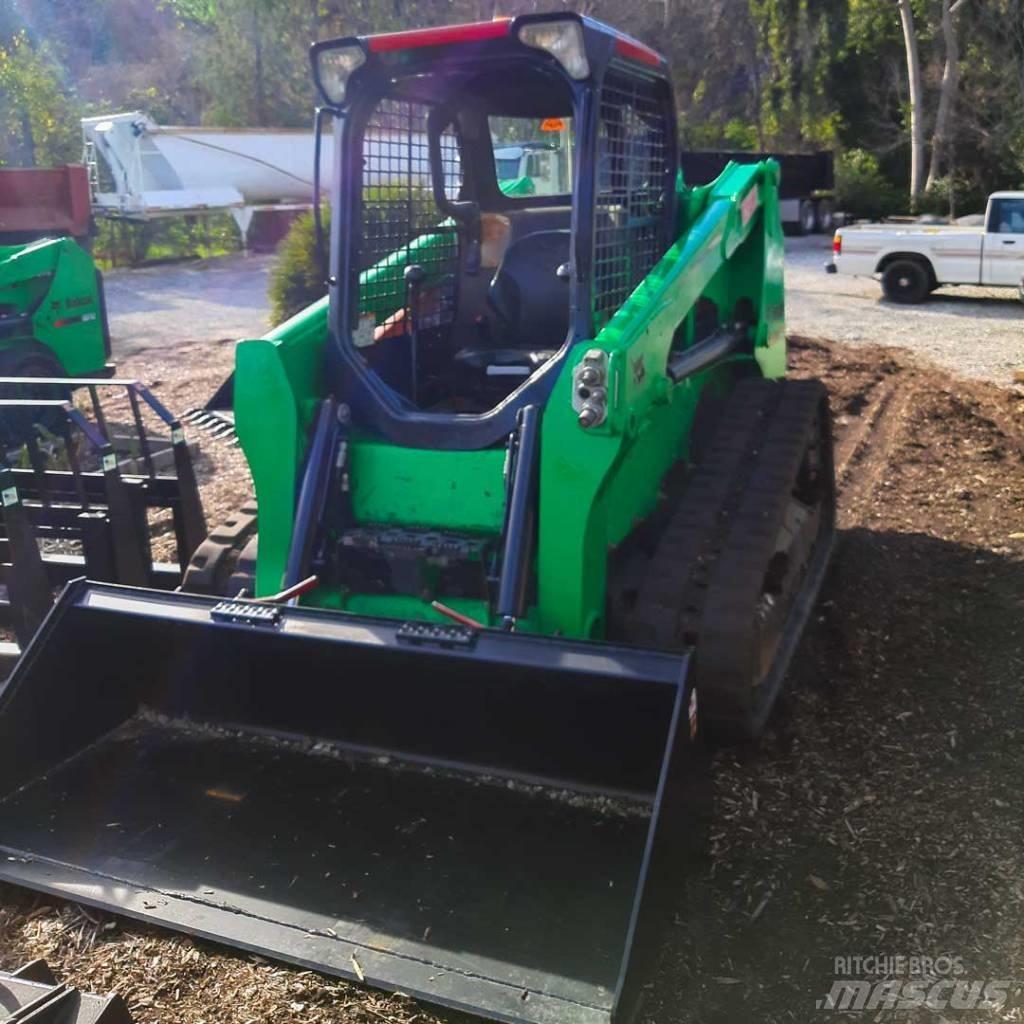

2016 Bobcat Skid Steer Compact Loader, Kubota Diesel Engine, Liquid Cooled, 74HP, Turbo Charged, Fully Hydrostatic, Rubber Track Drive, AC, & LoJack, All-Maintenance Points Serviced! 1,900 hours, Ready to work!
Engine
-Make: Kubota
-Model: V3307-DI-TE3
-Engine Tier: Interim Tier IV
-Fuel: Diesel
-Cooling: Liquid
-Horsepower: SAE J1995 Gross - 74.3 HP at 2400 RPM ISO 9249 EEC SAE J1349 Net - 70.3 HP at 2400 RPM
-Torque: SAE J1995 Gross - 195.0 ft.-lb. at 1600 RPM ISO 9249 EEC SAE J1349 Net - 186.7 ft.-lb. at1600 RPM
-Low Idle RPM: 1250 - 1450
-High Idle RPM: 2525 - 2650
-Number of Cylinders: 4
-Displacement: 203 cu. in.
-Bore Stroke: 3.70 in. 4.72 in.
-Lubrication: Gear Pump Pressure System with Filter
-Crankcase Ventilation: Closed Breathing
-Air Cleaner: Dry replaceable paper cartridge with separate safety element
-Ignition: Diesel - Compression
-Air Induction: Turbo-Charged
-Engine Coolant: Propylene Glycol Water Mixture
-Starting Aid: Glow Plugs - Automatically activated as needed in RUN position.
Drive System
-Main Drive: Fully hydrostatic, rubber track drive
-Transmission: Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic drive motors
-Tracks (Tension): Grease cylinder and spring
Controls
-Vehicle Steering: Direction and speed controlled by two hand operated steering levers or optional joystick(s)
Loader Hydraulics
-Lift and Tilt: Controlled by separate foot pedals or optional Advanced Control System (ACS)
-Front Auxiliary: Controlled by electrical switch on Right Hand steering lever or joystick
-Auxiliary Pressure Release: Pressure relieved through quick couplers; Push couplers in, hold for 5 seconds
-Engine: Hand lever speed control; key-type start switch or optional Deluxe Instrumentation Panel and function error shutdown.
-Starting Aid: Glow plugs automatically activated as needed by Instrument Panel
-Service Brake: Two independent hydrostatic systems controlled by two hand operated steering evers or optional joystick(s)
-Secondary Brake: One of the hydrostatic transmissions
-Parking Brake (Standard): Spring applied pressure release multi-disk brake activated by manually operated switch on left instrument panel
Hydraulic System
-Pump Type: Engine driven, gear type
-Pump Capacity - Standard: 23.0 GPM
-Pump Capacity - High-Flow Option: 30.5 GPM
-System Relief at Quick Couplers: 3450 - 3550 PSI
-Filter (Hydraulic Hydrostatic): Replaceable beta 10 micron = 200, drop in element
-Filter (Charge): Replaceable beta 10 micron = 200, drop in element
Hydraulic Cylinders: Double-acting; tilt cylinders have cushioning feature on dump and rollback
-Bore Diameter: Lift Cylinder (2) - 2.50 in. Tilt Cylinder (2) - 3.00 in.
-Rod Diameter: Lift Cylinder (2) - 1.75 in. Tilt Cylinder (2) - 1.63 in.
-Stroke: Lift Cylinder (2) - 33.87 in. Tilt Cylinder (2) - 13.97 in.
-Control Valve - Standard: 3-Spool, open center, manually operated with spring detent for lift float and electrically controlled auxiliary spool
-Control Valve - ACS and SJC: 3-Spool, open center with electric actuator controlled lift with float and tilt. Electrically controlled auxiliary spool
-Fluid Lines: SAE Standard tubelines, hoses and fittings
-Fluid Type: BOBCAT FLUID, Hydraulic Hydrostatic 6903117 - (Two - 2.5 Gal.) 6903118 - (5 Gal.) 6903119 - (55 Gal.)
Hydraulic Function Time
-Raise Lift Arms: 3.4 Seconds
-Lower Lift Arms: 3.0 Seconds
-Bucket Dump: 2.3 Seconds
-Bucket Rollback: 1.7 Seconds
Capacities
-Fuel: 27.3 Gal.
-Engine Oil with Filter Change: 12.0 qt.
-Engine Cooling System: with Heater - 3.1 Gal. without Heater - 3.0 Gal.
-Hydraulic Hydrostatic Reservoir: 2.7 Gal.
-Hydraulic Hydrostatic System: 11.0 Gal.
-Hydrostatic Drive Motor (Each): 7.1 fl. oz.
(NOTE: AVAILABLE ONLY VIA APPOINTMENT. PLEASE GET IN TOUCH AND SCHEDULE AN APPOINTMENT.)顯示更多
