Putzmeister M36-4Z

不含增值稅價格

Images36Videos1

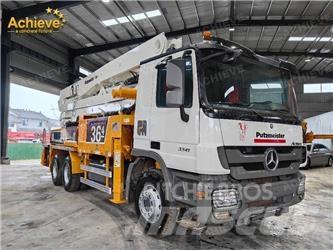

Putzmeister M36-4Z 混凝土泵浦
Putzmeister M36-4Z 混凝土泵浦
Favorite我的最愛
share分享
Save search儲存搜尋
列印

INFO

產品類別
混凝土泵浦
品牌/ 型號
Putzmeister M36-4Z
出廠年份
2013
使用時數
2000 h
額外選項
整機品,再製造
機械所在位置（請填城市名，例如台北..等）
Hunan
國家
中國
一般級別
1
2
3
4
5
Mascus產品ID碼
BFD4155B

定價

幣別選擇

詳細資料

內部庫存號
AICPT001
懸臂節數
4
最新檢驗紀錄
2024-09-26
售後服務紀錄
有
總重
26000 kg 公斤
吊臂長度
4 m 公尺
最大水平長度
32.4 m 公尺
最大垂直範圍
35.6 m 公尺
移動類型
固定式
泵浦功率類型
柴油
泵浦功率
300 kW 千瓦
運輸尺寸（長x寬x高）
11500 x 2500 x 3900 mm 公釐
排放級數
Stage V
發動機制造商
Mercedes Benz OM501LA.III/17
泵浦種類
活塞
泵浦資料
General Information Delivery Line (DN, Pressure) DN 125/5.5 mm/bar Support width Standard (front-rear) 5.5/7.2 m Support width OSS (front-rear) 4.0/5.9 m Support width ESC (front-rear) 4.0/5.1 m Configuration Concrete Pump .1
底盤製造商
Mercedes Benz
輪胎品牌
Mercedes Benz
生產國
中國
交貨條件
FOB, CIF
認證
EPA, CE, TÜV
其他資料
The truck-mounted concrete pump M36-4 reaches around 36 m, demonstrating enormous flexibility. Because the Z-folding makes it very adaptable, not least because of the optimal slip properties. Whether it is in the production hall, under bridges and underpasses or for the construction of multi-storey buildings, the M36-4 is very suitable for versatile work and with ease because we have further optimised the entire machine with respect to its weight. This allows more scope for loading accessories and operating materials, because the M36-4 offers high reserves with its surprisingly low weight in order to operate legally on all roads. You therefore easily reach the next place of use quickly, and economically. Key Features Smoother, more flexible 4-arm placing boom with Z fold system, lower unfolding height and optimum slip characteristics Versatile use on job sites, whether operating in low buildings, concreting ceilings, working on base plates, etc. Work efficiently thanks to logi顯示更多
