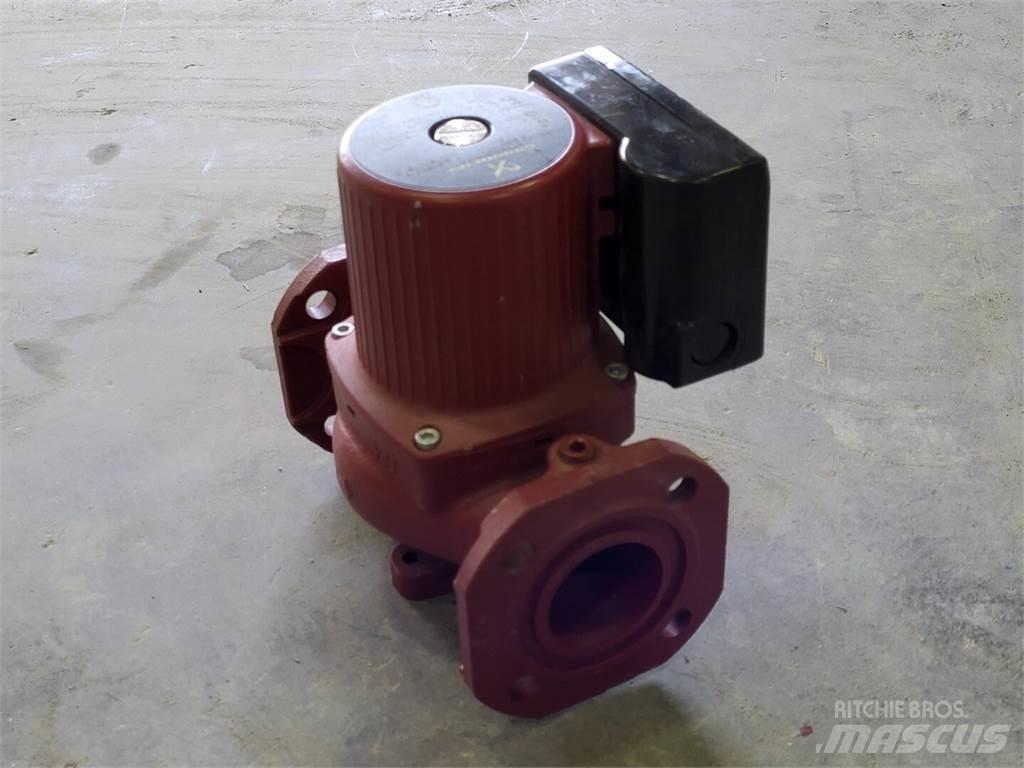

Grundfos UPS50-60F

3-Speed Circulator Pump UPS50-60F Title: 3-Speed Circulator Pump UPS50-60F SKU: 137487 Model: UPS50-60F Condition: Surplus New S/N: 97523134 GeneralHorsepower:1/2hp Pump Material:Cast Iron ElectricalVoltage:115volts Dimensions: 12.00 (H) x 12.00 (W) x 12.00 (L) inches Technical Speed Number: 3 Rated flow: 62 US gpm Max flow: 124 US gpm Rated head: 12.74 ft Maximum head: 21.33 ft Installation Maximum ambient temperature:104 °F Ambient max at 176°F liquid: 176 °F Maximum operating pressure: 145.04 psi Type of connection: 4-BOLT FLANGE Pipe connection: 4 - Bolt Flange Pressure rating for connection: PN 10 Port-to-port length: 8 9/16 in Electrical data Power input in speed 1: 0.3487 HP Power input in speed 2: 350 W Max. power input: 395 W Main frequency: 60 Hz Rated voltage: 1 x 115 V Current in speed 1: 2.7 A Current in speed 2: 3.4 A Current in speed 3: 3.6 A Capacitor size - run: 40 F/180 V Number of poles: 2 Insulation class (IEC 85): H Thermal protect: internal
