JLG 3248RS

不含增值稅價格

Compnay LOGO
Images7

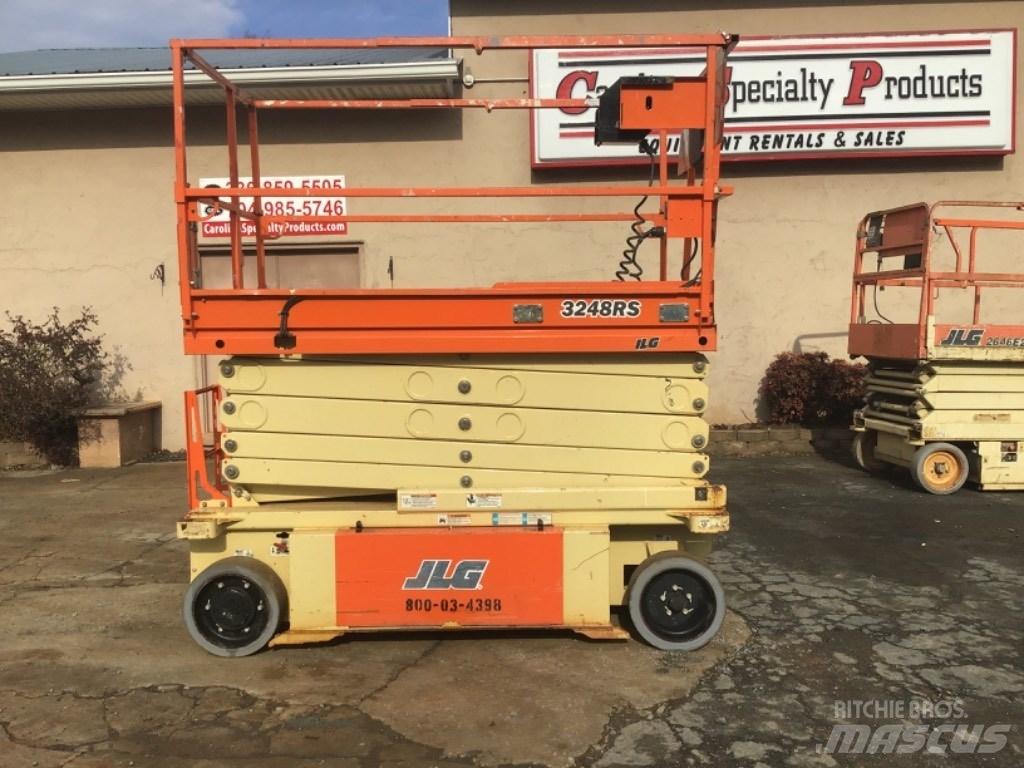

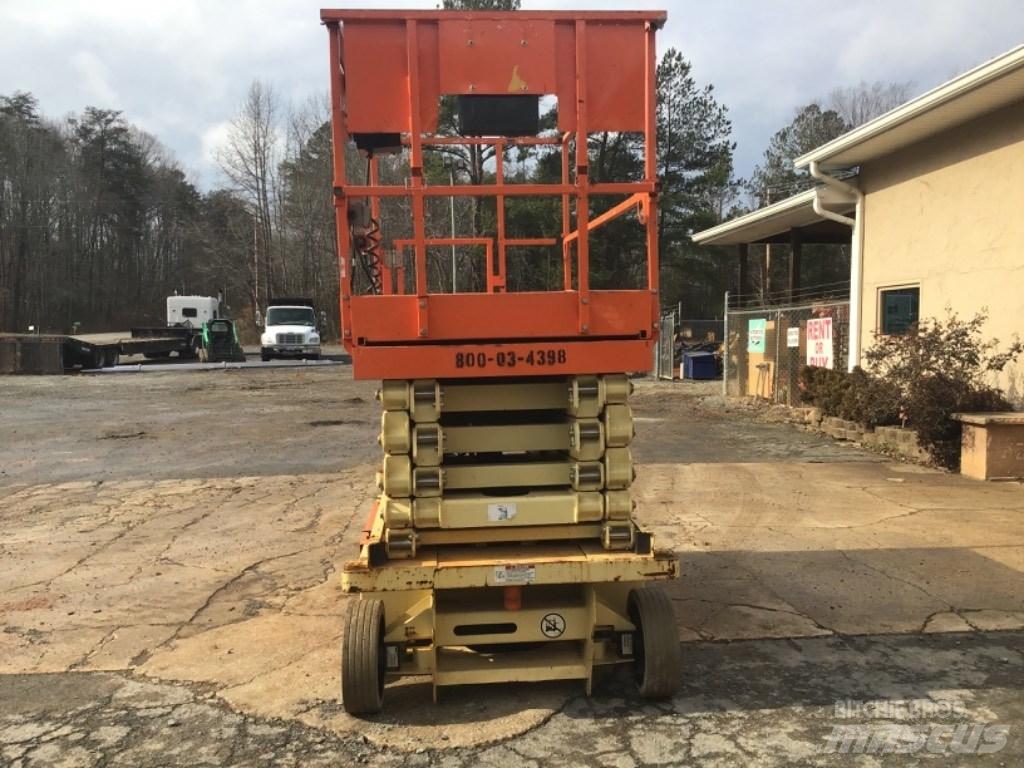

JLG 3248RS 剪式升降機
JLG 3248RS 剪式升降機
JLG 3248RS 剪式升降機
Favorite我的最愛
share分享
Save search儲存搜尋
列印

INFO

產品類別
剪式升降機
品牌/ 型號
JLG 3248RS
出廠年份
2014
使用時數
137 h
機械所在位置（請填城市名，例如台北..等）
DENTON
國家
美國
一般級別
1
2
3
4
5
Mascus產品ID碼
C90A548A

定價

幣別選擇

詳細資料

內部庫存號
12
出廠年份/序號
200235407
總重
2168 kg 公斤
最大舉升能力
454 kg 公斤
最大舉升高度
968 cm 公分
運輸尺寸（長x寬x高）
208.53 x 97.54 x 164.34 mm 公釐
狀況/保固
In great working condition
其他資料
Dimensions Overall Length 8.21in Wheelbase 6.86ft in Overall Width 3.84ft in Ground Clearance 5in Height W/O Rails 6.47ft in Turning Radius 7.91ft in Platform Dimension B 3.8ft in Platform Dimension A 8.31ft in Platform Max Platform Height 31.76ft in Deck Extension 35.44in Height Of Rails 3.61ft in Platform Capacity - Restricted 1000lb Platform Capacity - Unrestricted 700lb Max Platform Weight Capacity 1000.9lb Lower Time 50sec Platform Capacity - Extension 250lb Platform Inner Width 44.1in Platform Railing Height 31.76ft in Lift Time 50sec Platform Inner Length 98.43in Specifications Engine Maximum Ground Bearing Pressure 87psi System Voltage 24V Number Of Batteries 4 Battery Amp Hours 4 x 6V, 220 amp-hours Charger Amps 20amps Operational Operating Weight 4779.7lb Hydraulic System Fluid Capacity 1.7gal Max Speed 2.5mph Tire Size 16x5 in Tire Fill/Type Solid, Non-marking Hydraulic Pump Type Fixed Displacement Gear Performance Drive Speed - Platform Elevated 0.5mph Drive Speed - Platform Lowered 2.5mph Maximum Drive Height 31.8ft in Maximum Lift Height 31.8ft in Gradeability 25% Brakes Brakes Type Electric, Friction顯示更多

Carolina Specialty Products

1816 Badin Road 28001 Albenarle North Carolina 美國
