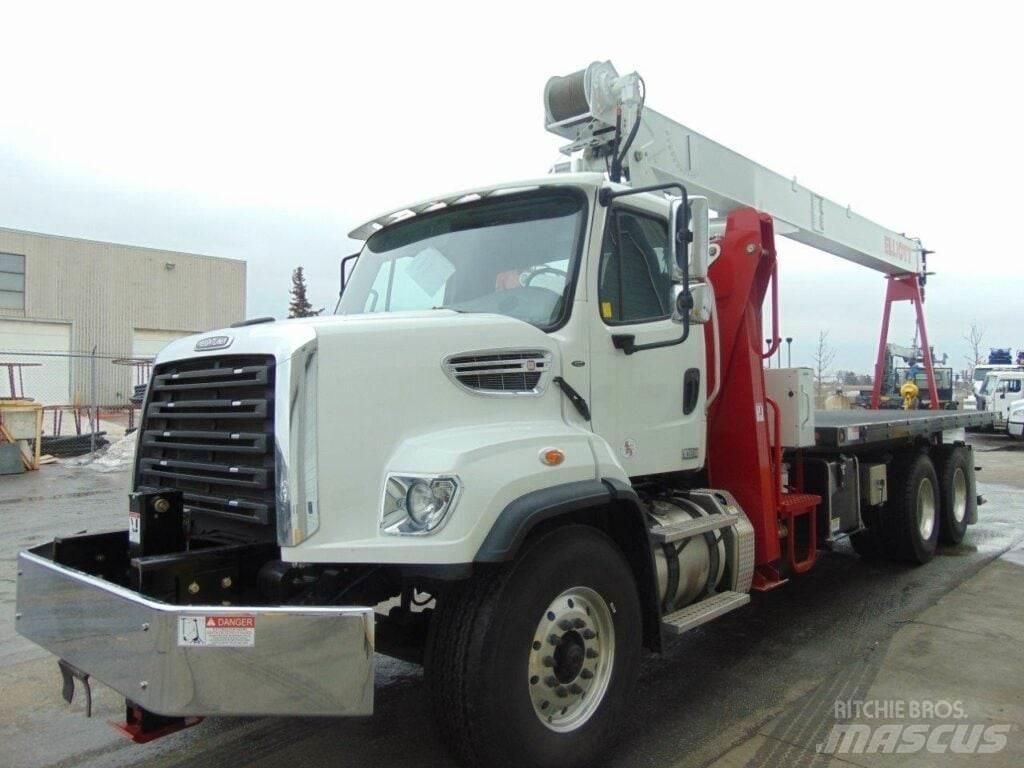

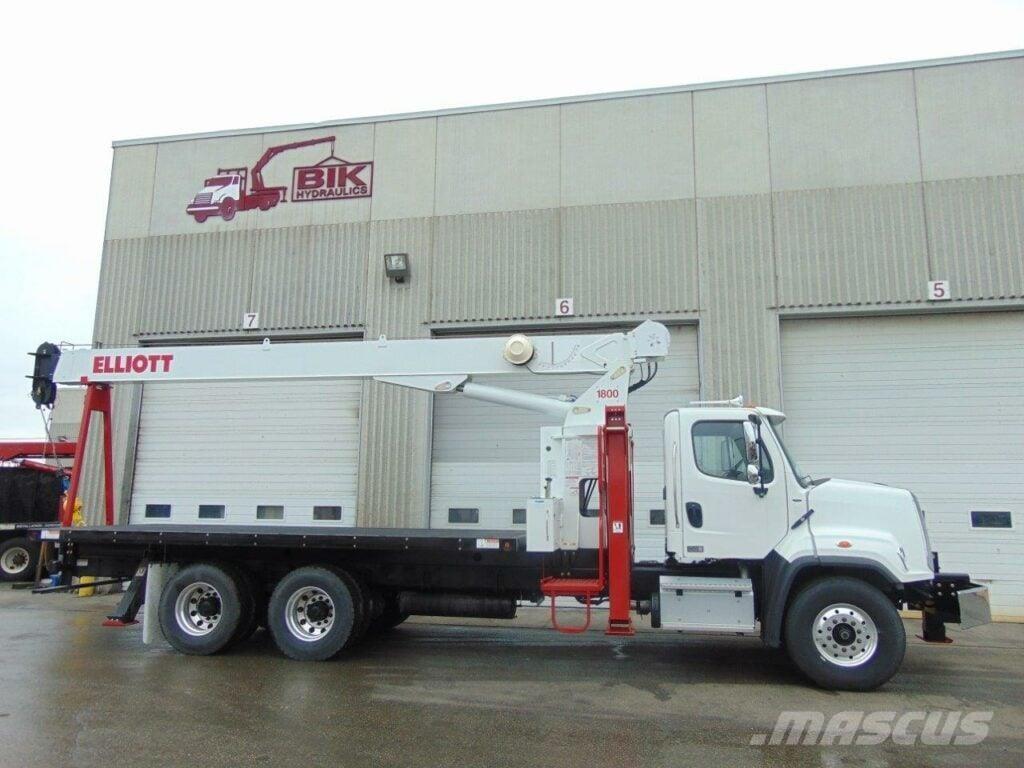

Elliott 1870F

https://freecranespecs.com/Elliott/1870F

BOOM DETAILS NEW – ELLIOTT MODEL 1870F : 18-Ton Front Mount Crane 27 – 70 Ft. 3-Section High Strength Proportional Boom PTO, Electronic Throttle Interface, 3-Section Gear Pump, 70-Gallon Hydraulic Fluid Reservoir 20’ 10” A-Frame Main Outriggers – 10’ 4” A-Frame Auxiliary Stabilizers Dual Operator Console Stations: w/ Engine Start/Stop, Load, Range, Electronic Foot Throttle 12,700 lb Bare Drum Pull Winch w/ 275’ 9/16” 6 X 37 IWRC EIPS Wire Rope – 9,600 lb Allowable Line Pull Rated 2-Sheave Boom Head, Std. Swivel Hook & Downhaul Ball Anti-Two Block, Load Moment Limiter w/Display and Hydraulic Function Lockout for Main Boom & Jib – Hard-Wired Internally 372 Degree Non-Continuous Rotation with Safety Stops, 180 Degree Area of Operation, Bubble Level Indicators, Boom Length and Angle Indicators 2-Speed Hoist, Outrigger and Stabilizer Audio Motion Alarm, Flared Outrigger and Stabilizer Pads, Audible Awareness Warning Horn, Sight Level and Temperature Gauge, Single Gate Valves on Suction DECK DETAILS NEW – 20′ FLAT DECK 20′ in Deck Length Hardwood Deck Surface (6) – Sliding Tie-Down Winch Straps Winch Bar & Holder DOT Stickers Side Reflector Lights Per CMVSS Standards (1) – 36″ Aluminum Storage Box Removable Front Headboard on Deck Rub Rails on Side of Deck TRUCK DETAILS NEW – FREIGHTLINER 108SD T/A TRUCK Cummins 380 HP Engine Allison Automatic Transmission 20,000 lbs Front Axle 40,000 lbs Rear Axle 60,000 lbs GVWR Steel White Rims (Front & Back) Tuftrac Suspension 250″ WB 60″ Spread at Tandems Included Truck Options: Power Windows & Locks,  AM/FM Stereo,  Black Bumper,  Black Front Grill,  2 Front Bumper Tow Hooks,  Block Heater,  Rear Differential Locks,  Single 80-Gallon Fuel Tank
