BIK TC-70
不含增值稅價格
請向賣家詢價
5
我的最愛
分享
儲存搜尋列印
INFO
產品類別
其他升降機械
品牌/ 型號
BIK TC-70
額外選項
全新/未使用過
機械所在位置（請填城市名，例如台北..等）
Milford, Massachusetts
國家
美國
一般級別
1
2
3
4
5
Mascus產品ID碼
9CBCC724
詳細資料
其他資料

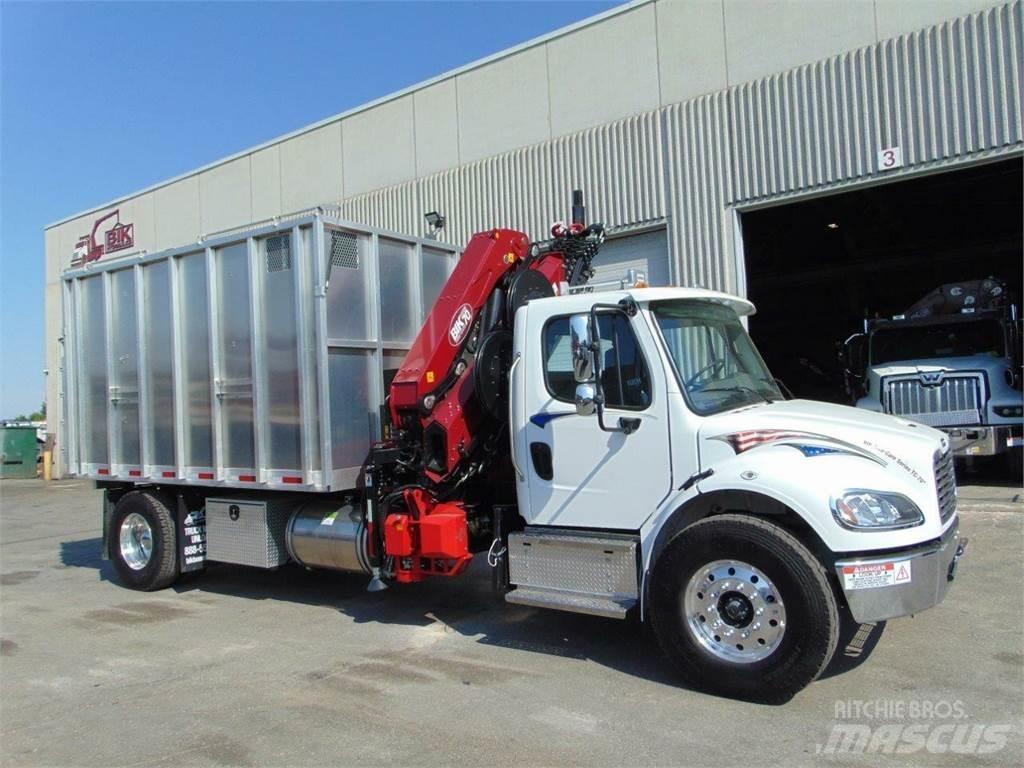

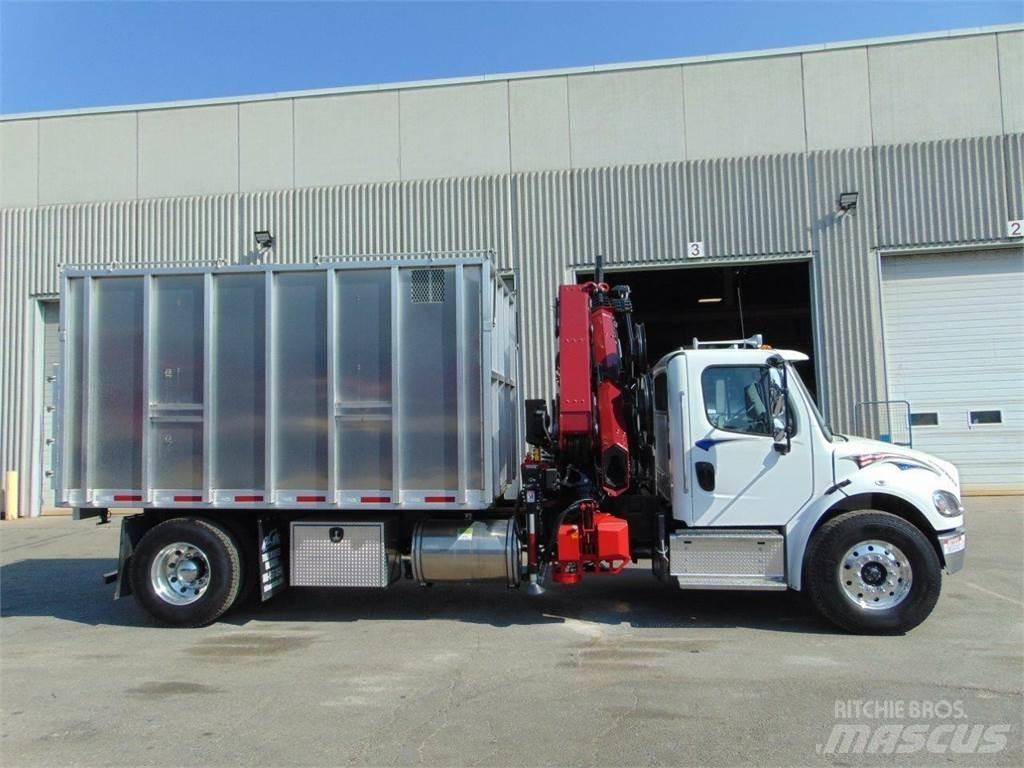

BOOM DETAILS
New
– BIK Tree-Care Series TC-70
(PM 23.5 ton/m)
6-hydraulic extensions & one manual grapple extn
Vertical Reach of 70’
Handles 3,800 lbs ... 70’ Vertical
HORIZONTAL Capacities
:
9,800 lb ... 14’
5,900 lb ... 20’
4,330 lb ... 26’
2,560 lb ... 40’
1,750 lb ... 55’
408 Degrees Rotation on Main Hydraulic Slewing
Double pilot operated on slewing and pilot operated check valves on all cylinders, Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
DANFOSS
Proportional Valve Controls
– single sided operator control station
Load Holding Valves
on all cylinders
PM Power
–Tronics
electronic monitoring & load control with Stabilizer deployments sensors & didgital read-out on the remote
SCANRECO
Radio Remote Control
Hydraulic
OUT and Hydraulic DOWN
Extra Wide
– 21’ 6” span
, 2-sided stabilizers w/ round foot pads welded to bottom of cylinder.
15 degree negative angle
on folding arm
–
Hydraulic Overload Protection
– simplified system that prevents boom from overload
Two functions plumbed
to end of 6th
extn,
– Heavy Duty Pedestal Turning Cylinders
for greater turning torque & reduced wear
Installed at rear on
integral sub base / torque box, Engineer certified stability inspection & certificate,
Warranty: 1-Yr. parts & labour on entire boom, 3-Yr. on Structural Components
DECK DETAILS
New
– 14’ long
Steel Flat Deck:
4’ head board
8’ wide usable deck + stake pockets with rub rail
Steel checker plate
Deck surface
5-sliding tie down winch straps on pass side
Dual access ladders at front& winch bar with holder
Integral sub-base / torque box To maximize torsion strength
DOT stickers and clearance lights as required.
TRUCK DETAILS
New – Freightliner M2-106
2- axle Truck – NON-CDL with 33,000 max GVWR
300 hp Cummins Diesel
Allison Auto Trans
12,000 lb fronts w/315 type 22.5 tires
21,000 lb rears, polished aluminum rims
Air Cond, 2-man pass seat, cruise, power windows/locks,
tilt/tele steering,
stereo, chrome bumper/grille, white color cab, etc…
Also Included:
(2) pcs – 2” PVC stabilizer pads – with holders
36” Alum storage boxes installed
Mecanil SG-220 Grapple saw with spare parts kit
Grapple saw holder/stowe bracket on side of frame near boom
BIK tech to familiarize boom operation at your facility for 2-3 days
Other Options at Extra Cost:
(1) Aluminum self evelling man basket
Drawplate
with reese type pintle hook receiver with electric trailer brake actuator installed
(6) pcs removable log bunks to fit deck pockets
TC-78 version
– with 8’ extra reach and comes with SG-160 Grapple saw, Handling 2,800 lbs ... 78’ Vertical Reach
