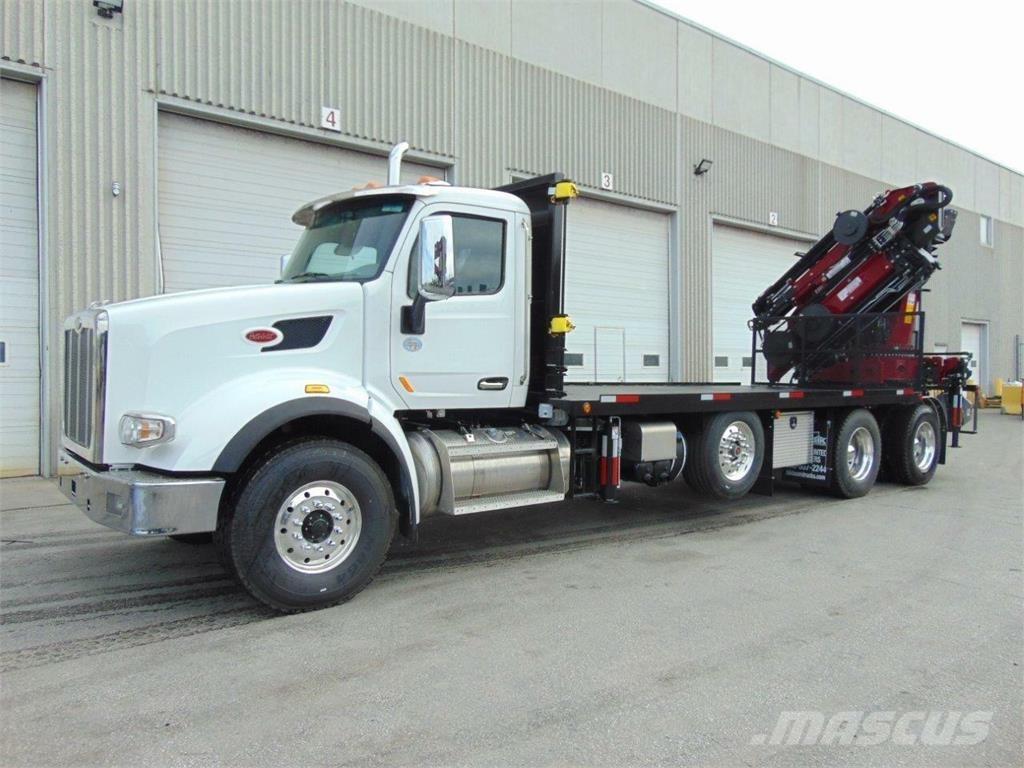

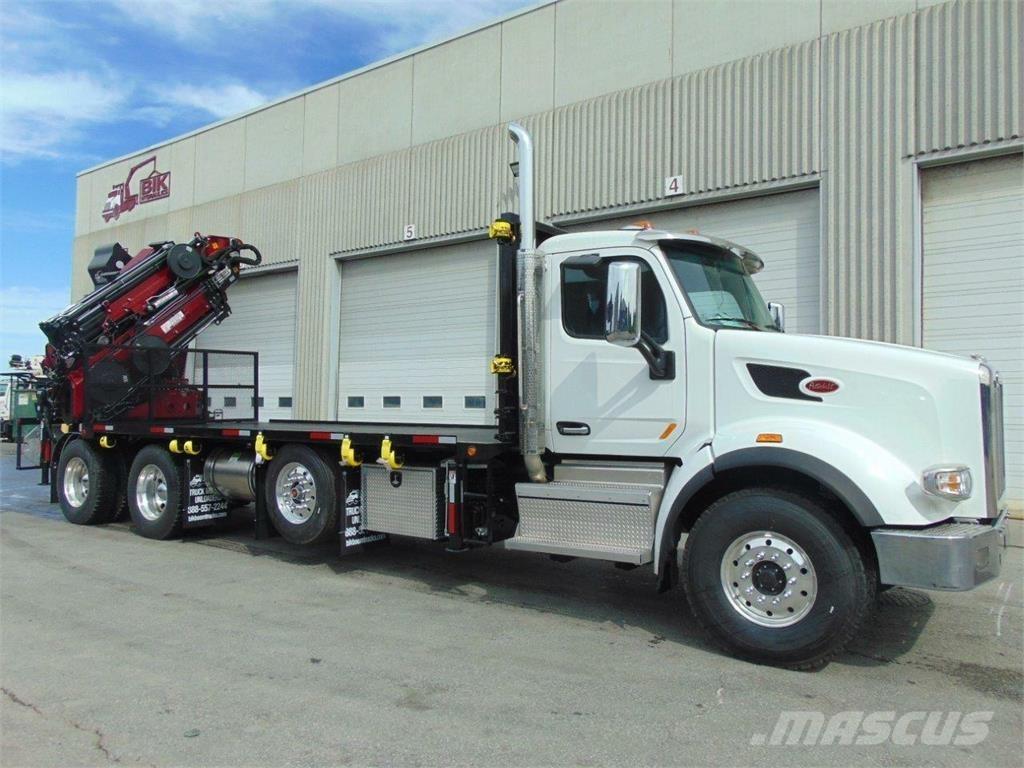

BIK FC-81

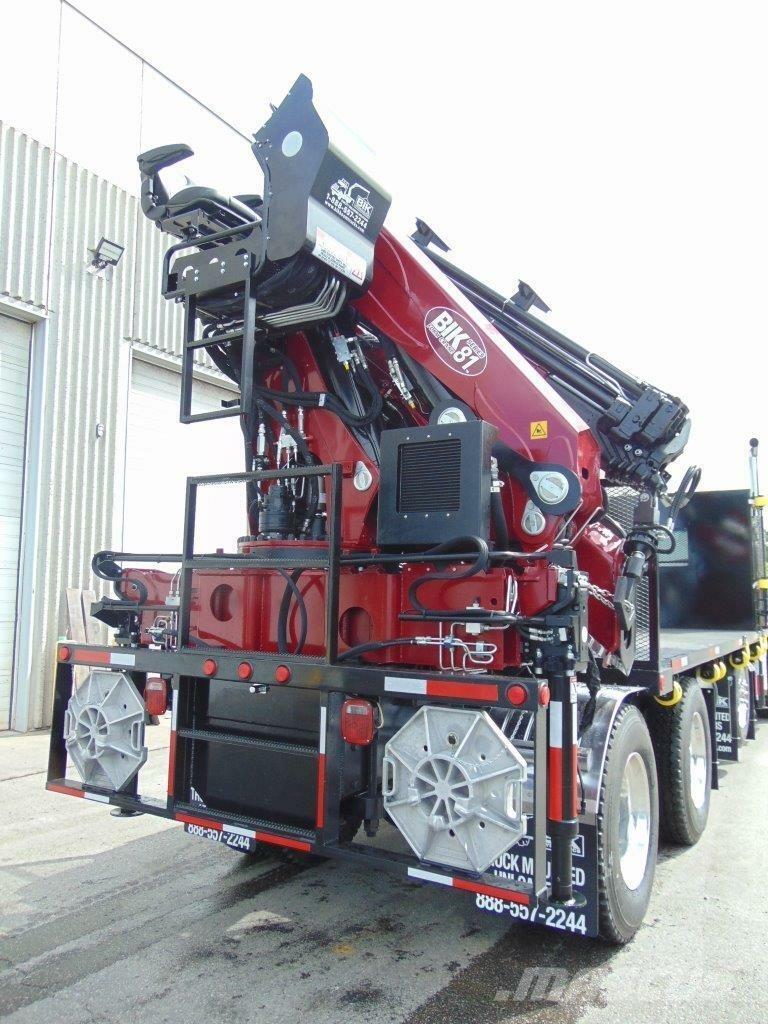

BOOM DETAILS New – BIK “Form-Crane” Series FC-81 51.5 ton/m Folding Hyd 4 ext Knuckle Boom with Detachable 6 ext jib – 81’ Horizontal Reach  Main Boom Horizontal Capacity:  22,600 lb ... 14’, 18,880 lb ... 19’ 6”, 11,970 lb ... 25’ , 9,500 lb ... 30’, 7,810 lb ... 38’ 5” Jib Horizontal Capacity: 3,850 lb ... 48’, 3,310 lb ...  52’,        3,030 lb ...  59’, 2,540 lb ... 64’, 2,000 lb ... 76’,  1,800 lb ... 81’ PM Power-Link connections  at Main, Knuckle & Jib Cylinders, Powerful Planetary Gear Drive – Continuous Boom Rotation  that can operate at severe angles without any electronic limitation Double pilot operated on slewing and pilot operated check valves on all cylinders Extra Wide Main outriggers  at pedestal, double beam – hyd out & down  26’  3” span,   – Front Xtra Wide 21’ Span Aux Stabilizers Hydraulic Oil Cooler, high pressure return filter and min. 100 –gallon  hyd aluminum oil tank with gate valves mounted at front under deck Simplified Hydraulics – Hydraulic overload LLD protection and load holding valve – Offers Simplicity, Reliability Top Seat Controls  – with access ladder to seat, manual levers – SCANRECO Radio remote  with back up corded remote Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components  by PM  –  24/7 Crane-Tech Support by BIK Installed at rear, with integral sub-frame, 3/8” front and center, sheer plating mount of sub base for maximized torsion strength DECK DETAILS New –  24’ x 102” Steel Checker plate   – LOW PROFILE: to accommodate up to 9’2” tall Form Cages Installed on pre-engineered 6” main sill sub frame & extension with X-braces for Tortional support tied to truck frame by sheer plating at front, center and rear Aluminum deck surface, 60” + headboard, Center Divider 4-vertical mounted winch straps mounted ahead of headboard to wrap around cages  for transport 6 – under deck sliding tie-down winch straps on passenger side Winch bar holder and winch bar, dual ladder access, reflectors and side lights  as required by DOT standards. TRUCK DETAILS New  – Peterbilt 567  4-Axle  Diesel  Truck:     86,000 lb GVWR 15L Cummins Diesel, 565 hp Eaton Ultrashift-Plus Automated 18spd trans. 20,000 lb fronts with 425/65R22.5 Front Floatation tires on Alum rims 20,000 lb self steer lift axle ahead of t/a, 46,000 LB Rears on Tuftrac Suspension with  11R22.5 tires on Aluminum rims Double frame chassis Truck  Features Include : Two Stage Engine Brake,  Air Cond., AM/FM  stereo, cruise, tilt/tele steer column, power windows/locks, chrome bumper and grill,  power and heated mirrors, eng block heater, painted ext visor,  trailer air tow package, rear wheel lock ups, 80 gal alum fuel tank, trailer air tow package, etc…
