撞鎚 5011 A

不含增值稅價格

請向賣家詢價

Compnay LOGO
Images2Videos1

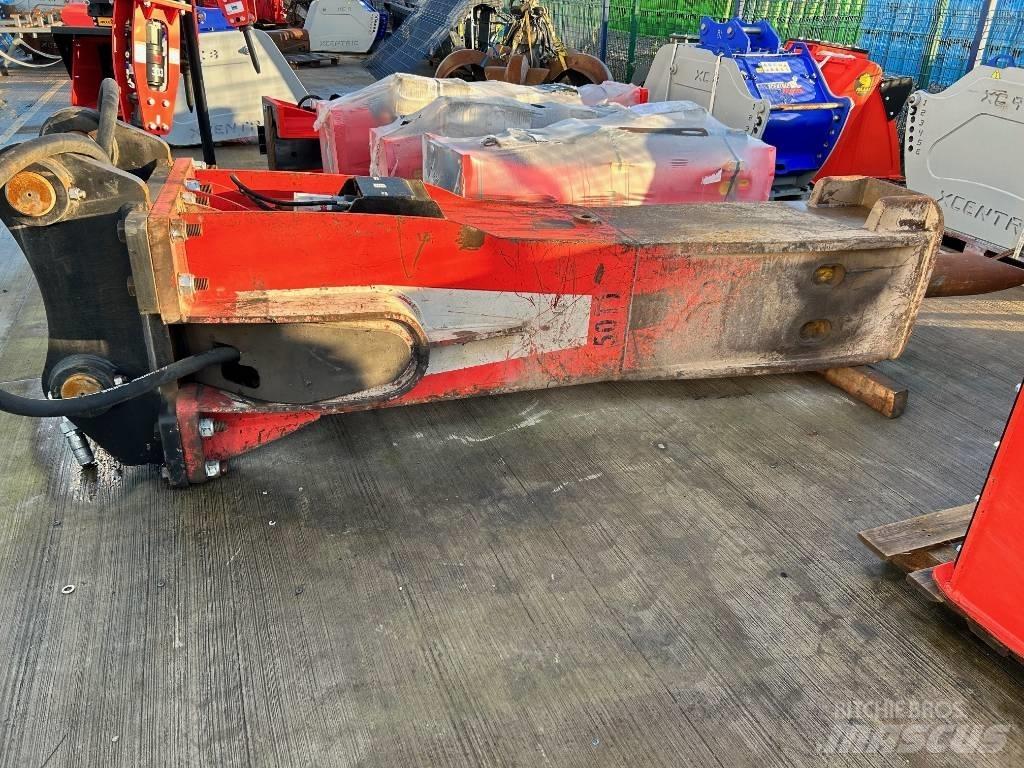

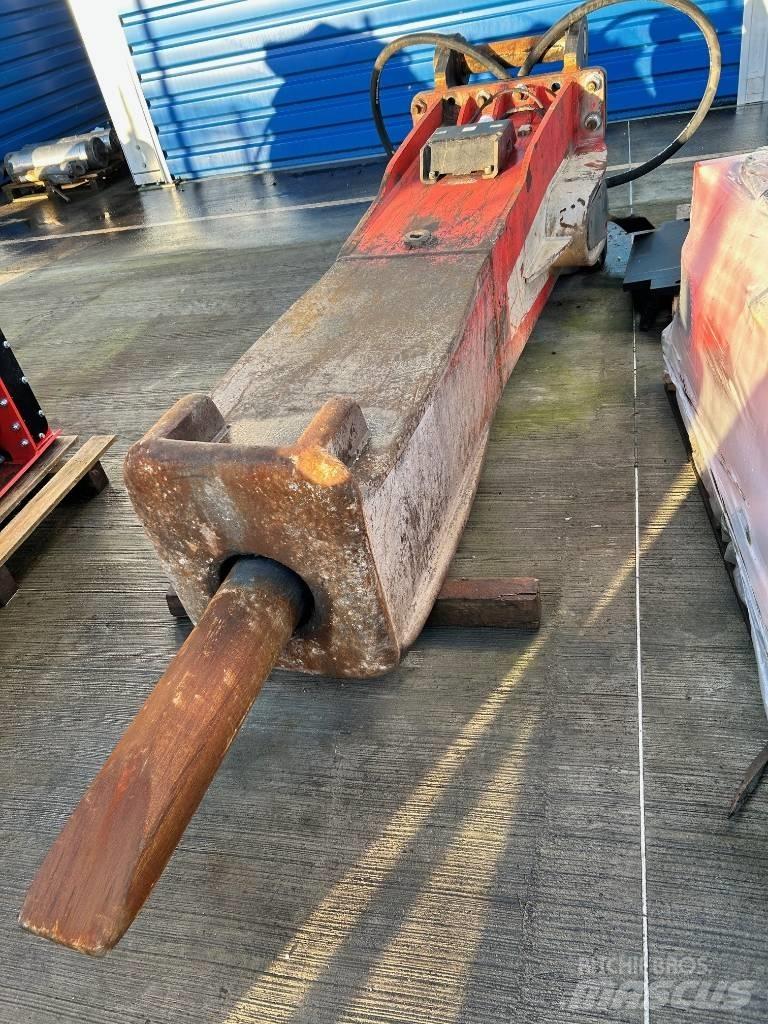

Rammer 5011 A 鐵鎚/碎石機
Rammer 5011 A 鐵鎚/碎石機
Favorite我的最愛
share分享
Save search儲存搜尋
列印

INFO

產品類別
鐵鎚/碎石機
品牌/ 型號
撞鎚 5011 A
出廠年份
2017
額外選項
可租用,整機品
機械所在位置（請填城市名，例如台北..等）
Cheshire
國家
英國
一般級別
1
2
3
4
5
Mascus產品ID碼
B62D76D8

詳細資料

最新檢驗紀錄
2023-11-29
運輸重量
3900 kg 公斤
其他資料
Comes with Head Bracket and Hoses Recent Refurbishment SPECIFICATION Minimum working weight, flange mounted *1 4750 kg 10470 lb Weight 3900 kg 8600 lb Working length 3329 mm 131.1 in Impact rate, Long stroke 370 - 530 bpm Impact rate, Short stroke 450 - 620 bpm Operating pressure 160 - 170 bar 2320 - 2465 psi Oil flow range 280 - 380 l/min 74.0 - 100.4 gal/min Pressure relief setting *2 220 bar 3190 psi Pressure relief max 230 bar 3335 psi Back pressure max 10 bar 145 psi Input power 108 kW 145 hp Tool diameter 190 mm 7.48 in Pressure line connection (IN) SAE 6000 psi 1 1/2" Return line connection (OUT) SAE 6000 psi 1 1/2" Pressure line size, min. inner diameter 32 mm 1.26 in Return line size, min. inner diameter 32 mm 1.26 in Grease connection BSPP-internal 3/8" Air connection (A) BSPP-internal 3/8" Optimum oil temperature 40 - 60 °C 104 - 140 °F Allowed oil temperature range -20 - 80 °C -4 - 176 °F Optimum oil viscosity at operating temperature 30 - 60 cSt Allowed viscosity range 20 - 1000 cSt Carrier weight, optimum 45 - 69 t 99200 - 152100 lb Carrier weight, range *3 43 - 80 t 94800 - 176400 lb Noise level, measured (2000/14/EC) 122 dB(A) Noise level, guaranteed (2000/14/EC) 126 dB(A)顯示更多

Blue Machinery ( Central )

New Cheshire Business Park, CW9 6GG Northwich Cheshire 英國
