Screenpod ST620

不含增值稅價格

請向賣家詢價

Compnay LOGO
Images7
Screenpod ST620 礦石篩
Screenpod ST620 礦石篩
Screenpod ST620 礦石篩
Favorite我的最愛
share分享
Save search儲存搜尋
列印

INFO

產品類別
礦石篩
品牌/ 型號
Screenpod ST620
出廠年份
2024
機械所在位置（請填城市名，例如台北..等）
Dungannon, Tyrone
國家
英國
Mascus產品ID碼
B691526E

詳細資料

總重
7500 kg 公斤
其他資料

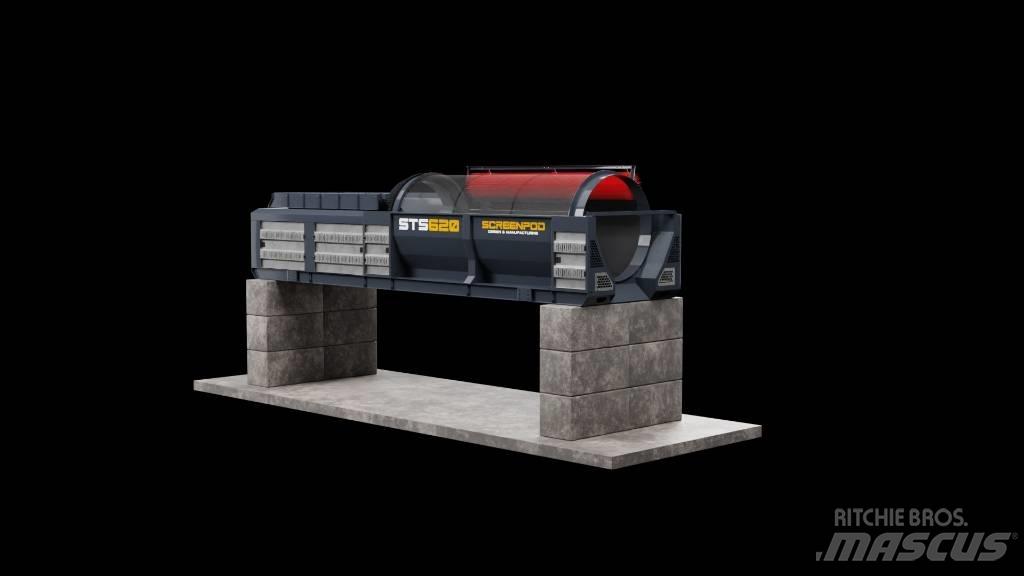

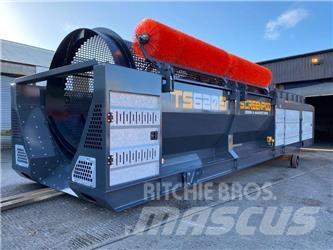

TS620S STATIC TROMMEL SCREEN WITH FEEDER MACHINE TOTAL LENGTH 9666mm MACHINE TOTAL WIDTH 2600mm BARREL TOTAL LENGTH: 4700mm BARREL DIAMETER: 1800mm SCREEN LENGTH : 3850mm 40MM SQUARE APERTURE BARREL WORM-SCREW 4no DRIVE WHEELS 4no 7.5kw GEAR BOXES 2no RETAINING WHEELS 60MM PILLOW BLOCK BEARINGS (TROMMEL DRIVE WHEELS) 50MM PILLOW BLOCK BEARINGS (RETAINING WHEELS) INLET CHUTE TO MINIMIZE SPILLAGE GREASE MAX SELF GREASING POTS ON ALL BEARINGS FEED HOPPER CONVEYOR DRUM CENTER LENGTH 3500mm BELT WIDTH: 1000mm Ep500/3ply 5 + 1.5mm endless 1no 3kw GEARBOX IMPACT BED 3no TOP ROLLERS 1no FLAT RETURN ROLLER 4no 50mm PILLOW BLOCK BEARINGS GREASE MAX SELF GREASING POTS ON ALL BEARINGS MANUAL HYDRAULIC HAND PUMP FOR MOVING CONVEYOR OUT OF BARREL FOR CHANGING DRUM BARREL CAN BE REPLACED WITH DOOPSTADT, PRONAR, TEREX 620顯示更多

Screenpod Design and Mnftr Ltd

30 Tullyodonnell Road BT703JE Dungannon Tyrone 英國
