BSP HH6 LD

不含增值稅價格

Compnay LOGO
Images5

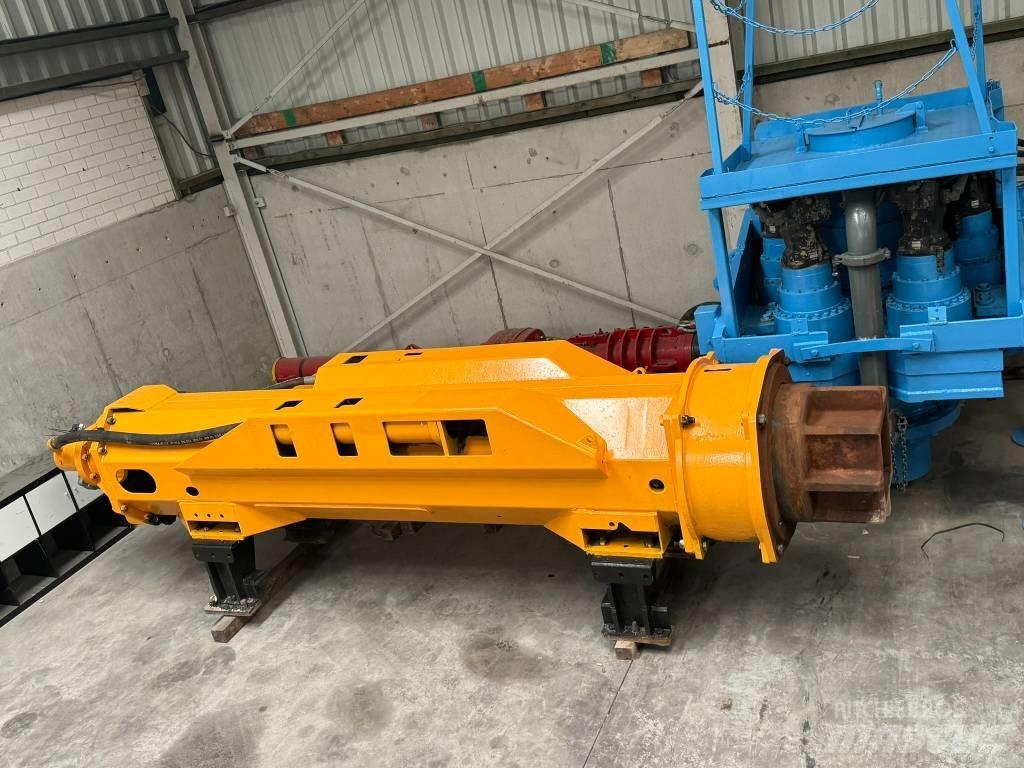

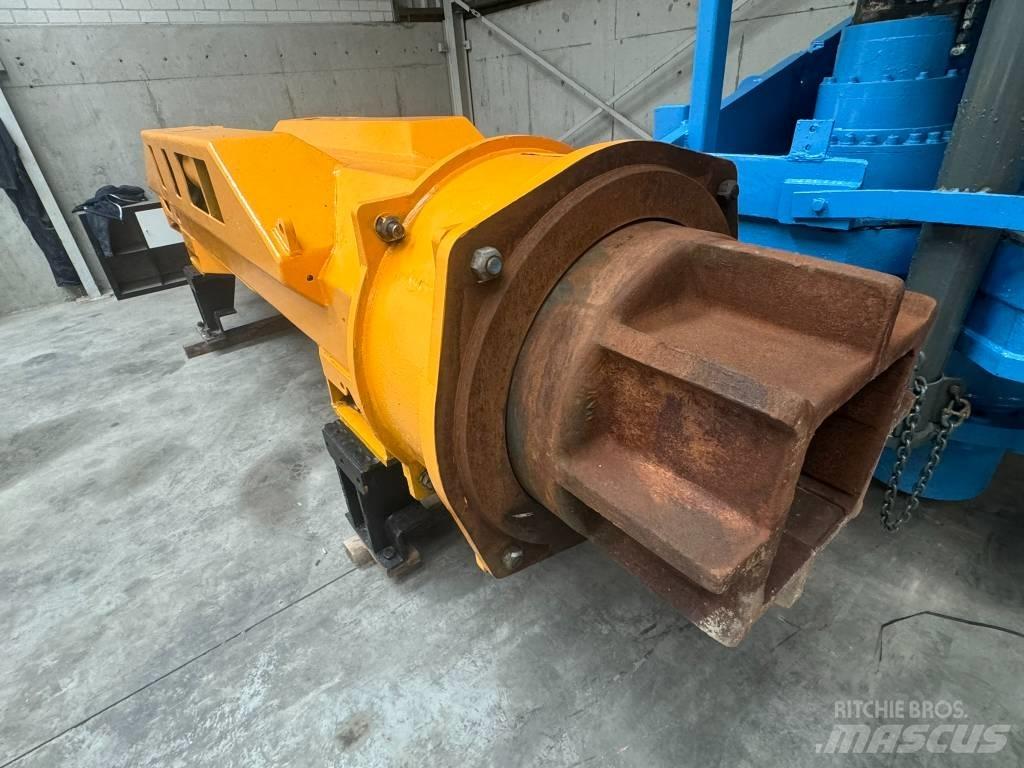

BSP HH6 LD 液壓打樁錘
BSP HH6 LD 液壓打樁錘
BSP HH6 LD 液壓打樁錘
Favorite我的最愛
share分享
Save search儲存搜尋
列印

INFO

產品類別
液壓打樁錘
品牌/ 型號
BSP HH6 LD
出廠年份
1998
機械所在位置（請填城市名，例如台北..等）
Etten Leur, Noord-Brabant
國家
荷蘭
一般級別
1
2
3
4
5
Mascus產品ID碼
3E85A9F3

定價

幣別選擇

詳細資料

最新檢驗紀錄
2024-10-14
前擁有者數量
1
運輸重量
8500 kg 公斤
運輸尺寸（長x寬x高）
5500 x 740 x 1110 mm 公釐
狀況/保固
warranty expired
生產國
英國
交貨條件
EXW
附屬裝置
Leader guides for 720mm wide leader mast Hydraulic hose bundle Hoisting device for lifting the hammer Electronic cable Control box Drive cap for 30x30cm precast pile No manifold included
文件
BSP-HH5-6LD-brochure.pdf
其他資料

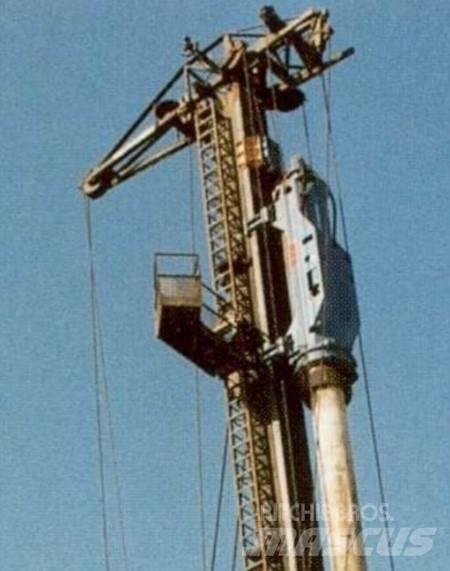

The BSP HH 6LH is a hydraulic impact hammer which was especially designed for leader guided pile driving. The hammer has a very smart design which makes it short and therefor makes it suitable to drive longer piles than with most other hammers. This hammer is suitable to be used with the drive cap system of van Hattem. It can be used to drive steel tubes but the hammer is also suitable for driving precast concrete piles. Specifications: Max. energy 71 kNm Max. stroke 1200 mm Length is 5500 mm Max. blow rate at 1.200mm stroke is 40 blows/min. Max. oil flow 180 ltr/min Max. pressure: 250 bar Operational weight 8500 kg顯示更多
