Dawson EMV 300
不含增值稅價格
請向賣家詢價
7
我的最愛
分享
儲存搜尋列印
INFO
產品類別
振動打樁機
品牌/ 型號
Dawson EMV 300
出廠年份
2016
額外選項
整機品
機械所在位置（請填城市名，例如台北..等）
Etten Leur, Noord-Brabant
國家
荷蘭
一般級別
1
2
3
4
5
Mascus產品ID碼
85326125
詳細資料
內部庫存號
455XX
最新檢驗紀錄
2024-12-12
前擁有者數量
2
適合下列機械
12-35t excavators with a minimal oilflow of 130 ltr/min. at 250 bar.
出廠年份/序號
455XX
運輸重量
965 kg 公斤
發動機制造商
Parker hydraulics
運輸尺寸（長x寬x高）
1011 x 615 x 1200 mm 公釐
輪胎品牌
not applicable
狀況/保固
warranty expired
前輪胎剩餘量
not applicable
後輪胎剩餘量
not applicable
生產國
英國
交貨條件
EXW
認證
CE
附屬裝置
2m hose bundle and transport frame are included
chain to lift sheet pile is included
Fork and pin or quick hitch connection optionally available
Please note we have multiple units available and pictures might show options which are not included. Call or email us for your specific offer.
其他資料
The Dawson vibratory hammers are extremely reliable and are easy to install and operate. These high frequency vibratory hammers have a great balance beween weight and performance. The EMV 300 can be used on most excavators in the
class of 12-35t.

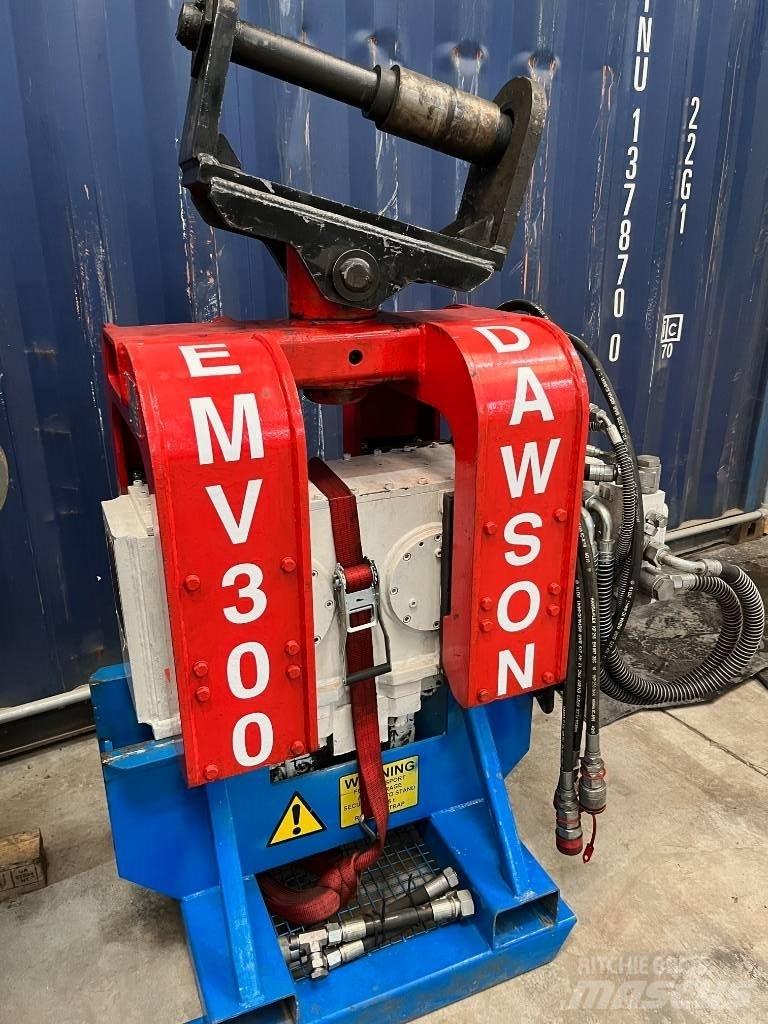

1 piece used unit Dawson EMV 300 excavator mounted vibratory hammer
Year of manufacture 2016
Static moment 4.6 kgm
Frequency 2400 rpm
Centrifugal force 300 kN
Amplitude 14.7 mm
Min. Hydraulic flow rate 130 L/min
Min. Hydraulic flow rate 250 L/min
Max. Hydraulic power 350 bar
Min. Hydraulic power 60 kW
Dynamic mass 925 kg
Total mass 965 kg
Max. pile mass 800 kg +-
Max. pull/push force 15000 kg
Clamp Force 36 ton
Excavator weight class 12-35 ton
