I will sell a WPS-80 auger drilling rig with a hydraulic unit and additional equipment.
Picking:
1. WPS-80 drilling rig
2. AH-120 hydraulic unit
3. Additional frame 1 m, 2 pcs, allows drilling with pipe modules L = 1 m, 2 m, 3 m
4. Hydraulic supply hoses, 1 set.
Remote:
5. Pilot drilling poles, 50 m
6. Pilot head, 1 pc
7. Optical navigation (theodolite with adjustable base, camera, monitor + LED target)
8. Scrubber pump
Tools:
9. Auger (DN200) 230mm x 1m, 50m
10, Widia head for 273mm pipe, 1 pc
11. Auger (DN250) 280mm x 1m, 43m
12. Widia head for 355mm pipe, 1 pc
13. Auger (DN300) 360mm x 1m, 55m
14. Widia head for 406mm pipe, 1 pc
other small elements such as push rings. The set does not include directional steel pipes. They are sold separately upon request.

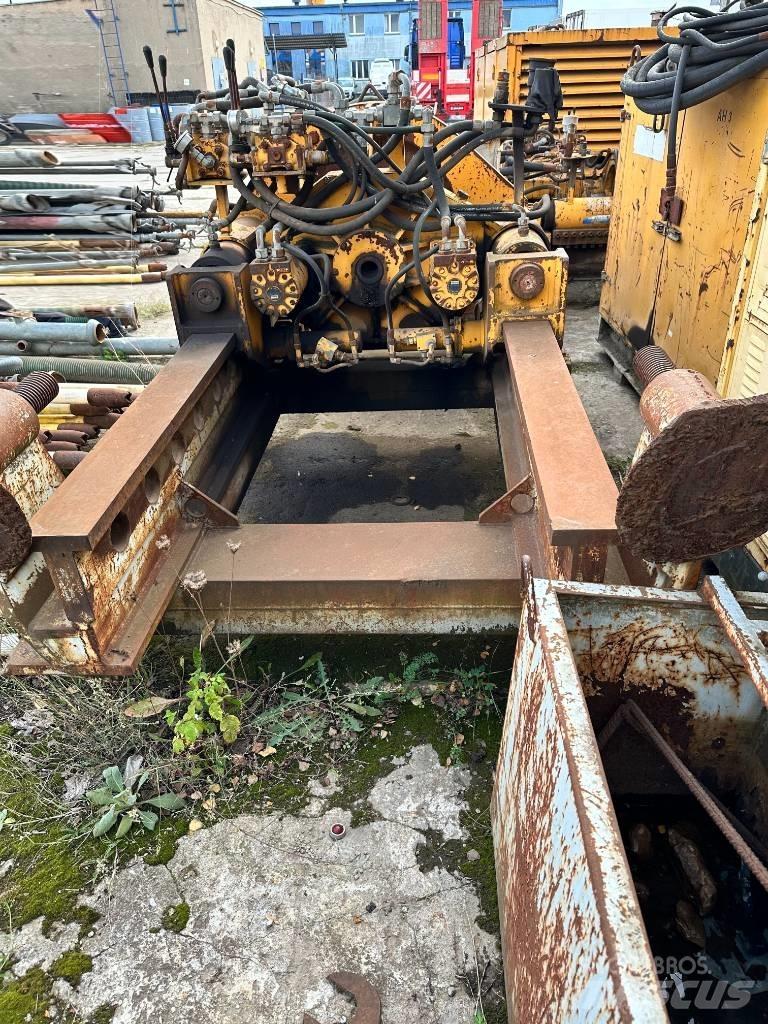

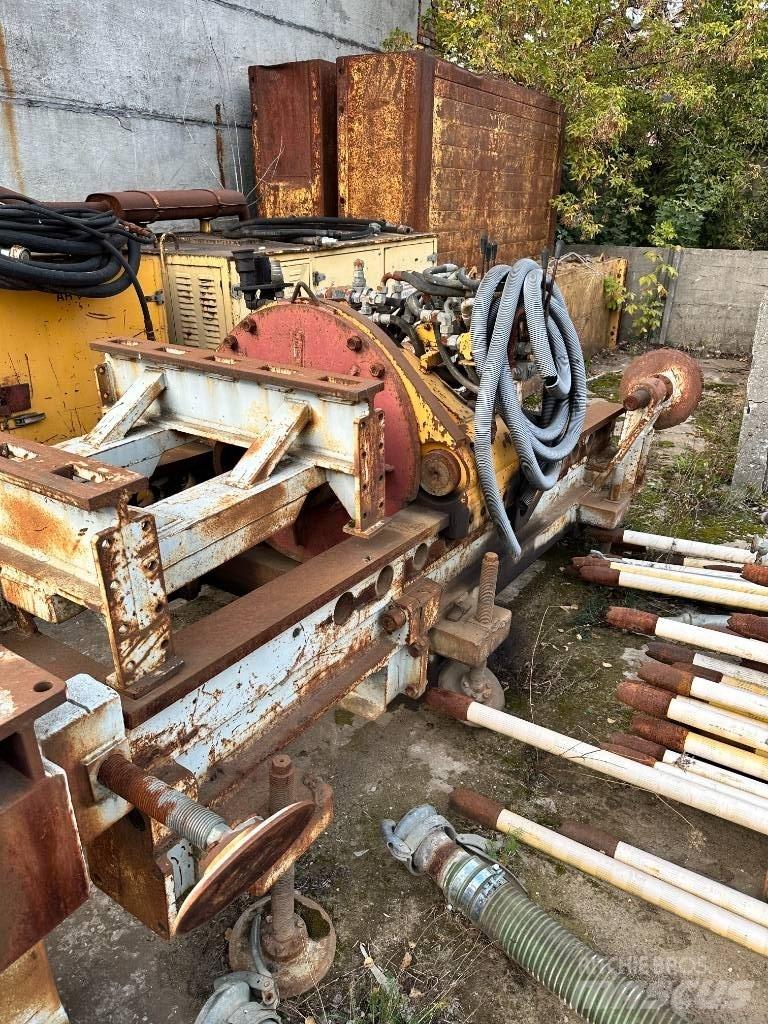

Drilling rig WPS-80 (Version with hydraulic locks)
• Torque 1600daNm/20MPa
• Two geared rotation motors -Parker
• Pushing force 1200kN/28MPa
• Stroke of main cylinders ~350mm
• Weight: 2500kg on the basic track
• Length: 2650mm
• Width: ~1600mm
90kW hydraulic unit AH-120
• Two independent high pressure pumps
• Hydraulic oil cooler.
• Engine SW400/Andoria/Leyland, 6 cyl.
Additional equipment
• • Power cords 12m 1 set.
• • 114 spindle-rod adapter
• • Spindle-bore connector S65,
• • Push rings
Additional track 1m 2pcs (enables work with 1m, 2m, 3m modules)
• pipe support included
The drilling rig was used occasionally. She's functional. In good condition.
Equipment available for viewing in Zabrze 41-807
Contact: WhatsApp, e-mail...顯示更多
