XCMG QY130K

不含增值稅價格

Images20Videos2

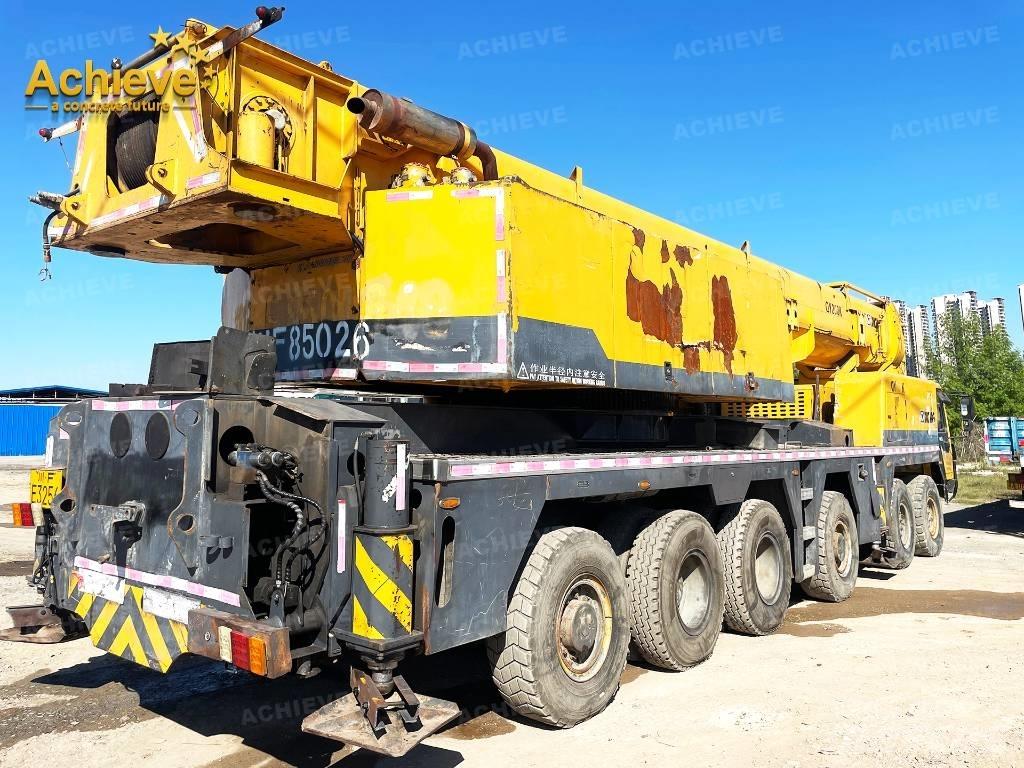

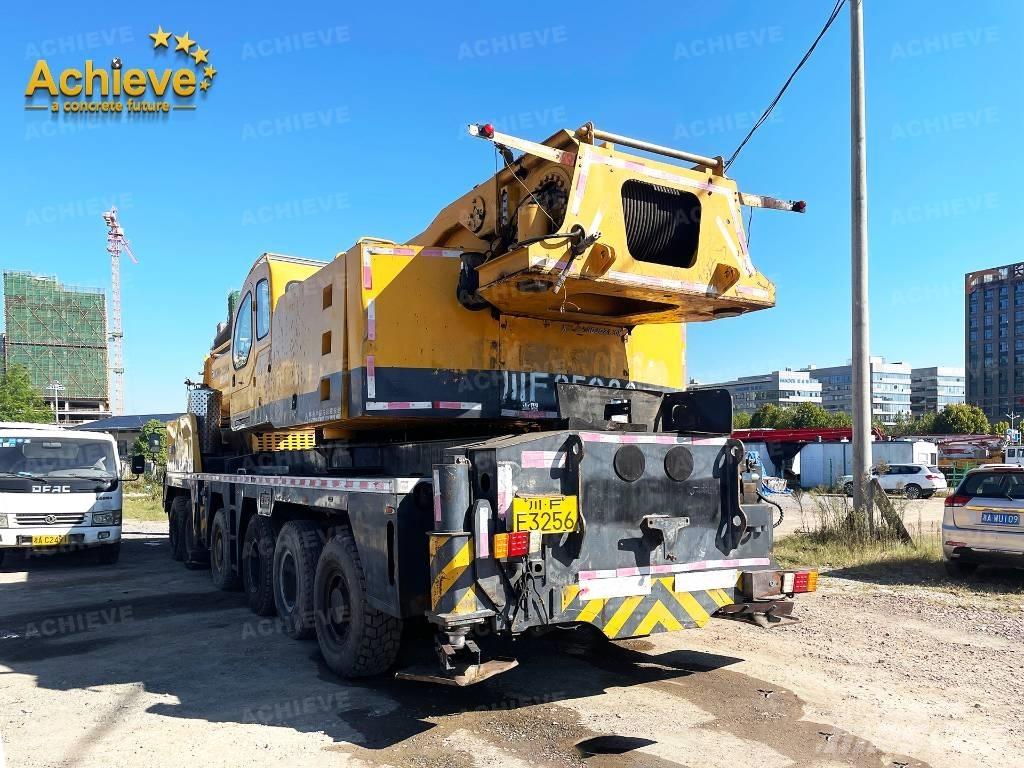

XCMG QY130K 全路面起重機/吊車
XCMG QY130K 全路面起重機/吊車
Favorite我的最愛
share分享
Save search儲存搜尋
列印

INFO

產品類別
全路面起重機/吊車
品牌/ 型號
XCMG QY130K
出廠年份
2013
使用時數
2159 h
額外選項
整機品,展示機
國家
中國
一般級別
1
2
3
4
5
Mascus產品ID碼
564D3984

定價

幣別選擇

詳細資料

總重
54900 kg 公斤
最大舉升能力
100000 kg 公斤
吊臂末端最大揚程能力
100000 kg 公斤
排放級數
Stage IIIA
最大舉升高度
2660 cm 公分
升引擎/發動機
26.6M
起重機類型
液壓臂
出廠顏色
yellow
載重引擎/發動機
54900
發動機制造商
Get on TAD720VE TAD750VE Get off WP12.460N
運輸尺寸（長x寬x高）
1560030003.85 m 公尺
載架類型
輪式
生產國
中國
交貨條件
FOB, CIF
認證
EPA, CE, TÜV
其他資料
The eight-section "U-shaped" 82-meter main arm has a maximum lifting capacity of 100 tons; the lateral span of the H-shaped outriggers is 8.1 meters, and the full rectangular frame structure has a stronger load-bearing capacity and higher stability; the five-axle high-load truck crane chassis, three-axle drive, and three-axle steering, has strong power and flexible maneuverability. * Engine rated power (kw/(r/min)) 316/1900 * Maximum driving speed (km/h) 80 * Maximum climbing grade (%) 45 project unit parameter Parameters QY100K-I (Weichai) Size parameters Machine length mm 15600 Full width mm 3000 Overall height mm 3850 Wheelbase mm 1420+2420+1800+1420+1505 Wheelbase mm 2610/2610/2610/2315/2315/2610 Weight parameters Total mass in driving state kg 54900 Axle load kg 1 axis 8000/2 axis 8000/3 axis 7900/4 axis 12000/5 axis 12000/6 axis 7000 Power parameters Engine Model Get on TAD720VE TAD750VE Get off WP12.460N Engine rated power kw/(r/min) Boarding 174/2300 181/2300 Alighting 338/1900 Rated engine torque Nm/(r/min) Boarding 854/1400 1050/1500 Alighting 2110/1000-1400 Driving parameters Driving Maximum driving speed km/h 80 Minimum stable driving speed km/h 0.5 Turning Minimum turning diameter m twenty four Minimum turning diameter of arm head m 26.6 Maximum climbing grade % 40 Minimum ground clearance mm 300 Approach Angle ° 20 Departure angle ° 14 Braking distance m ≤10 Fuel consumption per 100 km L 70 Main performance parameters Maximum rated total lifting weight t 100 Minimum rated amplitude m 3 Maximum lifting moment of basic arm kN·m 3450 Turntable tail turning radius mm Balance weight 4200 Secondary roll 4590 Outriggers Vertical m 7.56 Horizontal m 7.6 Maximum lifting height Basic arm m 13.5 Longest main boom m 50.9 Longest main boom + jib m 70.4 Boom length Basic arm m 13.5 Longest main boom m - Longest main boom + jib m - Longest main boom + jib + extension section m 51+18.1+4 Working speed Maximum rotation speed r/min 2 Lifting speed Main lifting mechanism 105 Auxiliary lifting mechanism 104 Boom extension time Full extension s 160 Full Zoom 160 Amplitude change time Full arm lift s 75 Full arm drop s - Outrigger retraction level At the same time s 25 At the same time s 15 vertical At the same time s - At the same time s -顯示更多

Achieve Innovations

5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 中國
