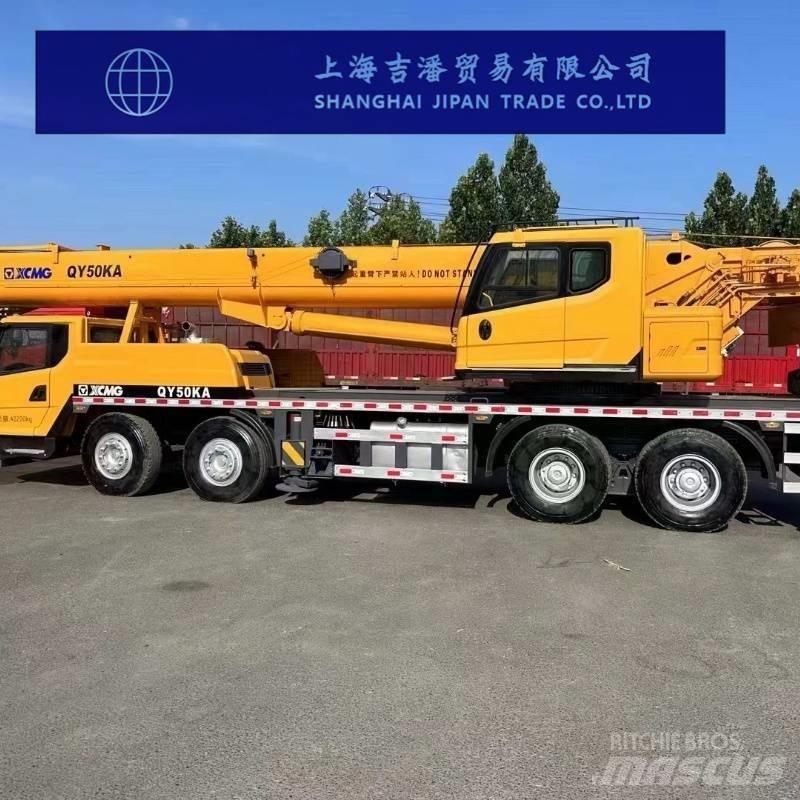

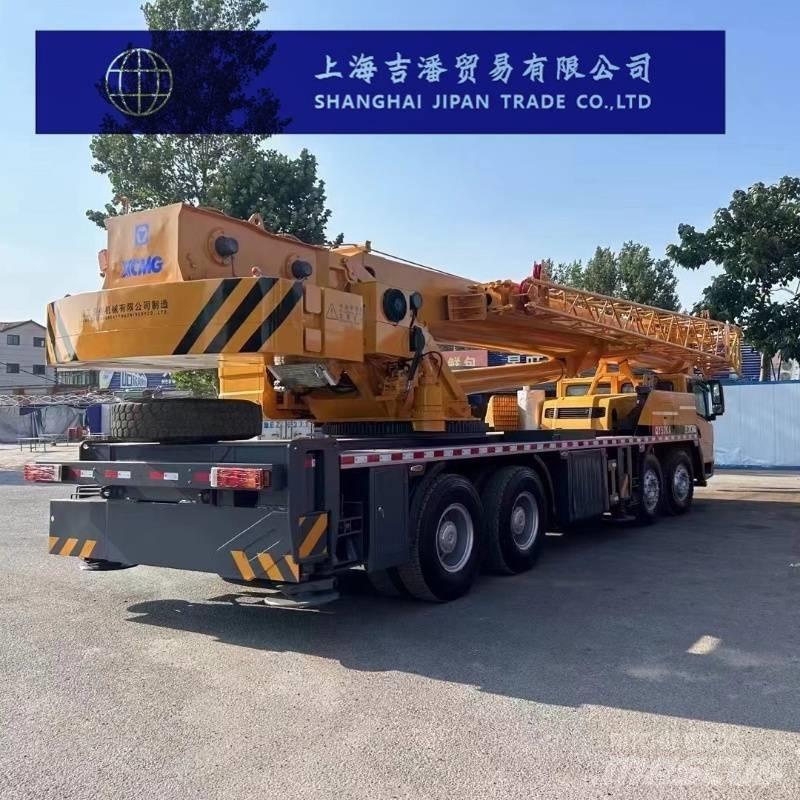

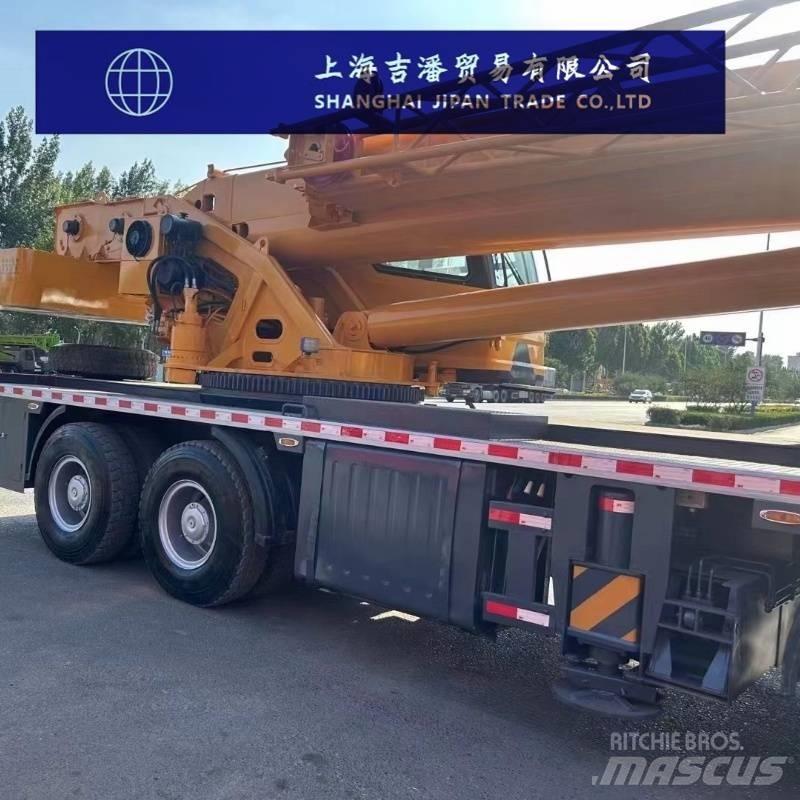

XCMG QY 50 KA
不含增值稅價格
列印
INFO
產品類別
全路面起重機/吊車
品牌/ 型號
XCMG QY 50 KA
出廠年份
2021
使用時數
2000 h
國家
中國
一般級別
1
2
3
4
5
Mascus產品ID碼
5EFFDCE7
定價
幣別選擇
詳細資料
內部庫存號
1
最新檢驗紀錄
2025-07-10
出廠年份/序號
1
前擁有者數量
1
總重
58000 kg 公斤
最大舉升能力
50000 ton 英噸
註冊編號
1
吊臂末端最大揚程能力
50000 ton 英噸
最小懸臂長度
14 m 公尺
排放級數
Stage V
吊臂長度
16 m 公尺
最小動臂
3 m 公尺
仰臂
15 m 公尺
起重機吊臂長度
15 m 公尺
最大舉升高度
44 m 公尺
起重機吊鉤高度- 水平臂
15 m 公尺
起重機吊鉤高度- 仰臂
14 m 公尺
升引擎/發動機
Benz
較高時數
857 h
起重機類型
液壓臂
出廠顏色
Original
平衡重錘
14000
載重引擎/發動機
Original
發動機制造商
Original
運輸尺寸(長x寬x高)
12680 x 2500 x 3400 mm 公釐
載架類型
輪式
狀況/保固
Good Condition
輪胎品牌
米其林
前輪胎剩餘量
98
後輪胎剩餘量
2
生產國
中國
交貨條件
FCA, FOB, CIF, EXW
認證
EPA, CE
附屬裝置
Fly Jib,Hook,Counter Weight,ETC.
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
配件
吊鉤組
其他資料
Detailed parameters of XCMG QY50KA truck crane
Dimensional parameters
The overall length of the machine is 13,770mm
Overall width of the machine: 2800mm
Overall height of the machine: 3570mm
Wheelbase: 1470+4105+1350mm
Track: 2304/2304/2075/2075mm
Weight parameter
Total mass in driving condition: 42,000 kg
Axle load: Front axle 16,000 kg/rear axle 26,000 kg
Engine parameters
Engine type: D10.38 A - 40 / SC10E380. 1 q4 / WP10.375 E41
Rated engine power: 276/2200kW, 279/2200kW
Engine rated torque: 1500N·m/ (1100-1600) r/min, 1500N·m/1300r/min, 1480N·m/ (1200-1600) r/min
Driving parameters
Maximum driving speed: 80km/h
Minimum turning diameter: 24 meters
Minimum turning diameter of the boom head: 28.158 meters
Maximum climbing gradient: 40%
Minimum ground clearance: 327mm
Approach Angle: 17°
Departure Angle: 11°
Braking distance: ≤10 meters
Fuel consumption per 100 kilometers: 42 liters
Main performance parameters
Maximum rated total lifting capacity: 50 tons
Minimum rated amplitude: 3m
The maximum lifting moment of the basic boom is 1822kN·m
The turning radius at the tail of the turntable: 3482mm
Outrigger parameters
Longitudinal: 5.91m
Horizontal: 6.9m (4.7m)
Crane boom parameters
Main arm length: 11.3-42.7 meters
Auxiliary arm length: 9.2m or 16m
The maximum lifting height of the basic boom is 11.5 meters
The maximum lifting height of the longest main boom is 42.7 meters
The maximum lifting height of the longest main boom and auxiliary boom is 57.7 meters
Working speed parameter
Lifting speed - Main lifting mechanism: 85m/min when fully loaded, 130m/min when unloaded
Outrigger retraction and release - horizontal (simultaneously) : 20 seconds
