Grove GMK4070

不含增值稅價格

Compnay LOGO
Images11

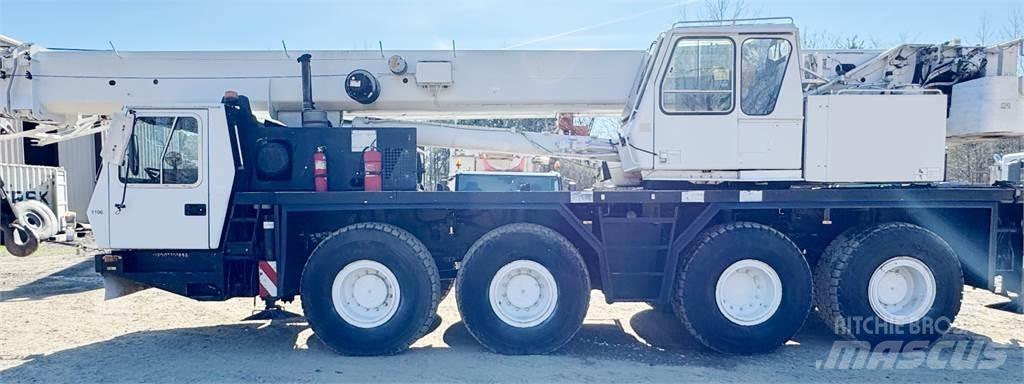

Grove GMK4070 全路面起重機/吊車
Grove GMK4070 全路面起重機/吊車
Grove GMK4070 全路面起重機/吊車
Favorite我的最愛
share分享
Save search儲存搜尋
列印

INFO

產品類別
全路面起重機/吊車
品牌/ 型號
Grove GMK4070
出廠年份
1999
機械所在位置（請填城市名，例如台北..等）
Arkansas, USA, Arkansas
國家
美國
一般級別
1
2
3
4
5
Mascus產品ID碼
E9AF26A9

定價

幣別選擇

詳細資料

內部庫存號
969
最大舉升能力
85000 kg 公斤
最大舉升高度
3810 cm 公分
附屬裝置
https://freecranespecs.com/Grove/GMK4070
其他資料

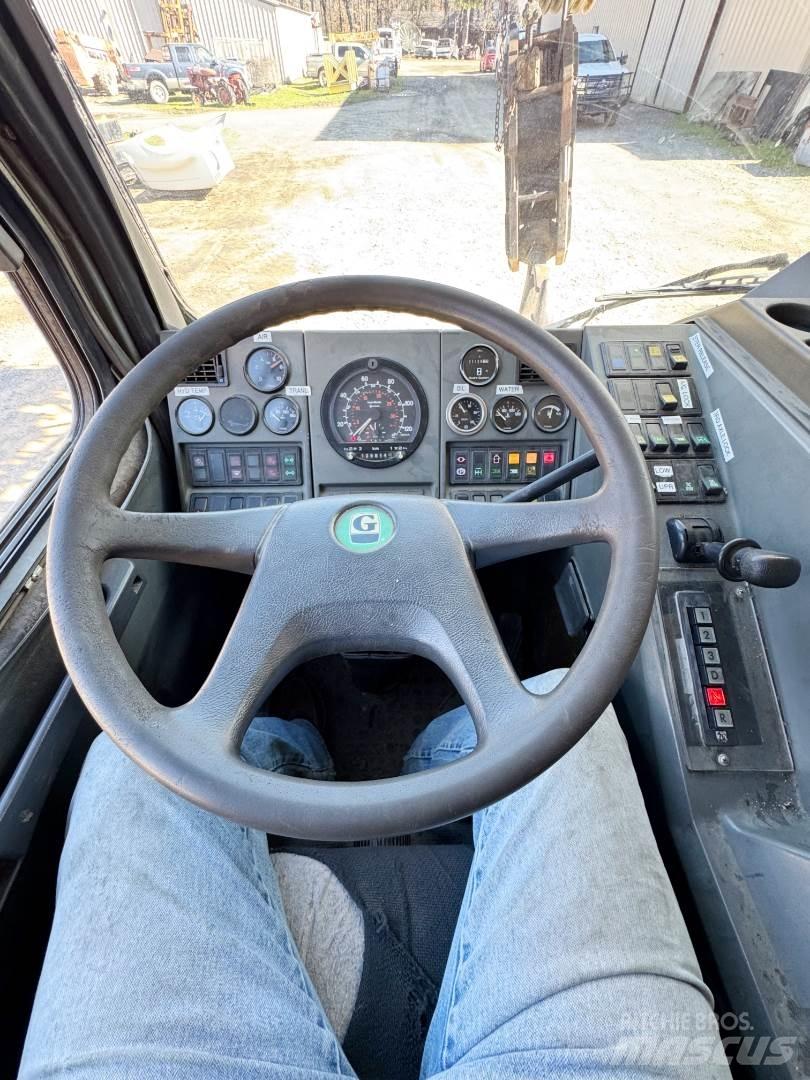

1999 Grove GMK4070, 85 Ton, All Terrain Crane; CranesList ID: 969 38-125’ Five Section Full Power Boom with patented TWIN-LOCK boom pinning system with Auxiliary Lifting Sheave 32.8'- 52' hydraulic off-settable lattice Swing Away Extension (Jib). Offsettable at  0°, 16°, 30°), Main and Auxiliary Winches with 19 mm Wire Rope Drum Rotation Indicator, EKS3 Load Moment Indicator (LMI) and independent anti-two block system with audio visual warning and control lever lock-out. These systems provide electronic display of boom angle length, radius, tip height, relative load moment,maximum permissible load, load indication, and warning of impending two-block condition with lock-out hoist function, Control System: Stepless control of all crane movements using control levers with automatic reset to zero Hook Ball Three Sheave Hook Block 29,500# Total Counterweights with Hydraulic Removal removal system controlled from the superstructure cab All-aluminum constructed Operator's cab:  full vision, safety glass, adjustable operator's seat with hydraulic suspension, engine-independent heater. Armrest-integrated crane controls. Ergonomically arranged instrumentation and crane operating controls. Drive/steer controls 8.3' wide Grove Two-man Carrier Cab, Aluminium, 2-man-design, safety glass, driver and passenger seat with hydraulic suspension, engine-dependent hot water heater. Complete instrumentation and driving controls, 8 x 6 x 8 Drive/Steer Carrier Mercedes-Benz Eight Cylinder Water Cooled, Turbocharged, Diesel Engine - Rebuilt on 5.2020 with only 2,765 Hours since the rebuild - Engine rebuilt in 2020 with 19,250 hours), ZF Automatic Transmission, Front and Rear Tires: 14.00 R25 Grove exclusive MEGATRAK Suspension Outriggers: 4 double hydraulic telescoping beams with vertical cylinders and outrigger pads. Independent horizontal and vertical movement control on each side of the carrier and from the crane operator's cab. Sight level gauge. This retail fleet crane is used daily and is fleet maintained Certified, ... IN ARKANSAS! 顯示更多

Craneslist

3350 E. 7th ST #512 90804 Long Beach California 美國
