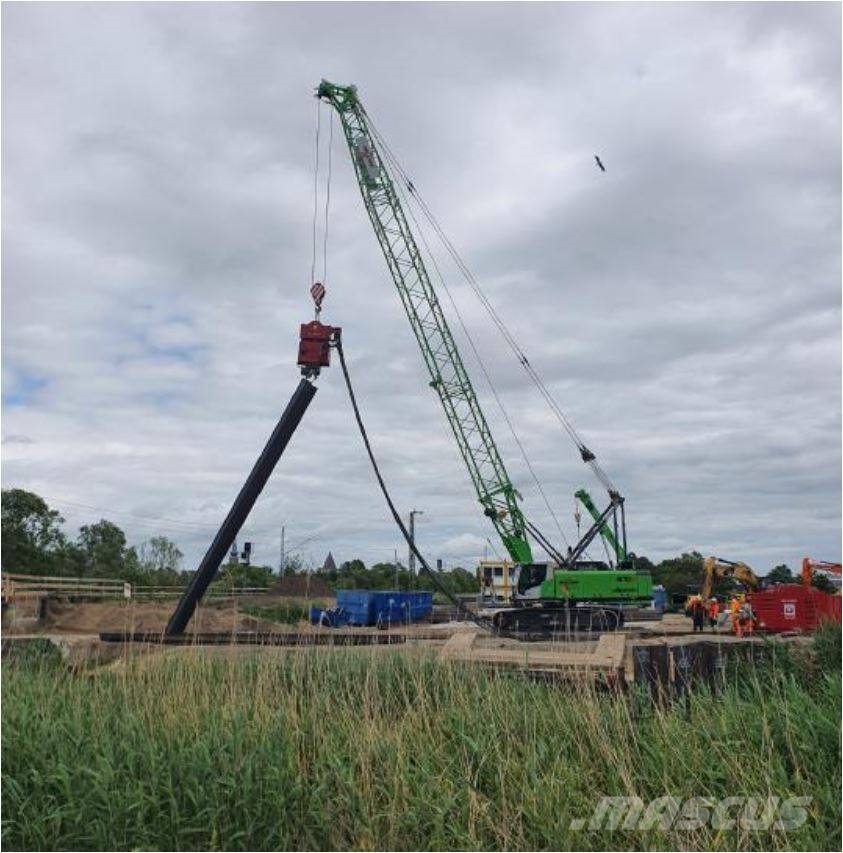

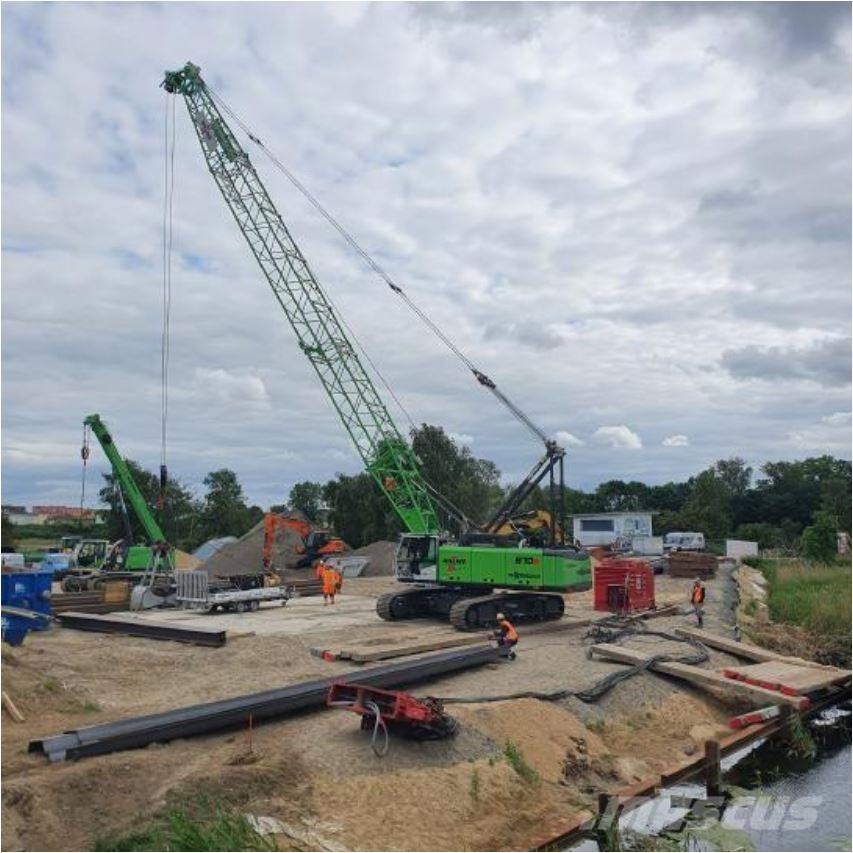

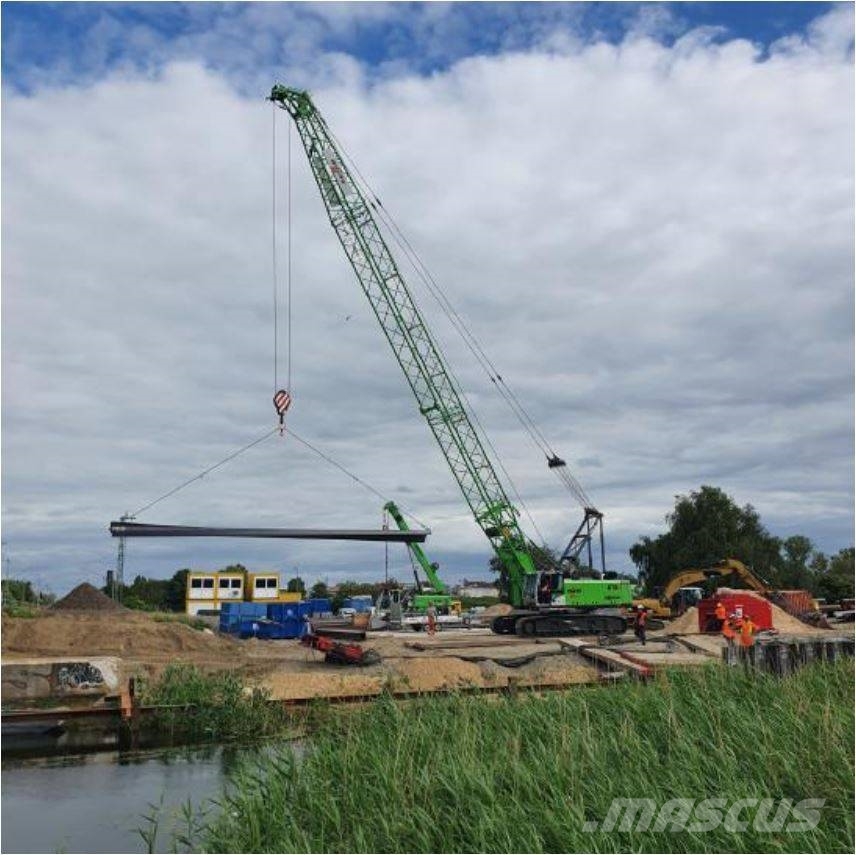

Sennebogen 670HD R Serie E

請向賣家詢價
請向賣家詢價
Sennebogen 670HD R Serie E

的基本資料

產品類別履帶式起重機
品牌/ 型號Sennebogen 670HD R Serie E
出廠年份2022
額外選項可租用
機械所在位置（請填城市名，例如台北..等）Zeestow、Brandenburg
國家
Mascus產品ID碼087F4812
+ 顯示更多細節

定價

不含增值稅價格請向賣家詢價

詳細資料

吊臂種類桁架
等級(最小1-最大5)
出廠年份/序號10597
售後服務紀錄有
總重68,000 kg 公斤
最大舉升能力72 t 噸
排放級數Stage V / Tier IV Final
吊臂長度56 m 公尺
起重機吊臂長度57 m 公尺
仰臂18 m 公尺
最大舉升高度57 m 公尺
起重機吊鉤高度- 水平臂58 m 公尺
起重機吊鉤高度- 仰臂18 m 公尺
起重機類型固定臂
出廠顏色RAL 6018 grün
平衡重錘22000
發動機制造商Cummins Dieselmotor QSB 4.5, 129 kW/2200min-1, Emissionen gem. US EPA Tier 4 final/EU Stufe IV, wassergekühlt, inklusive elektrisch beheizbarem Wasserabscheider mit Kraftstoffvorfilter 24 V
運輸尺寸（長x寬x高）13061x3000x3453
mm 公釐
載架類型履帶式
生產國德國
交貨條件FCA
認證CE
附屬裝置Elektronische Lastmomentbegrenzung LMB inkl. Lastgewichtsanzeige über die elektronische Lastmomentbegrenzung, inkl. Programm und Eventrecorder, Aufzeichnung von Informationen aus der Überlastsicherung.

Kranabnahme und LMB-Programmierung für folgende Konfigurationen in Verbindung mit Unterwagen T41/380:
- Ballast 7,0t + Unterwagenballast 4,0t; Spurbreite 3,8 m, 3,0 m und 2,3 m
- 6,5 m Klappspitze; Ballast 7,0t + Unterwagenballast 4,0t; Spurbreite 3,8 m
- 6,5 m Verlängerung für Spitze; Ballast 7,0t + Unterwagenballast 4,0t; Spurbreite 3,8 m
- Schnabel 3,5t
其他資料SENNEBOGEN 670 HD - fully hydraulic rope excavator
Series E

- Crawler undercarriage hydraulically extendable
- Cummins engine X12, 321kW/1800min-1, exhaust emissions
according to Regulation (EU) 2016/1628 Stage V / US EPA Tier 4 final,
watercooled including electrically heated water separator
with fuel prefilter 24V and pre-cleaner for air filter
- Diesel particulate filter (DPF)
- Automatic idle speed stop for diesel engine
- Eco-mode for diesel engine

- SENNEBOGEN MAXCAB - cab with sliding door
- Wiper and washer system for front and roof window
- Heating- Climateautomatic with central control elements
- SENNEBOGEN control & diagnostic system SENCON
- Lighting system:
2 lights integrated in the front side of the cab roof
1 LED headlight (24V/50W) on the upper carriage at the right side
- Camera system - base package with 2 cameras
includes 1 colour monitor 7'', monitor with 4-way split,
up to 4 cameras expandable, 2 cameras with 115° field viewing
angle for rear view camera and right side of the machine
- efficient 3-circuit hydraulic system
- Powerful slew drive with two slewing gears, slew free-wheel
- Counterweight 22 tons
- Tool kit

IMPORTANT INFORMATION
Assembly and commissioning of machines that are either large, stationary, specialised or delivered in single components should be undertaken by professionals of SENNEBOGEN.
SENNEBOGEN does not assume liability for problems which are caused by inappropriate assembly or commissioning as well as modifications performed by non-professionals, unauthorized personnel or companies.

Hydraulically extendable undercarriage T87/390 with B7 crawlers
and hydraulic wedging, track length 6000mm

Maintenance-free B7 track (58 track shoes) with 700mm
triple-bar track shoes, canted
for R43/400, R44D/380, R44/400, T83/390, T87/390

SENNEBOGEN MAXCAB operator's cab with sliding door incl. sliding window, resiliently mounted, tinted safety glass, tiltable front window, skylight, wiper/washer system for front window and skylight, Radio in preparation with aerial and loudspeakers, 2 lights integrated in the front of the roof, automatic air condition with fresh air and circulation air filters.

Air suspended operator's seat with lumbar support, seat heating and headrest for driver´s seat

2 inch seat belt - standard

Sun protection for skylight, only for MAXCAB

Radio with USB port, MP3 and Bluetooth

Grated step on side of cab (foldable and removable)

Standard lubricants for operation range
between -20°C and +40°C, for diesel machines
Information: hydraulic oil type needs to be defined separately

Hydraulic oil filling with Shell Spirax S4 TXM for operating temperatures up to app. -10°C

SENNEBOGEN Hydro-Clean:
Hydraulic micro filter system with water absorption contamination indicator (higher oil purity and extended oil service life), equipment recommended especially when biodegradable oil is used

2 pcs. hand fire extinguisher, type PD6

Counterweight lowering system via A-frame, including suspension for counterweight loading

Automatic Pinion lubrication for slewing gear, lubrication pump with integrated control unit, with special lubricant and pinion lubrication system

Automatic central lubrication for:
- slewing ring path
- pivot point boom foot

Crane free-fall winch, line pull 200kN with special grooving (system Lebus),
rope diameter 28mm, low-maintenance (rear winch 1) (instead of 160kN).

Crane free-fall winch, line pull 200kN with special grooving (system Lebus),
rope diameter 28mm, low-maintenance (front winch 2) (instead of 160kN).

Tag line winch 18kN fully hydraulic with deflection sheave including rope and rope lock, with additional control (pull force adjustment/free wheel) of tag line winch

1 rope roller guide for crane free-fall winch 200kN

ROPE EXCAVATOR FUNCTIONS

Combilink - Individual switching of the winch from power load lowering to free fall, for rear winch 1
